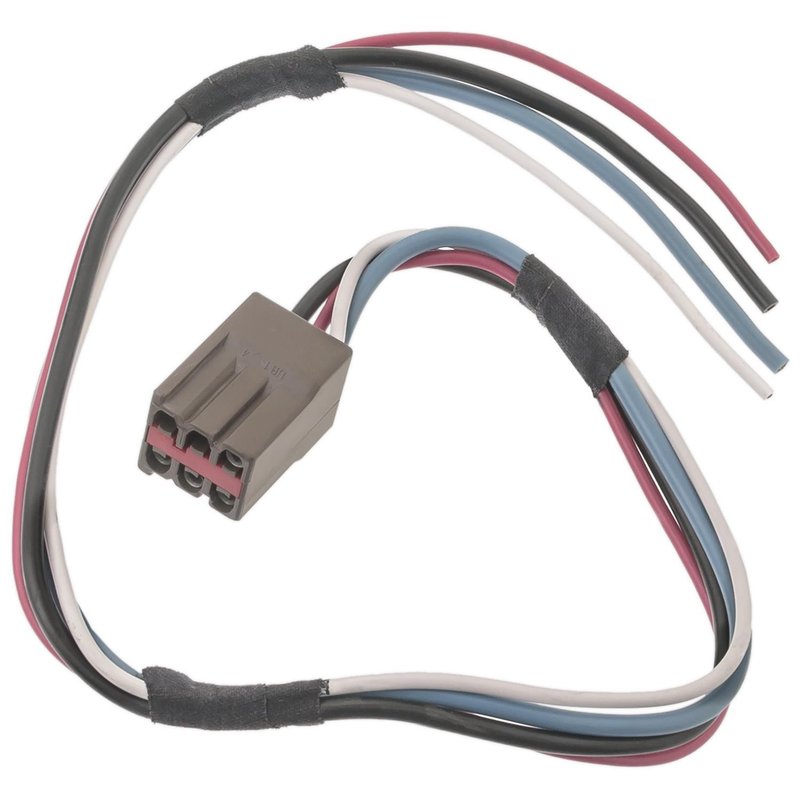

Standard Ignition TC507 Trailer Brake System Connector

Trailer Brake Connector for Ford Applications

Standard Ignition TC507 is a trailer brake system connector built for Ford truck, van, and SUV applications that use a 4-wire rectangular connection. It is designed with a male connector body, female bullet terminals, and high-grade materials for consistent electrical contact and dependable service.

Compatible With 1994-2001 Ford F-150, 1994-1999 Ford F-250, 1994-1997 Ford F-350, 1997-2001 Ford Expedition, and other listed Ford applications, TC507 supports direct replacement needs where the original trailer brake connector has failed or worn out.

Key Features

• Standard Ignition TC507 trailer brake system connector
• Rectangular connector shape for OE-style fitment
• Male connector with female bullet terminals
• 4-terminal, 4-wire configuration
• Built with durable materials for stable electrical performance
• Designed for Ford trailer brake connector replacement applications

Detailed Description

The TC507 is an electrical connector for trailer brake system service, engineered to restore a secure connection in vehicles that rely on a 4-wire rectangular plug. Standard Ignition focuses on precision fit and durable construction, making this connector a practical choice when diagnosing intermittent trailer brake signal loss, damaged terminals, or corrosion at the connector interface. This part cross-references 47705 and TC3255 for the same application.

Fits 2001 Ford Excursion, N/A; Fits 1997-2001 Ford Expedition, N/A; Fits 1994-2001 Ford F-150, N/A; Fits 1999-2001 Ford F-250 Super Duty, N/A; Fits 1999-2001 Ford F-350 Super Duty, N/A; Fits 1994-1999 Ford F-250, N/A; Fits 1994-1998 Ford E-150 Econoline, N/A; Fits 1994-1998 Ford E-150 Econoline Club Wagon, N/A; Fits 1994-1998 Ford E-250 Econoline, N/A; Fits 1994-1998 Ford E-350 Econoline, N/A; Fits 1994-1998 Ford E-350 Econoline Club Wagon, N/A; Fits 1994-1997 Ford F-350, N/A; Fits 1995 Ford Crown Victoria, N/A.

Common Issues It Can Solve

• Trailer brake connector damage from heat, vibration, or age
• Intermittent trailer brake electrical connection
• Corroded or loose terminal contact at the plug
• Broken connector housing on Ford towing applications
• Loss of continuity in the trailer brake circuit

Installation Notes and Tips

Verify the connector shape, terminal style, and wire count against the original part before installation. Inspect the harness for corrosion, damaged insulation, or pushed-out terminals, and confirm the trailer brake circuit is clean and secure before reconnecting.

Quality Assurance

Standard Ignition trailer connectors are built with a robust design and high-grade materials, backed by decades of electrical component development focused on technician needs and OE failure correction.
