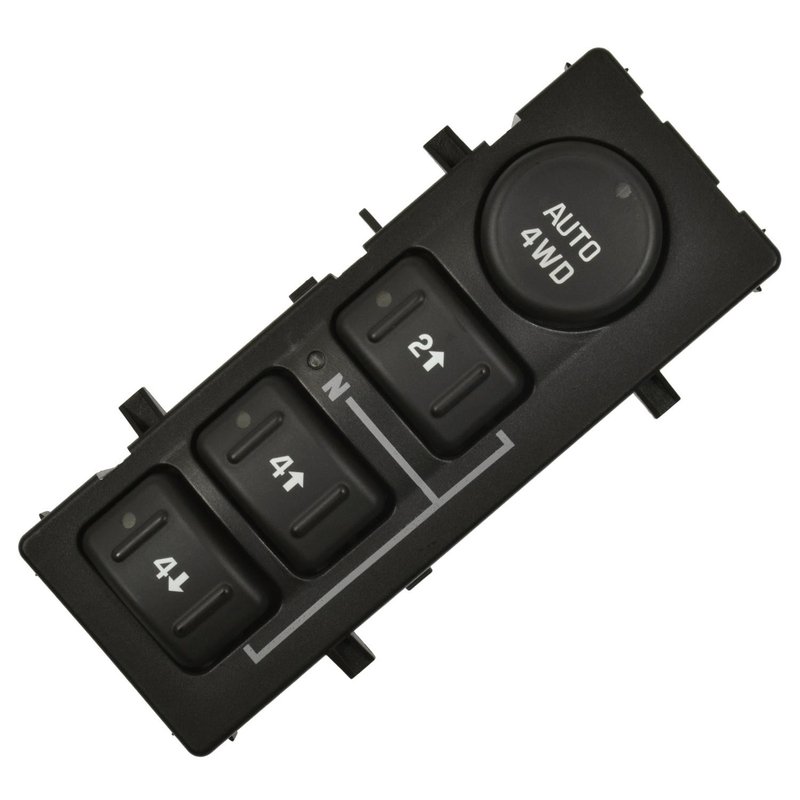

Standard Ignition TCA-47 4WD Switch

Reliable 4WD Switch for Select GM Trucks and SUVs

The Standard Ignition 4WD Switch (Part Number TCA-47) is designed to provide dependable control for four-wheel drive systems in various Cadillac, Chevrolet, and GMC vehicles. This black plastic switch features a durable design with precise connector and terminal configurations to ensure seamless integration and operation.

Key Features of Standard Ignition 4WD Switch TCA-47

• Color: Black plastic finish for durability and corrosion resistance
• Connector Gender: Female; female with two rectangular connectors
• Terminal Gender: Male blade terminals, 12 in total for secure electrical connections
• Connector Quantity: 2 connectors designed for easy plug-in installation
• Compatible with multiple GM models including Chevrolet Silverado 1500, GMC Sierra 1500, Cadillac Escalade, and more

Detailed Description and Specifications

The Standard Ignition 4WD Switch TCA-47 is engineered to meet OEM specifications for electrical, lighting, and body control systems. Its black plastic finish offers resistance to wear and environmental factors, while the rectangular female connectors and male blade terminals provide reliable electrical contact. With 12 male terminals, this switch supports complex wiring harnesses typical in four-wheel drive systems. The switch is compatible with a range of GM vehicles such as the Chevrolet Avalanche 1500 and 2500, GMC Yukon XL 1500, and Cadillac Escalade, ensuring proper fitment and function.

Common Applications and Problem Resolution

• Restores 4WD system control in Chevrolet Silverado 1500 and GMC Sierra 1500
• Replaces faulty or worn 4WD switches causing intermittent or no engagement
• Solves electrical connection issues related to damaged terminals or connectors
• Addresses switch failure symptoms like dashboard indicator malfunctions
• Ensures consistent operation of 4WD modes in Cadillac Escalade and Tahoe models

Installation Notes and Tips

• Verify vehicle compatibility with the Standard Ignition TCA-47 before installation
• Disconnect the battery to prevent electrical shorts during replacement
• Carefully disconnect the female rectangular connectors and note terminal positions
• Ensure all 12 male blade terminals are properly seated for secure connections
• Test 4WD system operation after installation to confirm proper switch function

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The 4WD Switch TCA-47 undergoes rigorous quality control testing to maintain consistent electrical and mechanical function. Warranty coverage details should be confirmed with the product documentation or distributor, typically offering protection against manufacturing defects.
