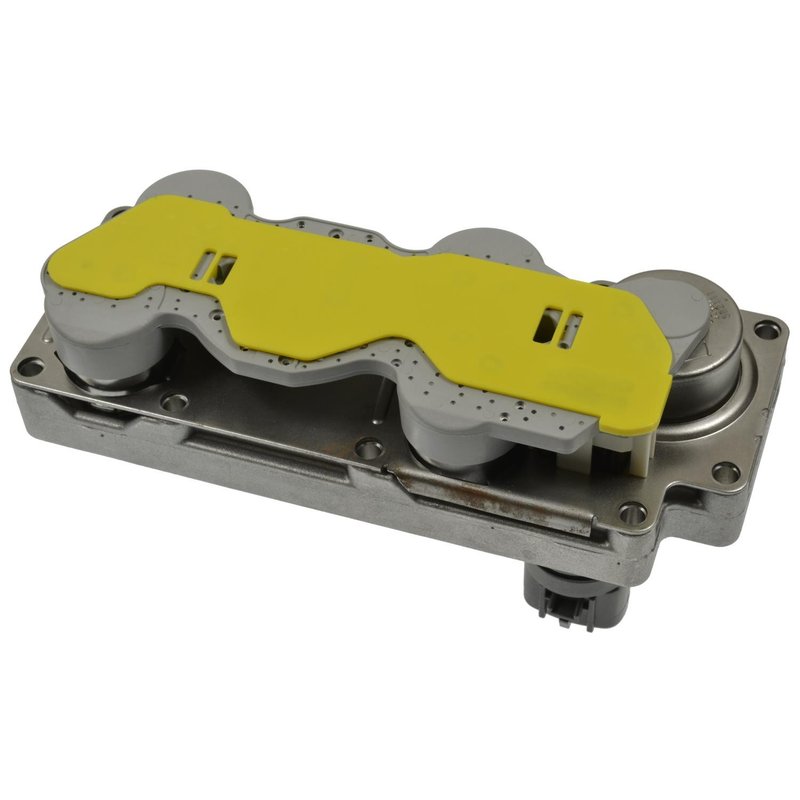

Standard Ignition TCS114 Automatic Transmission Control Solenoid

Automatic Transmission Control Solenoid for Ford and Lincoln

Standard Ignition TCS114 is an automatic transmission control solenoid built for Ford and Lincoln applications that use a transmission solenoid pack. It is engineered with OE-style resistance and inductance, a stainless steel filter screen, and a precision-ground pintle for consistent fluid control.

Compatible with select Ford F-150, F-250 Super Duty, F-350 Super Duty, Expedition, Excursion, E-Series vans, and Lincoln Navigator models, this solenoid supports accurate valve actuation in automatic transmissions. The TCS114 is a direct-fit service part for common transmission control concerns on these platforms.

Key Features

• Standard Ignition TCS114 automatic transmission control solenoid
• Stainless steel filter screen helps keep contamination away from valve components
• 100% copper winding for positive valve actuation on command
• Resistance and inductance matched to OE specifications for proper fit, form, and function
• Precision-ground pintle moves freely to block or vent fluid pressure as needed
• Female oval connector with 9 male pin terminals

Detailed Description

The TCS114 is built for automatic transmission control in Ford and Lincoln vehicles that use a solenoid pack arrangement. Standard Ignition uses OE-matched electrical characteristics and a precision pintle design to help maintain consistent hydraulic response inside the transmission. This part cross-references Dorman OE Solutions 609-023 for the same application.

Fits 2013-2017 Lincoln Navigator, N/A; Fits 1999-2004 Lincoln Navigator, N/A; Fits 2000-2005 Ford Excursion, N/A; Fits 2003-2004 Ford E-250, N/A; Fits 2003-2004 Ford E-350 Club Wagon, N/A; Fits 2004 Ford E-350 Super Duty, N/A; Fits 1999 Ford E-350 Super Duty, N/A; Fits 2004 Ford F-150 Heritage, N/A; Fits 1999-2004 Ford F-250 Super Duty, N/A; Fits 1999-2004 Ford F-350 Super Duty, N/A; Fits 2000-2003 Ford E-350 Super Duty, N/A; Fits 1999-2003 Ford F-150, N/A; Fits 2002-2003 Lincoln Blackwood, N/A; Fits 1999-2002 Ford E-250 Econoline, N/A; Fits 1998-2002 Ford E-350 Econoline Club Wagon, N/A; Fits 1999-2002 Ford Expedition, N/A; Fits 1999-2000 Ford E-350 Econoline, N/A; Fits 1999 Ford F-250, N/A.

What It Helps Address

• Harsh or delayed automatic transmission shifting
• Transmission control issues caused by contaminated valve components
• Erratic fluid pressure control inside the solenoid pack
• Electrical mismatch concerns when replacing an OE-style solenoid
• Driveability problems tied to worn or sticking transmission solenoids

Installation Notes and Tips

Verify connector style, terminal count, and transmission application before installation. The TCS114 uses a female oval connector with 9 male pin terminals, so matching the electrical interface is important for proper service. Confirm the vehicle’s transmission solenoid pack configuration and follow the manufacturer service procedure for diagnosis and replacement.

Quality Assurance

Standard Ignition builds this solenoid with OE-matched resistance and inductance, copper winding, and a stainless steel filter screen to support reliable transmission control performance. The part number TCS114 is also listed under Standard Ignition TCS37 for reference.
