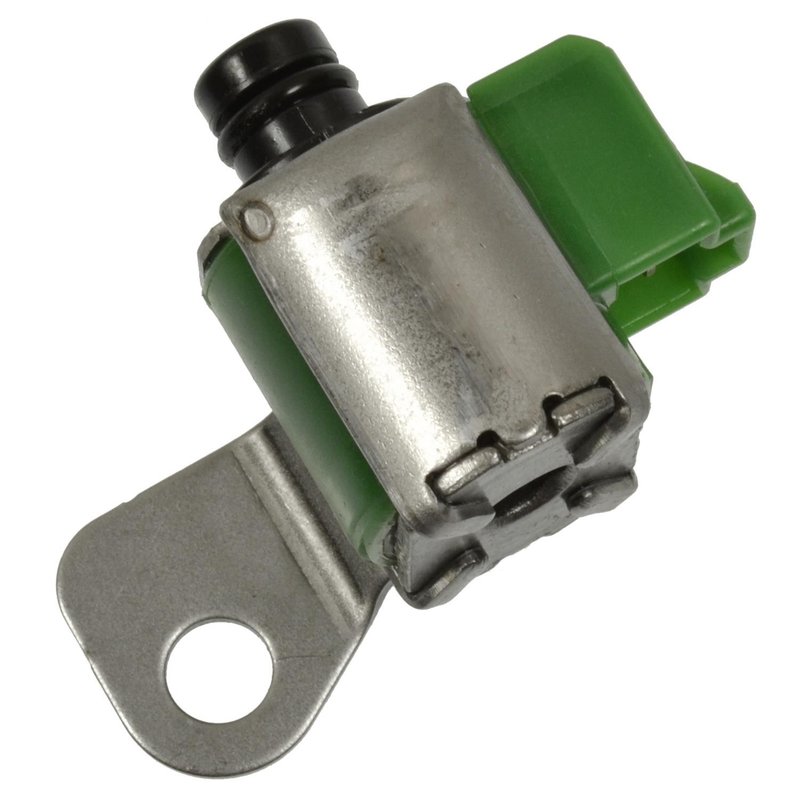

Standard Ignition TCS117 Automatic Transmission Control Solenoid
| Brand | Standard Ignition TCS117 |
|---|---|
| Attachment Method | Push On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Solenoid |
| Gaskets Included | Yes |
| Hardware Included | No |
| Material | Metal, Plastic |
| Mounting Bracket(s) Included | Yes |
| Notes | Includes Bracket |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Toyota · 12 vehicles |
Bolt-on installation. Includes a gasket for a straightforward replacement.
Metal and plastic construction. Combines durability with a lightweight design.
Solenoid and gasket. A complete transmission control solenoid assembly.
Cross-references Standard Ignition TCS40, Standard Ignition TCS53 and Standard Ignition TCS117 for the same application. See all 5.
Automatic Transmission Control Solenoid for Toyota
Standard Ignition TCS117 is an automatic transmission control solenoid with a bolt-on design, rectangular female connector, and male spade terminal. It includes the solenoid and gasket for service on select Toyota Corolla and Toyota Matrix applications.
Key Features
- Automatic transmission control solenoid for transmission service
- Bolt-on attachment method with one mounting hole
- Rectangular 1-connector design with female connector and male terminal
- Metal and plastic construction
- Gasket included for sealing at installation
- Direct replacement for Toyota Corolla and Toyota Matrix Solenoid No. 2 applications
Application Details
Compatible with 2003-2008 Toyota Corolla, Solenoid No. 2, and 2003-2008 Toyota Matrix, Solenoid No. 2. Standard Ignition TCS117 is built for transmission control service where a failed solenoid can affect shifting performance and transmission operation. This part cross-references 3525012020 and TCS660 for the same application.
What It Helps Address
- Harsh, delayed, or inconsistent shifting
- Transmission fault codes related to solenoid operation
- Loss of proper hydraulic control inside the transmission
- Driveability concerns tied to Solenoid No. 2 failure
- Service needs on 2003-2008 Toyota Corolla and Toyota Matrix transmission systems
Installation Notes and Tips
Verify the vehicle application and transmission position before installation. TCS117 uses a bolt-on mounting style, a single rectangular connector, and a spade terminal; confirm connector shape and terminal style match the original part. The gasket is included, while a wiring harness and mounting hardware are not included. Clean the mounting surface before installation and inspect the surrounding transmission area for wear or contamination that could affect sealing.
Quality Assurance
Standard Ignition supplies replacement electrical and transmission components for service applications. TCS117 is built as a service replacement solenoid with the listed connector, terminal, and sealing features for the specified Toyota Corolla and Toyota Matrix fitments.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2008 | Toyota | Matrix | — | N/A | Solenoid No. 2 |
| 2007 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2007 | Toyota | Matrix | — | N/A | Solenoid No. 2 |
| 2006 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2006 | Toyota | Matrix | FWD | N/A | Solenoid No. 2 |
| 2005 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2005 | Toyota | Matrix | — | N/A | Solenoid No. 2 |
| 2004 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2004 | Toyota | Matrix | — | N/A | Solenoid No. 2 |
| 2003 | Toyota | Corolla | — | N/A | Solenoid No. 2 |
| 2003 | Toyota | Matrix | — | N/A | Solenoid No. 2 |
