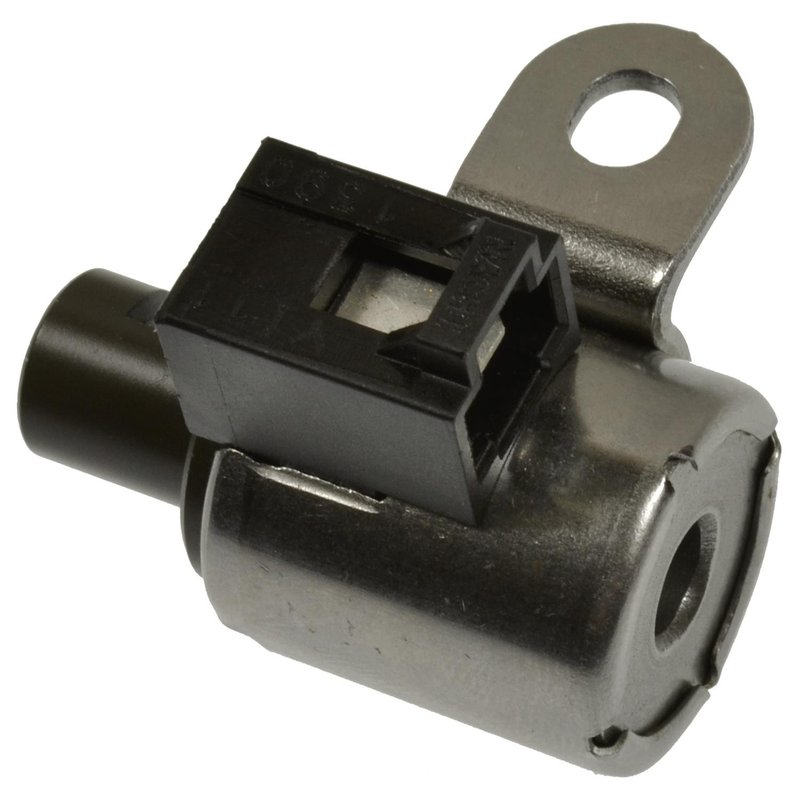

Standard Ignition TCS131 Automatic Transmission Control Solenoid
| Brand | Standard Ignition TCS131 |
|---|---|
| Attachment Method | Push On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Solenoid |
| Gaskets Included | No |
| Hardware Included | No |
| Material | Metal |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Scion and Toyota · 23 vehicles |
Bolt-on installation. Grounded-base solenoid with a rectangular connector for straightforward replacement.
Metal and plastic construction. Built with a grounded base and blade terminal for dependable operation.
Includes mounting bracket. Supplied as a complete solenoid assembly with one connector and one terminal.
Cross-references Standard Ignition TCS48, Standard Ignition TCS54 and Standard Ignition TCS131 for the same application. See all 5.
Automatic Transmission Control Solenoid
Standard Ignition TCS131 is an automatic transmission control solenoid built for specific Toyota and Scion applications. It features a female connector, male blade terminal, bolt-on attachment, and a rectangular 1-connector design for direct replacement service.
Compatible with select 2000-2006 Toyota and Scion models, including Toyota Corolla, Echo, Celica, Matrix, and Scion xA and xB, this transmission control solenoid is used in 3-way solenoid control applications identified as Solenoid No. 2 on listed vehicles.
Key Features
- Standard Ignition TCS131 automatic transmission control solenoid
- Female connector with rectangular connector shape
- Male blade terminal with grounded base
- Bolt-on attachment method with included mounting bracket(s)
- Metal and plastic construction
- Direct-fit service part for listed Toyota and Scion applications
Detailed Description
The Standard Ignition TCS131 is a transmission control solenoid designed for vehicles using a 3-way solenoid control setup. It is specified for applications such as the Toyota Corolla, Toyota Echo, Toyota Celica, Toyota Matrix, Scion xA, and Scion xB, where it serves as Solenoid No. 2 in the transmission control system. The part number TCS131 is also cross-referenced with Standard Ignition TCS48 and TCS54 for the same application.
Built with a grounded base, one rectangular connector, and a bolt-on mounting style, this solenoid is intended to match the original service configuration on the listed vehicles. The TCS131 is a practical replacement when diagnosing transmission control concerns tied to solenoid operation in the specified Toyota and Scion platforms.
What It Helps Address
- Transmission shifting irregularities related to solenoid control
- Fault codes tied to the 3-way solenoid circuit
- Delayed or inconsistent gear engagement on listed applications
- Electrical control issues at Solenoid No. 2
- Replacement needs after solenoid wear or failure
Installation Notes
Verify the vehicle’s transmission code, connector style, and solenoid location before installation. This part uses a female connector, male blade terminal, and bolt-on mounting arrangement, and it does not include a wiring harness, gasket, or mounting hardware. Confirm the application against the vehicle service information for the exact Toyota Corolla, Echo, Celica, Matrix, Scion xA, or Scion xB fitment listed for TCS131.
Quality Assurance
Standard Ignition supplies this transmission control solenoid as an OE-style replacement part for the listed applications. The TCS131 is built to match the specified connector, mounting, and control requirements for service on select Toyota and Scion vehicles.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Scion | xA | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2006 | Scion | xB | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2006 | Toyota | Corolla | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2006 | Toyota | Matrix | AWD | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2005 | Scion | xA | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2005 | Scion | xB | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2005 | Toyota | Corolla | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2005 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2005 | Toyota | Matrix | — | N/A | Solenoid No. 2; 3 Way Solenoid |
| 2004 | Scion | xA | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2004 | Scion | xB | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2004 | Toyota | Celica | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2004 | Toyota | Corolla | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2004 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2004 | Toyota | Matrix | — | N/A | Solenoid No. 2; 3 Way Solenoid |
| 2003 | Toyota | Corolla | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2003 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2003 | Toyota | Matrix | — | N/A | Solenoid No. 2; 3 Way Solenoid |
| 2002 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2001 | Toyota | Celica | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2001 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2000 | Toyota | Celica | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
| 2000 | Toyota | Echo | — | N/A | 3 Way Solenoid Control Solenoid No. 2 |
