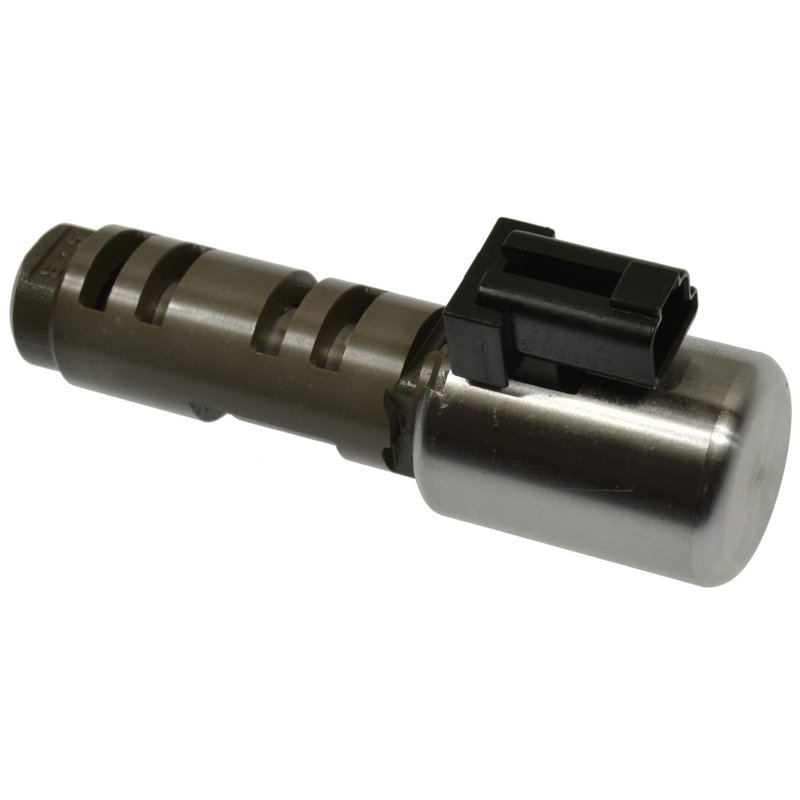

Standard Ignition TCS134 Automatic Transmission Control Solenoid

Automatic Transmission Control Solenoid for Toyota

Standard Ignition TCS134 is an automatic transmission control solenoid built for specific Toyota applications that use a clutch solenoid No. 2 or solenoid No. 2 configuration. It features a metal body, a rectangular single connector, and a 2-blade terminal layout for direct replacement service on the listed vehicles.

Compatible with Toyota Highlander, RAV4, Camry, and Solara applications, this TCS134 transmission solenoid is a focused OE-style service part for transmission control issues tied to solenoid operation. The Standard Ignition TCS134 is also cross-referenced to common replacement numbers used for the same application.

Key Features

• Automatic transmission control solenoid for Toyota transmission service
• Metal construction with a rectangular connector housing
• Female connector with male blade terminals
• Push-on attachment method for straightforward installation
• Single-solenoid, 2-terminal design
• No gasket, hardware, bracket, or wiring harness included
• Cross-references Standard Ignition TCS56 and TCS134 for the same application

Application Details

This part is used in Toyota transmission systems where the listed fitment calls for Clutch Solenoid No. 2 or Solenoid No. 2. It fits 2003 Toyota Highlander, N/A, Clutch Solenoid No.2; 2004-2005 Toyota Highlander, N/A, Solenoid No. 2; 2006-2012 Toyota RAV4, N/A, Clutch Solenoid No.2; 2006-2010 Toyota Camry, N/A, Clutch Solenoid No.2; 2005-2008 Toyota Solara, N/A, Clutch Solenoid No.2; 2007-2009 Toyota Highlander, N/A, Clutch Solenoid No.2; 2010 Toyota Highlander, N/A, Solenoid No. 2; Aisin Type; and 2011-2013 Toyota Highlander, N/A, Clutch Solenoid No.2. Use TCS134 when the vehicle’s transmission diagnosis points to the specified solenoid circuit and the connector style matches the original unit.

What It Helps Address

• Transmission shifting concerns related to solenoid control
• Diagnostic trouble codes tied to clutch solenoid No. 2 operation
• Harsh, delayed, or inconsistent gear changes linked to solenoid performance
• Electrical faults at the transmission solenoid connector
• Replacement needs for worn or failed Toyota transmission solenoids

Installation Notes

Confirm the original connector shape, terminal style, and transmission solenoid location before installation. This part uses a female rectangular connector with male blade terminals and a push-on attachment method. Because no gasket, hardware, mounting bracket, or wiring harness is included, reuse or source any required related components separately as needed for the repair.

Quality Assurance

Standard Ignition supplies this transmission control solenoid as a service replacement part for the listed Toyota applications. Verify fitment by year, model, and transmission solenoid designation before ordering. Part number TCS134 is listed with interchange references including 3522033020, TCS57, and TCS677.
