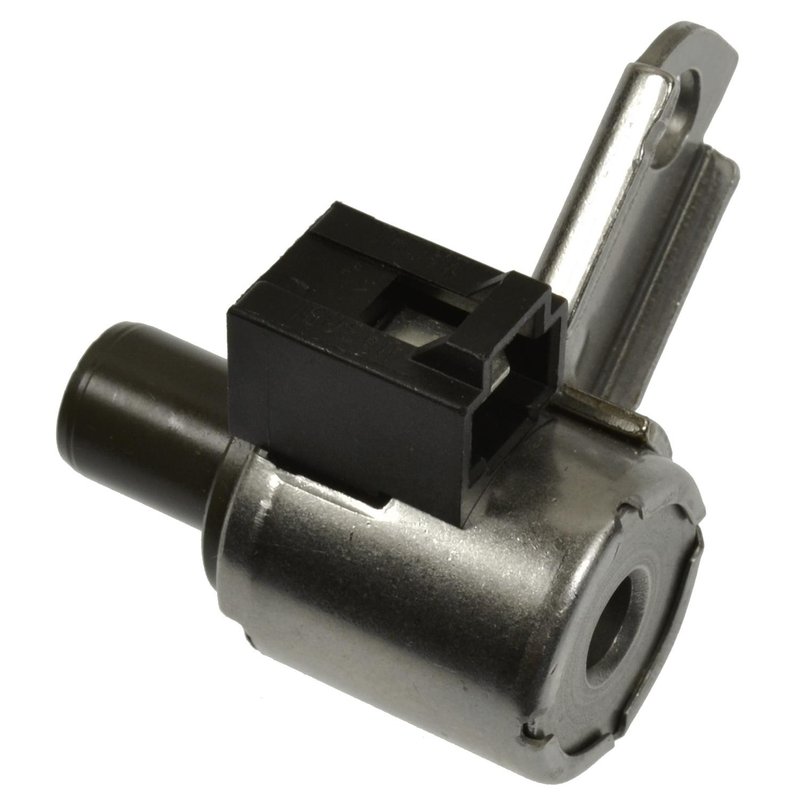

Standard Ignition TCS152 Automatic Transmission Control Solenoid
| Brand | Standard Ignition TCS152 |
|---|---|
| Attachment Method | Push On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Solenoid |
| Gaskets Included | No |
| Hardware Included | No |
| Material | Metal |
| Mounting Bracket(s) Included | Yes |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Toyota · 13 vehicles |
Bolt-on installation. Mounts with a single connector and bracket for a straightforward replacement.
Grounded base. Helps ensure a reliable electrical connection in the transmission system.
Metal and plastic construction. Combines durability with a lightweight, serviceable design.
Cross-references Standard Ignition TCS45, Standard Ignition TCS152 and 3523033010 for the same application. See all 5.
Automatic Transmission Control Solenoid for Toyota Applications
Standard Ignition TCS152 is an automatic transmission control solenoid built with a metal and plastic housing, a grounded base, and a rectangular female connector. It uses a bolt-on attachment method and includes a mounting bracket for a direct-fit service replacement in select Toyota vehicles.
Compatible With 2004-2007 Toyota Avalon, Highlander, RAV4, and Solara applications that call for a 3-way solenoid or Solenoid No. 1. Standard Ignition TCS152 is also cross-referenced to OE-style service part numbers used in the same applications.
Key Features
- Brand: Standard Ignition
- Part number: TCS152
- Automatic transmission control solenoid
- Female rectangular connector with male blade terminal
- Bolt-on attachment with grounded base
- Metal and plastic construction
- Mounting bracket included
- No wiring harness, gasket, or mounting hardware included
Detailed Description
The Standard Ignition TCS152 is a transmission solenoid designed for Toyota automatic transmission service where the original unit is identified as a 3-way solenoid or Solenoid No. 1. Its single-connector, single-terminal layout and bolt-on design support a straightforward replacement in the specified Avalon, Highlander, RAV4, and Solara applications. The TCS152 part number is also listed among interchange references for related service coverage.
This part cross-references Toyota service numbers 3523033010 and Standard Ignition TCS45 for the same application. Use TCS152 when the vehicle callout matches the listed transmission solenoid position and notes.
What It Helps Address
- Harsh or inconsistent transmission shifting
- Delayed gear engagement tied to solenoid control issues
- Transmission fault codes related to Solenoid No. 1
- 3-way solenoid performance problems in the listed Toyota models
- Restoration of proper hydraulic control in the automatic transmission
Installation Notes and Tips
Verify the transmission code, connector style, and service notes before installation. This TCS152 solenoid uses a female connector, male blade terminal, and one mounting hole with an included bracket; no harness is supplied. Confirm the vehicle application against the listed fitment notes for 2004-2007 Toyota Avalon, 2004-2006 Toyota Highlander, 2007 Toyota RAV4, and 2004-2006 Toyota Solara.
Quality Assurance
Standard Ignition is a recognized aftermarket source for electrical and transmission service components. TCS152 is built to match the specified Toyota transmission applications and interchange references listed for this part.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Toyota | RAV4 | 3.5L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2006 | Toyota | Avalon | — | — | N/A | Solenoid No. 1; 3 Way Solenoid |
| 2006 | Toyota | Highlander | 2.4L | L4 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2006 | Toyota | Solara | 2.4L | L4 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2006 | Toyota | Solara | 3.3L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2005 | Toyota | Avalon | — | — | N/A | Solenoid No. 1; From 1/05; 3 Way Solenoid |
| 2005 | Toyota | Highlander | 3.3L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2005 | Toyota | Highlander | 2.4L | L4 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2005 | Toyota | Solara | 2.4L | L4 | N/A | Solenoid No. 1; 3 Way Solenoid |
| 2005 | Toyota | Solara | 3.3L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2004 | Toyota | Highlander | 2.4L | L4 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2004 | Toyota | Highlander | 3.3L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
| 2004 | Toyota | Solara | 3.3L | V6 | N/A | 3 Way Solenoid, Solenoid No. 1 |
