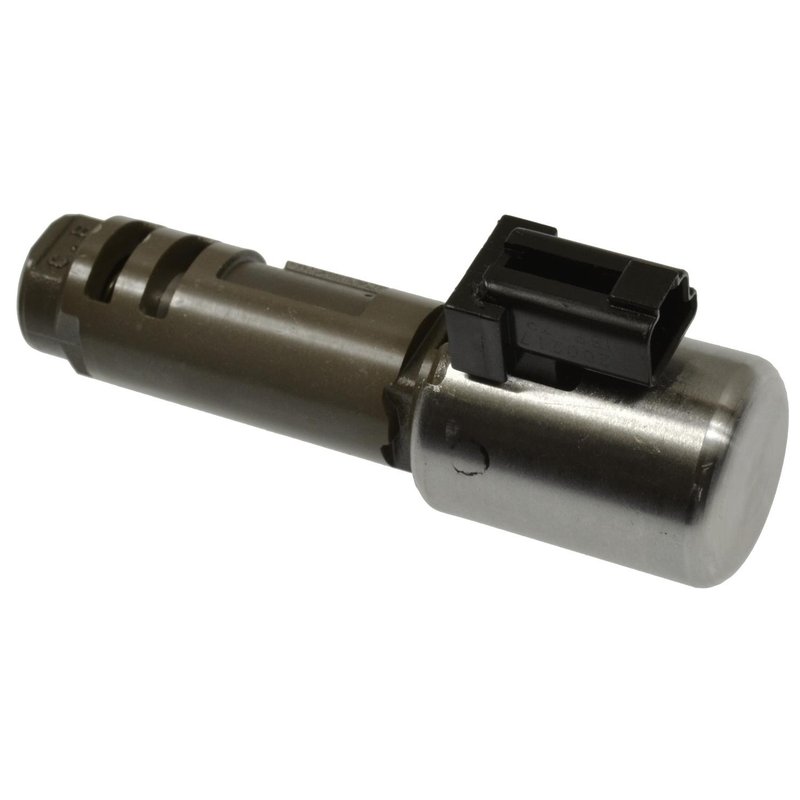

Standard Ignition TCS153 Automatic Transmission Control Solenoid
| Brand | Standard Ignition TCS153 |
|---|---|
| Attachment Method | Push On |
| Connector Gender | Female |
| Connector Shape | Rectangular |
| Contents | Solenoid |
| Gaskets Included | No |
| Hardware Included | No |
| Material | Metal |
| Mounting Bracket(s) Included | No |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Wiring Harness Included | No |
| Fits | Scion and Toyota · 25 vehicles |
Metal construction. Built for dependable transmission control performance.
Push-on connection. Simplifies installation with a single rectangular connector.
Blade terminals. Uses a 2-terminal design for secure electrical contact.
Cross-references Standard Ignition TCS76, Standard Ignition TCS153 and 3521033050 for the same application. See all 4.
Automatic Transmission Control Solenoid for Toyota and Scion
Standard Ignition TCS153 is an automatic transmission control solenoid built for specific Toyota and Scion applications. It features a female connector, male blade terminals, and a rectangular 1-connector design for direct replacement service in the transmission control circuit.
Use this Standard Ignition TCS153 when servicing shift and clutch solenoid concerns on select Toyota RAV4, Toyota Matrix, Scion xB, and Scion tC models. This part cross-references Standard Ignition TCS76 for the same application.
Key Features
- Automatic transmission control solenoid for transmission switch and solenoid service
- Female connector with rectangular 1-connector layout
- Male blade terminals with push-on attachment method
- Metal construction
- Direct-fit replacement for select Toyota and Scion vehicles
- Connector, terminal, and mounting details match the listed application requirements
Detailed Description
The TCS153 is an OE-style automatic transmission control solenoid designed for transmission control applications where precise electrical actuation is required. It uses a female connector, two male blade terminals, and a push-on attachment method, with no gasket, wiring harness, or mounting bracket included. For fitment-specific service, this part is listed for 2006-2012 Toyota RAV4, 2009-2013 Toyota Matrix, 2006 and 2007-2010 Scion tC, and 2008-2015 Scion xB. The TCS153 also cross-references 3521033050 and TCS696 for the same application.
Common Symptoms This Part May Address
- Harsh or delayed shifting
- Transmission fault codes related to shift or clutch solenoid operation
- Inconsistent gear engagement
- Transmission control issues tied to solenoid electrical failure
- Driveability concerns caused by a malfunctioning automatic transmission solenoid
Installation Notes and Tips
Verify the connector style, terminal layout, and vehicle application before installation. This part is listed for specific Toyota RAV4, Toyota Matrix, Scion xB, and Scion tC transmission applications, including notes for Solenoid No. 1, Shift Solenoid, and Clutch Solenoid No. 1 where shown. Inspect the transmission connector and related wiring for damage before replacing the solenoid, and confirm the correct OE reference for your exact build date when applicable.
Quality Assurance
Standard Ignition supplies replacement electrical and transmission components for service applications that require accurate fit and function. TCS153 is built with metal construction and application-specific connector and terminal details to support proper replacement on the listed Toyota and Scion models.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2015 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2014 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2013 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2013 | Toyota | Matrix | — | — | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2012 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2012 | Toyota | Matrix | — | — | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2012 | Toyota | RAV4 | 2.5L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2011 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2011 | Toyota | Matrix | — | — | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2011 | Toyota | RAV4 | 2.5L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2010 | Scion | tC | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2010 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2010 | Toyota | Matrix | — | — | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2010 | Toyota | RAV4 | 2.5L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2009 | Scion | tC | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2009 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2009 | Toyota | Matrix | — | — | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2009 | Toyota | RAV4 | 2.5L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2008 | Scion | tC | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2008 | Scion | xB | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2008 | Toyota | RAV4 | 2.4L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2007 | Scion | tC | — | — | N/A | Solenoid No. 1; Shift Solenoid |
| 2007 | Toyota | RAV4 | 2.4L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
| 2006 | Scion | tC | — | — | N/A | Solenoid No. 1; From 6/06 |
| 2006 | Toyota | RAV4 | 2.4L | L4 | N/A | Clutch Solenoid No.1 - Automatic Transmission Control Solenoid fitment. |
