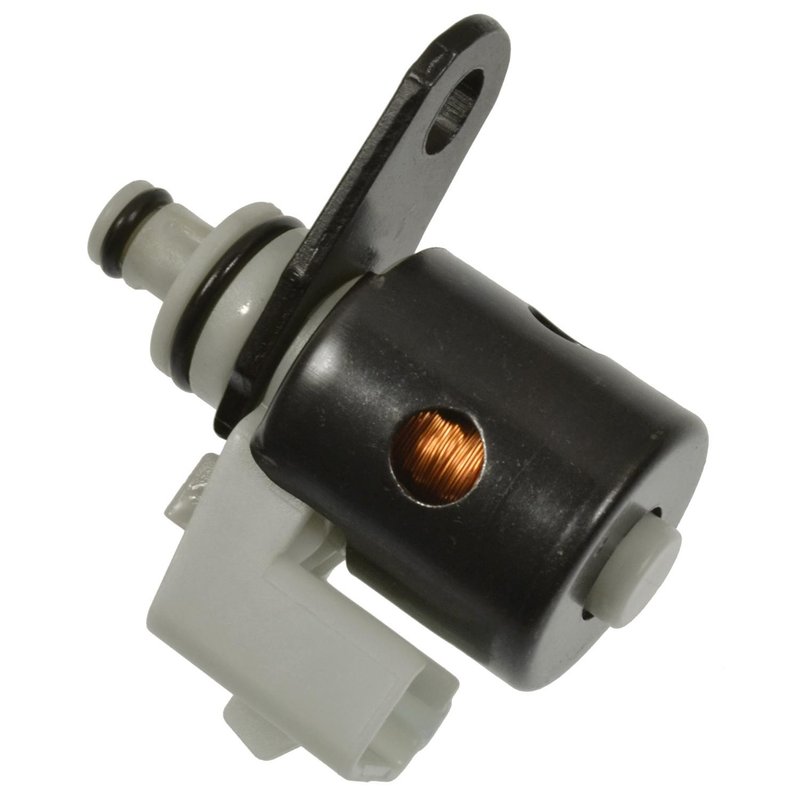

Standard Ignition TCS198 Automatic Transmission Control Solenoid

Automatic Transmission Control Solenoid for Ford and Lincoln

Standard Ignition TCS198 is an automatic transmission control solenoid built for precise fluid-pressure control in select Ford, Lincoln, and Mercury applications. It uses a stainless steel filter screen to help keep contamination away from valve components, along with a copper winding and OE-matched electrical characteristics for consistent actuation.

Compatible With 2009-2017 Ford E-350 Super Duty, 2011-2014 Ford E-150, 2011-2014 Ford E-250, 2009-2011 Ford Crown Victoria, 2010-2014 Lincoln Mark LT, 2009-2011 Lincoln Town Car, and 2009-2011 Mercury Grand Marquis. Standard Ignition TCS198 is also cross-referenced to 9L3Z7G136A and 52-0525 for the same application.

Key Features

• Stainless steel filter screen helps reduce contamination at the valve components
• 100% copper winding supports positive valve actuation on command
• Resistance and inductance matched to OE specifications for proper fit, form, and function
• Precision-ground pintle moves freely to block or vent fluid pressure
• Female rectangular connector with push-on attachment method
• Metal and plastic construction with gasket included
• Blade terminals, 2-terminal design, no wiring harness included

Detailed Description

This automatic transmission control solenoid is built for transmission hydraulic control where accurate pressure routing matters. The OE-matched electrical profile helps maintain the expected response from the transmission control system, while the precision-ground pintle is engineered to move smoothly as it opens or closes fluid passages. Standard Ignition TCS198 is a direct-fit service part for select Ford E-Series vans, Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and related applications listed above.

Common Problems This Part Addresses

• Transmission shift concerns caused by a sticking or slow-responding control solenoid
• Fluid-pressure routing issues inside the automatic transmission valve body
• Contamination-related valve operation problems
• Electrical faults tied to worn solenoid windings or connector wear
• Harsh, delayed, or inconsistent transmission operation linked to solenoid failure

Installation Notes and Tips

Verify the transmission application, connector style, and OE part number before installation. This part is for automatic transmissions only, and fitment should be matched to the vehicle’s transmission configuration. Inspect the valve body, connector, and related seals during service, and confirm the gasket is properly seated during reassembly. Standard Ignition TCS198 uses a female rectangular connector with male blade terminals and a push-on attachment method.

Quality Assurance

Standard Ignition builds this solenoid with OE-matched resistance and inductance, a copper winding, and a stainless steel filter screen to support consistent transmission control performance. The part number TCS198 is engineered to meet the fit and electrical requirements of the listed applications.
