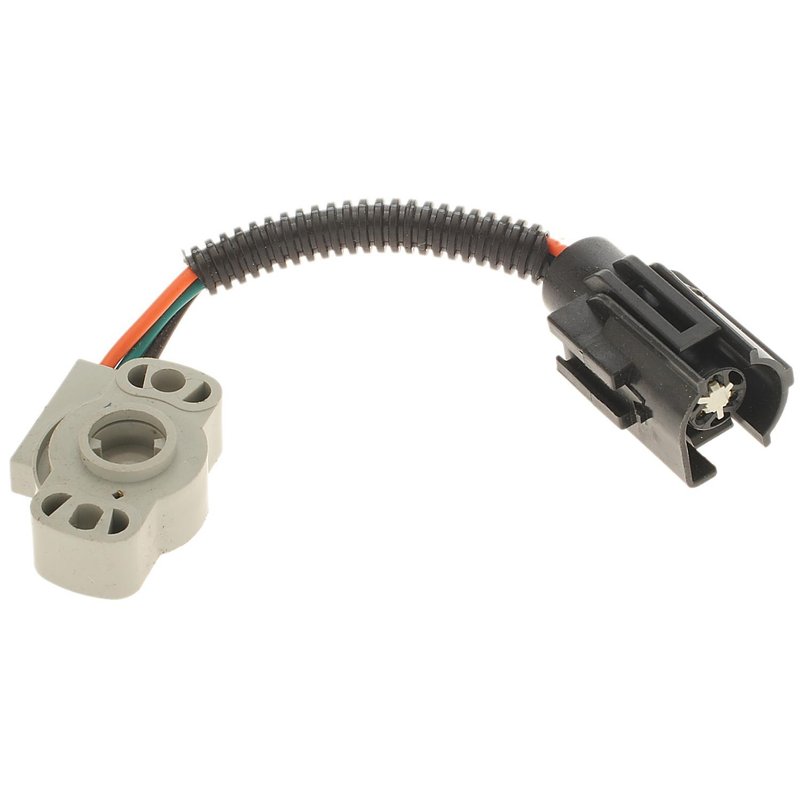

Standard Ignition TH12 Throttle Position Sensor
| Brand | Standard Ignition TH12 |
|---|---|
| Connector Gender | Male |
| Connector Type | Plug In |
| Terminal Gender | Female |
| Terminal Type | Bullet |
| Fits | Ford and Mercury · 31 vehicles |
OE-style output. Maintains specific installed output to match original equipment, not adjustable designs.
Flexible circuit design. Printed on polyimide film or ceramic substrates for stable electrical performance.
Easy installation. Integral rotor bearings and return springs simplify installation.
Cross-references AP Exhaust 38060, Dorman - HELP 14010 and Four Seasons 75429 for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for Ford and Mercury
The Standard Ignition TH12 throttle position sensor delivers a direct-fit solution for select Ford and Mercury applications from 1983-1987. It is built to maintain a specific installed output that matches OE requirements, helping restore accurate throttle signal feedback for drivability and emissions control.
Key Features
- Male connector with plug-in design for straightforward electrical connection
- 3 female bullet terminals for OE-style interface
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials help maintain low resistance over time
- Integral rotor bearings and return springs support easier installation and consistent operation
- End-of-line testing validates output voltage across thousands of data points
Product Details
Standard Ignition TH12 is engineered as a throttle position sensor for vehicles that need precise throttle angle feedback to the engine control system. By maintaining a fixed installed output rather than relying on an adjustable consolidated design, this sensor helps preserve OE-style calibration. It is a direct replacement choice for 1983-1987 Ford Ranger, 1985-1986 Ford Bronco, 1985-1986 Ford F-150, and other listed Ford and Mercury models, including 1985-1986 Mustang and Capri applications. The TH12 part number is also referenced in service cross listings for related aftermarket applications.
This part cross-references Dorman - HELP (e.g., 14010) for the same application.
Common Issues It May Address
- Erratic throttle signal output
- Hesitation during acceleration
- Rough idle caused by incorrect TPS voltage
- Check engine light related to throttle position sensor faults
- Poor throttle response from a worn sensor
Installation Notes and Tips
Verify connector style, terminal layout, and throttle body mounting before installation. The TH12 uses a male connector, one plug-in connection, and 3 female bullet terminals, so matching the electrical interface is important for proper fitment. After installation, confirm throttle voltage and idle behavior according to service specifications for the vehicle.
Quality Assurance
Standard Ignition controls the manufacturing process from component selection through finished product inspection. Each TH12 throttle position sensor is tested at the end of the line to confirm output voltage performance and support reliable operation in service.
Compatible Vehicles
- Fits 1983-1987 Ford Ranger
- Fits 1985-1986 Ford Bronco
- Fits 1985-1986 Ford E-150 Econoline
- Fits 1985-1986 Ford E-150 Econoline Club Wagon
- Fits 1985-1986 Ford E-250 Econoline
- Fits 1985-1986 Ford E-250 Econoline Club Wagon
- Fits 1985-1986 Ford E-350 Econoline
- Fits 1985-1986 Ford E-350 Econoline Club Wagon
- Fits 1985-1986 Ford F-150
- Fits 1985-1986 Ford F-250
- Fits 1985-1986 Ford F-350
- Fits 1985-1986 Ford Mustang
- Fits 1985-1986 Mercury Capri
- Fits 1985-1986 Mercury Topaz
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Ford | Ranger | — | 2.0L | L4 | N/A | — |
| 1986 | Ford | Bronco | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-150 Econoline | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-150 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-250 Econoline | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-250 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-350 Econoline | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | E-350 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | F-150 | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | F-250 | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | F-350 | — | 4.9L | L6 | N/A | — |
| 1986 | Ford | Mustang | LX | 2.3L | L4 | N/A | — |
| 1986 | Ford | Ranger | — | 2.0L | L4 | N/A | — |
| 1986 | Mercury | Capri | — | 2.3L | L4 | N/A | — |
| 1986 | Mercury | Topaz | — | 2.3L | L4 | N/A | — |
| 1985 | Ford | Bronco | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-150 Econoline | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-150 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-250 Econoline | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-250 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-350 Econoline | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | E-350 Econoline Club Wagon | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | F-150 | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | F-250 | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | F-350 | — | 4.9L | L6 | N/A | — |
| 1985 | Ford | Mustang | LX | 2.3L | L4 | N/A | — |
| 1985 | Ford | Ranger | — | 2.0L | L4 | N/A | — |
| 1985 | Mercury | Capri | — | 2.3L | L4 | N/A | — |
| 1985 | Mercury | Topaz | — | 2.3L | L4 | N/A | — |
| 1984 | Ford | Ranger | — | 2.0L | L4 | N/A | — |
| 1983 | Ford | Ranger | — | 2.0L | L4 | N/A | — |
