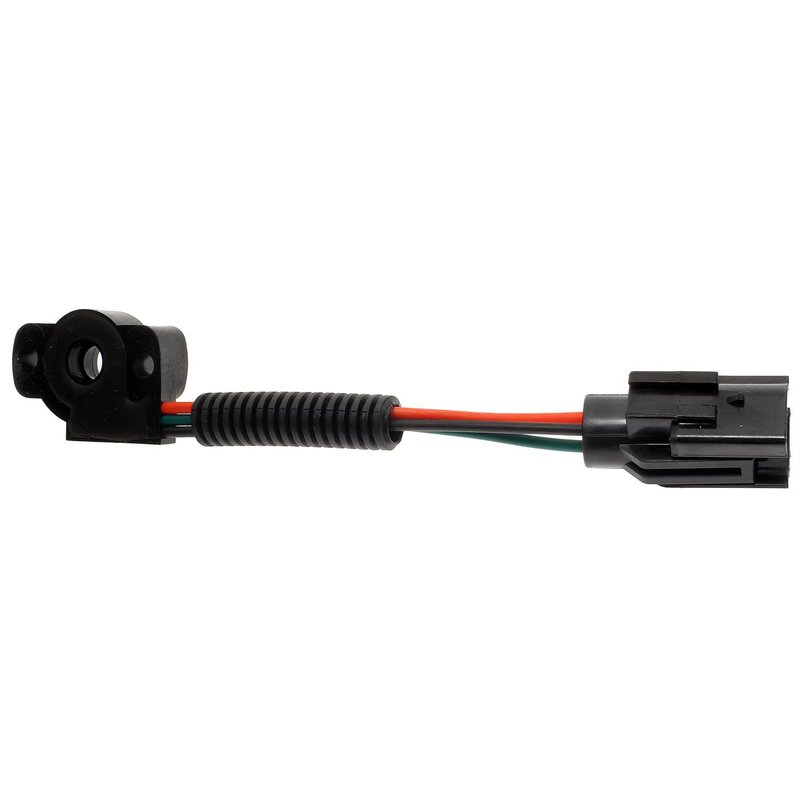

Standard Ignition TH130 Throttle Position Sensor
| Brand | Standard Ignition TH130 |
|---|---|
| Connector Gender | Male |
| Connector Type | Plug In |
| Terminal Gender | Female |
| Terminal Type | Bullet |
| Fits | Ford · 4 vehicles |
OE-style output. Maintains installed output to match original specifications.
Easy installation. Integral rotor bearings and return springs simplify setup.
Quality-tested. End-of-line testing validates output voltages for reliable operation.
Cross-references Four Seasons 75500, 2-29926 and 213-2091 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for Ford Applications
Standard Ignition TH130 is a throttle position sensor built for precise throttle feedback on select Ford vehicles. It is engineered with a fixed installed output to match OE calibration, helping maintain accurate signal response for the engine control system.
Compatible with 1985 Ford E-150 Econoline, 1985 Ford E-150 Econoline Club Wagon, 1985 Ford E-250 Econoline, and 1985 Ford Thunderbird, TH130 supports direct replacement service where a 3-terminal, plug-in sensor is required.
Key Features
- Fixed installed output matches OE-style calibration
- Male connector with 1 plug-in connection
- 3 female bullet terminals for the electrical interface
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials help maintain low resistance over time
- Integral rotor bearings and return springs support straightforward installation
- End-of-line testing validates output voltage across thousands of data points
Detailed Product Overview
The Standard Ignition TH130 throttle position sensor is designed to deliver consistent throttle angle feedback to the vehicle’s control system. Unlike adjustable consolidated designs, this sensor uses a specific installed output to align with OE requirements. That approach helps preserve signal accuracy and reduces the chance of electrical drift caused by dimensional changes in the sensor body.
For Ford E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, and Thunderbird applications, TH130 provides a service replacement option that follows the original electrical layout with a male connector, plug-in style connection, and 3 female bullet terminals. Standard Ignition also uses durable contact alloys and thorough end-of-line validation to confirm output performance before the part leaves the factory. This part cross-references Four Seasons 75500 for the same application.
Common Issues This Sensor Can Address
- Erratic throttle signal output
- Throttle response delay or hesitation
- Check engine light related to throttle position feedback
- Idle quality problems caused by incorrect TPS voltage
- Driveability concerns from worn sensor contacts or unstable readings
Installation Notes and Tips
Verify connector style, terminal count, and terminal gender before installation. TH130 uses a plug-in male connector with 3 female bullet terminals, so the harness connection should match the original configuration on the vehicle. After installation, confirm throttle voltage and sweep response with a scan tool or multimeter to ensure the sensor output tracks smoothly through the throttle range.
Quality Assurance
Standard Ignition manufactures emission control components with process control from component materials through finished product inspection. TH130 is tested at the end of production to validate output voltage and operating consistency for dependable service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1985 | Ford | E-150 Econoline | 5.0L | V8 | N/A | — |
| 1985 | Ford | E-150 Econoline Club Wagon | 5.0L | V8 | N/A | — |
| 1985 | Ford | E-250 Econoline | 5.0L | V8 | N/A | — |
| 1985 | Ford | Thunderbird | 5.0L | V8 | N/A | — |
