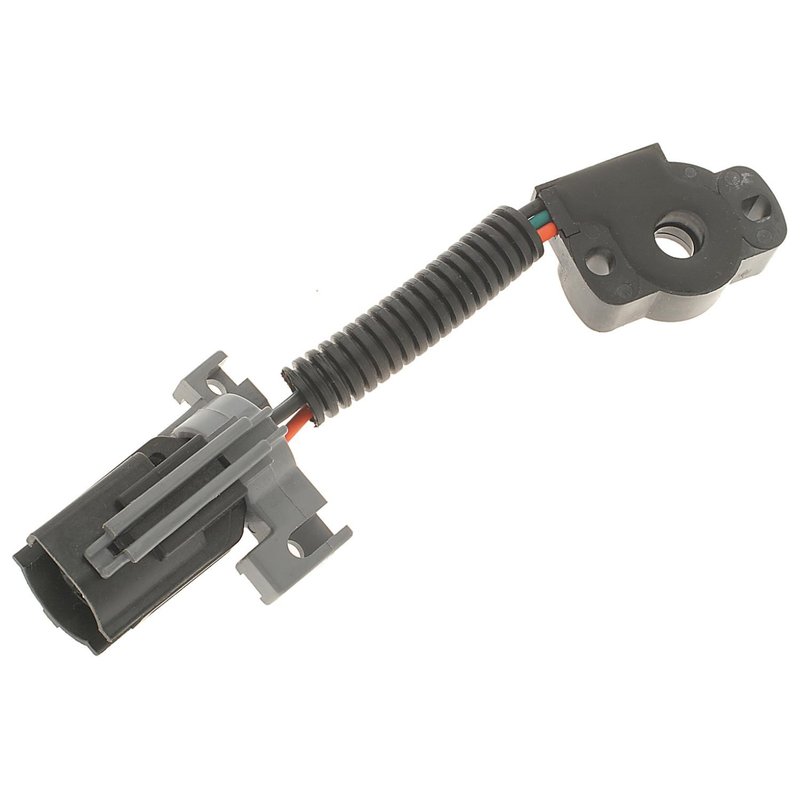

Standard Ignition TH14 Throttle Position Sensor

Overview of Standard Ignition TH14 Throttle Position Sensor

The Standard Ignition TH14 throttle position sensor is designed specifically for Ford Ranger models, providing accurate throttle position readings to optimize engine performance. This sensor features a male connector with a single plug-in connection, ensuring reliable electrical contact and ease of installation.

• Compatible with Ford Ranger vehicles
• Part number TH14 for precise identification
• Male connector with one plug-in type connection
• Three female bullet terminals for secure wiring
• Designed for emission control sensor applications

Technical Details and Attributes

The TH14 throttle position sensor from Standard Ignition is engineered with a male connector gender and a single connector quantity, utilizing a plug-in connector type for straightforward integration. It includes three female bullet terminals, which provide a stable and durable electrical connection. These specifications ensure the sensor meets the electrical and mechanical requirements for Ford Ranger throttle position monitoring systems.

Function and Application

This throttle position sensor is used to monitor the position of the throttle in Ford Ranger vehicles, sending critical data to the engine control unit (ECU) to regulate fuel injection and ignition timing. It helps address issues such as:

• Erratic engine idling or stalling
• Poor acceleration response
• Check engine light related to throttle position faults
• Reduced fuel efficiency due to incorrect throttle data
• Transmission shifting problems linked to throttle input

Installation Notes and Tips

When installing the Standard Ignition TH14 throttle position sensor, ensure the male plug-in connector is securely attached to the vehicle’s wiring harness. Verify that the three female bullet terminals are properly connected to avoid signal loss or intermittent faults. It is recommended to disconnect the battery before installation to prevent electrical shorts and to follow the Ford Ranger service manual for torque specifications and sensor alignment.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The TH14 throttle position sensor undergoes rigorous quality control testing to maintain consistent functionality. Warranty coverage details should be confirmed with the product documentation or supplier, as it may vary by region.
