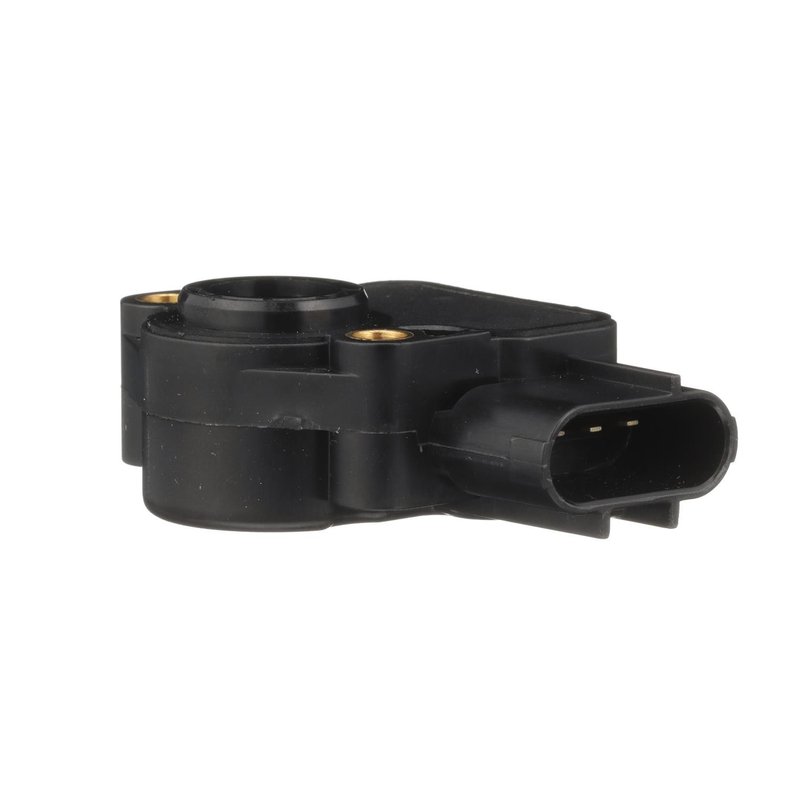

Standard Ignition TH155 Throttle Position Sensor

Brand Standard Ignition TH155
Connector Gender Female
Connector Type Plug In
Terminal Gender Male
Terminal Type Blade Terminals
Fits Mazda, Ford, and Mercury · 25 vehicles

OE-style output. Maintains specific installed output instead of an adjustable design.

Easy installation. Integral rotor bearings and return springs simplify setup.

Thoroughly tested. End-of-line validation checks output voltages for reliable operation.

Cross-references Beck/Arnley 158-1446, Carlson 14083 and Dorman - HELP 75401 for the same application. See all 18.

$41.14Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $41.14
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for Ford and Mazda

Standard Ignition TH155 is a throttle position sensor built for direct OE-style output on select Ford and Mazda applications. It uses a female plug-in connector with 3 male blade terminals, making it a straightforward replacement for vehicles such as the Ford Ranger, Ford Mustang, Ford Windstar, Ford Thunderbird, Ford Taurus, Mercury Cougar, and Mazda B3000.

Key Features

  • Maintains a specific installed output to match OE calibration
  • Female connector with plug-in design for direct connection
  • 3 male blade terminals for the listed applications
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials for low resistance and longer service life
  • Integral rotor bearings and return springs for easier installation
  • End-of-line testing with thousands of data points to verify output voltage

Detailed Product Overview

The Standard Ignition TH155 throttle position sensor is engineered for precise throttle signal feedback in emission control systems. By maintaining a fixed installed output rather than using an adjustable consolidated design, it helps preserve the correct voltage signal expected by the engine management system. This matters on applications such as the Ford Ranger and Mazda B3000, where accurate throttle input supports stable drivability and consistent sensor response. Standard Ignition TH155 is also cross-referenced with Beck/Arnley 158-1446 and Walker Products 200-1060 for the same application.

Common Problems This Sensor Can Address

  • Erratic throttle signal readings
  • Throttle response issues tied to worn sensor contacts
  • Check engine light concerns related to TPS output
  • Rough idle or hesitation caused by inconsistent throttle feedback
  • Driveability problems from electrical drift in the sensor circuit

Installation Notes and Tips

Verify connector style, terminal count, and OE reference before installation. This TH155 uses a female plug-in connector with 3 blade terminals, so matching the harness and throttle body configuration is important. Confirm the vehicle application by year and model before replacing the sensor on a Ford Mustang, Ford Windstar, Mercury Cougar, or Mazda B3000.

Quality Assurance

Standard Ignition maintains quality control throughout manufacturing, from component selection to finished product. Each sensor is tested at the end of the line to validate output voltage and support trouble-free operation across the listed Ford and Mazda applications.

Compatible Vehicles

  • Fits 1998-2003 Mazda B3000, N/A
  • Fits 1998-2001 Ford Ranger, N/A
  • Fits 1999-2000 Ford Windstar, N/A
  • Fits 1995 Ford Windstar, N/A
  • Fits 1994-1998 Ford Mustang, N/A
  • Fits 1995-1997 Ford Thunderbird, N/A
  • Fits 1995-1997 Mercury Cougar, N/A
  • Fits 1995 Ford Taurus, N/A
This part fits 25 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2003MazdaB30003.0LV6—N/AOE No. F48F-AA
2002MazdaB30003.0LV6—N/AOE No. F48F-AA
2001FordRanger3.0LV6GASN/A—
2001MazdaB30003.0LV6—N/AOE No. F48F-AA
2000FordRanger3.0LV6GASN/A—
2000FordWindstar3.0LV6—N/A—
2000MazdaB30003.0LV6—N/AOE No. F48F-AA
1999FordRanger3.0LV6GASN/A—
1999FordWindstar3.0LV6—N/A—
1999MazdaB30003.0LV6—N/AOE No. F48F-AA
1998FordMustang3.8LV6—N/A—
1998FordRanger3.0LV6GASN/A—
1998MazdaB30003.0LV6—N/AOE No. F48F-AA
1997FordMustang3.8LV6—N/A—
1997FordThunderbird3.8LV6—N/A—
1997MercuryCougar3.8LV6—N/A—
1996FordMustang3.8LV6—N/A—
1996FordThunderbird3.8LV6—N/A—
1996MercuryCougar3.8LV6—N/A—
1995FordMustang3.8LV6—N/A—
1995FordTaurus———N/AOE No. F48F-AA
1995FordThunderbird3.8LV6—N/A—
1995FordWindstar3.8LV6—N/A—
1995MercuryCougar3.8LV6—N/A—
1994FordMustang3.8LV6—N/A—
Directly replaces or cross-references 18 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 158-1446Carlson — 14083Dorman - HELP — 75401Focus Auto Parts — 99054Walker Products — 200-10602-190943-190945S513571-7635141-281213-2673CX1493EC3026ECC1059F48F9B989AASS10386TPS247ZZP118851
