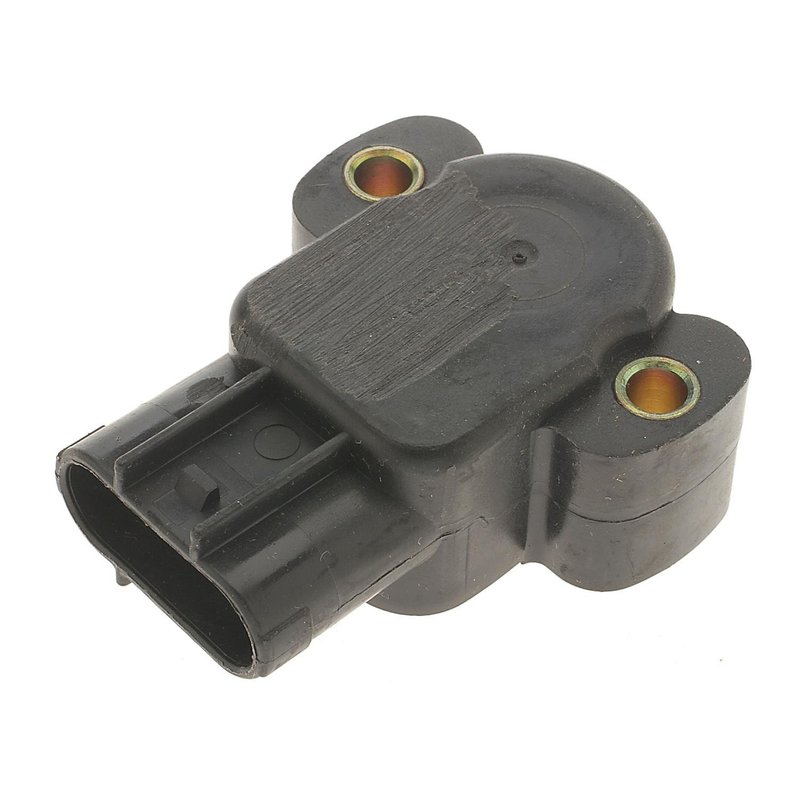

Standard Ignition TH181 Throttle Position Sensor

Brand Standard Ignition TH181
Connector Gender Female
Connector Type Plug In
Terminal Gender Male
Terminal Type Blade Terminals
Fits Mazda and Ford · 18 vehicles

OE-style output. Maintains specific installed output for direct replacement performance.

Easy installation. Integral rotor bearings and return springs simplify setup.

Rigorous testing. End-of-line validation checks output voltages for trouble-free operation.

Cross-references Beck/Arnley 158-1431, Carlson 14043 and Focus Auto Parts 99046 for the same application. See all 17.

$44.51Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $44.51
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for OE-Style Signal Control

Standard Ignition TH181 is a throttle position sensor built for direct signal accuracy on compatible Ford and Mazda applications. It uses a female plug-in connector with 3 male blade terminals, making it a practical replacement for vehicles that need stable throttle input feedback.

Key Features

  • Female connector with plug-in design for straightforward connection
  • 3 male blade terminals for OE-style electrical interface
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials to help maintain low resistance over service life
  • Integral rotor bearings and return springs for consistent sensor movement
  • End-of-line testing with voltage validation data for output consistency

Detailed Description

The Standard Ignition TH181 throttle position sensor is engineered to maintain a specific installed output rather than relying on an adjustable consolidated design. That approach helps preserve the calibrated throttle signal expected by the engine control system. This part number is used in applications such as 1995-1997 Ford Ranger, 1995-1997 Mazda B3000, 1995-1998 Ford Windstar, and 1996-1997 Ford Aerostar, including 1998-2003 Mazda B3000 with OE No. F5DF-AA. Standard Ignition TH181 is also cross-referenced to Walker Products 200-1065 for the same application.

What It Helps Address

  • Erratic throttle position signal readings
  • Throttle response concerns caused by sensor wear
  • Check engine lights related to TPS output faults
  • Idle quality issues tied to incorrect throttle feedback
  • Driveability problems from inconsistent voltage output

Installation Notes and Tips

Verify connector style, terminal count, and OE reference before installation. This sensor uses a female connector, one plug-in connection point, and 3 male blade terminals. Confirm the throttle body and harness condition are clean and undamaged so the new sensor can seat and communicate correctly. For Ford Ranger and Mazda B3000 applications, compare the original sensor orientation and OE number before replacement.

Quality Assurance

Standard Ignition manufactures emission control components with process control from component selection through finished product testing. Each TH181 throttle position sensor is tested at the end of the line with voltage data points to confirm output performance before it leaves the factory.

This part fits 18 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2003MazdaB30003.0LV6N/AOE No. F5DF-AA
2002MazdaB30003.0LV6N/AOE No. F5DF-AA
2001MazdaB30003.0LV6N/AOE No. F5DF-AA
2000MazdaB30003.0LV6N/AOE No. F5DF-AA
1999MazdaB30003.0LV6N/AOE No. F5DF-AA
1998FordWindstar3.0LV6N/A—
1998MazdaB30003.0LV6N/AOE No. F5DF-AA
1997FordAerostar3.0LV6N/A—
1997FordRanger3.0LV6N/A—
1997FordWindstar3.0LV6N/A—
1997MazdaB30003.0LV6N/A—
1996FordAerostar3.0LV6N/A—
1996FordRanger3.0LV6N/A—
1996FordWindstar3.0LV6N/A—
1996MazdaB30003.0LV6N/A—
1995FordRanger3.0LV6N/A—
1995FordWindstar3.0LV6N/A—
1995MazdaB30003.0LV6N/A—
Directly replaces or cross-references 17 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 158-1431Carlson — 14043Focus Auto Parts — 99046Four Seasons — 75349Walker Products — 200-10652-201745S515271-7652141-283213-2688CX1497EC3178ECC1185F5DF9B989AASS10480TPS264ZZM718851
