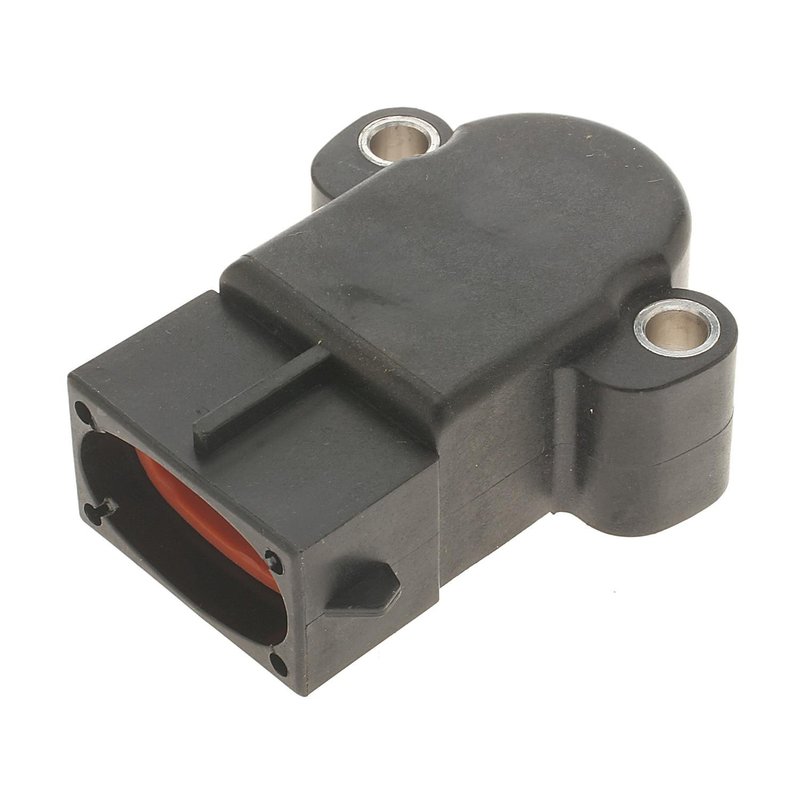

Standard Ignition TH22 Throttle Position Sensor

Brand Standard Ignition TH22
Connector Gender Female
Terminal Gender Male
Fits Ford · 6 vehicles

OE-style output. Maintains specific installed output to match the original design.

Stable sensor design. Flexible film or ceramic substrates help prevent electrical drift.

Easy installation. Integral rotor bearings and return springs simplify setup.

Cross-references Febi-Bilstein 38054, Four Seasons 75347 and Quality-Built 14019 for the same application. See all 16.

$40.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $40.24
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for Ford Bronco II and Ranger

Standard Ignition TH22 is a throttle position sensor built for direct OE-style output on select Ford applications. It uses a female 1-connector, 3-terminal design and is engineered for stable signal delivery in 1986-1988 Ford Bronco II and Ford Ranger service applications.

Key Features

  • OE-matched installed output for consistent throttle signal calibration
  • Female connector with 1 connector and 3 male terminals
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials for low resistance and extended service life
  • Integral rotor bearings and return springs for straightforward installation
  • End-of-line testing with thousands of data points to verify output voltage

Detailed Description

The Standard Ignition TH22 throttle position sensor is engineered to report throttle angle accurately to the engine control system. By maintaining a specific installed output rather than relying on an adjustable consolidated design, it supports proper signal consistency on vehicles such as the Ford Bronco II and Ford Ranger. This part number, TH22, is built with stable circuit materials and tested output values to help maintain smooth throttle response and reliable drivability.

This part cross-references Walker Products 200-1022 for the same application.

What It Helps Solve

  • Erratic throttle signal readings
  • Hesitation or poor throttle response
  • Check engine light concerns related to throttle position input
  • Rough idle caused by incorrect TPS voltage output
  • Driveability issues on 1986-1988 Ford Bronco II and Ford Ranger applications

Installation Notes and Tips

Fits 1986 Ford Bronco II, N/A. Fits 1987-1988 Ford Bronco II, N/A, w/ Centered Index Slot. Fits 1986 Ford Ranger, N/A. Fits 1987-1988 Ford Ranger, N/A, w/ Centered Index Slot. Verify connector style, terminal count, and index slot configuration before installation. Follow the vehicle service procedure for throttle position sensor alignment and electrical testing after installation.

Quality Assurance

Standard Ignition manufactures emission control components with process control from component materials through finished product. TH22 is validated through end-of-line testing to confirm output voltage performance and consistent operation.

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1988FordBronco II2.9LV6N/Aw/ Centered Index Slot
1988FordRanger2.9LV6N/Aw/ Centered Index Slot
1987FordBronco II2.9LV6N/Aw/ Centered Index Slot
1987FordRanger2.9LV6N/Aw/ Centered Index Slot
1986FordBronco II2.9LV6N/A—
1986FordRanger2.9LV6N/A—
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Febi-Bilstein — 38054Four Seasons — 75347Quality-Built — 14019SKF — 14021Walker Products — 200-10222-190485S516171-7662141-219213-2105CX1127E67F9B989AAEC1091ECC1244SS10417TPS219
