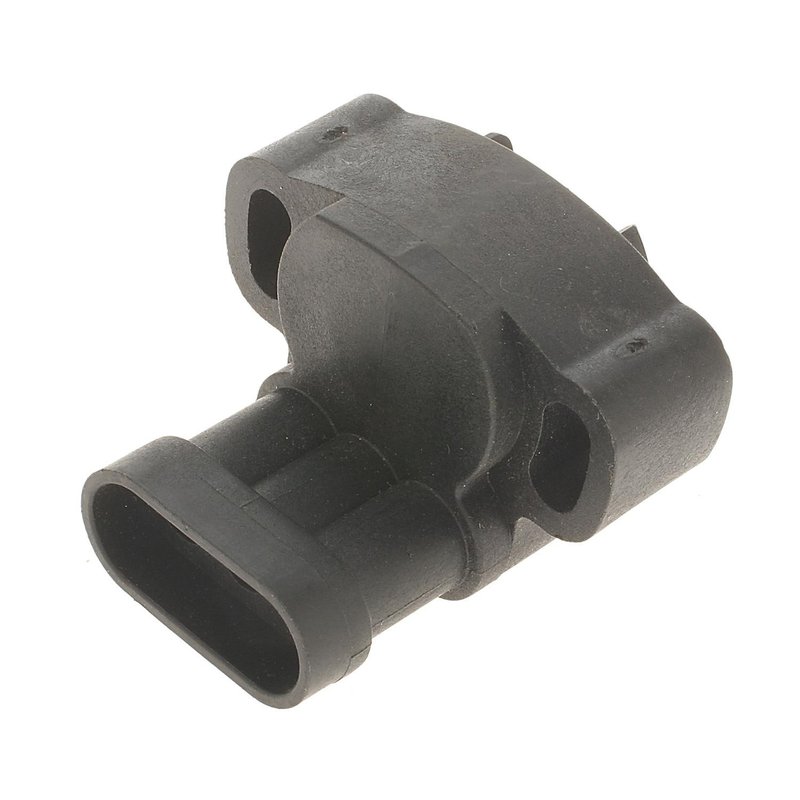

Standard Ignition TH23 Throttle Position Sensor

Brand Standard Ignition TH23
Connector Gender Male
Connector Type Plug In
Terminal Gender Female
Terminal Type Bullet
Fits Cadillac · 10 vehicles

OE-style output. Maintains installed output to match original equipment, not adjustable designs.

Easy installation. Integral rotor bearings and return springs simplify setup.

Low-resistance contacts. Palladium, gold, and platinum alloys help extend service life.

Cross-references Four Seasons 75305, 2-29943 and 5S5060 for the same application. See all 9.

$148.07Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $148.07
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for Cadillac Applications

The Standard Ignition TH23 throttle position sensor is built for direct replacement service on select Cadillac vehicles, including 1981-1984 Cadillac Fleetwood and 1981-1983 Cadillac Commercial Chassis applications. It uses a fixed installed output to match OE calibration, helping maintain accurate throttle signal feedback for dependable drivability.

Key Features

  • Direct replacement throttle position sensor for emission control systems
  • Fixed installed output calibration to match OE specifications
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials for low resistance and extended service life
  • Integral rotor bearings and return springs for straightforward installation
  • End-of-line tested with thousands of data points to verify output voltage
  • Male connector, plug-in style, with 3 female bullet terminals

Detailed Description

Standard Ignition TH23 is a throttle position sensor engineered for precise throttle angle reporting in emission control systems. The sensor design uses stable circuit materials and controlled output calibration rather than an adjustable consolidated layout, which helps preserve consistent electrical performance over time. This part number is used on Cadillac Fleetwood, Cadillac Commercial Chassis, Cadillac DeVille, Cadillac Eldorado, and Cadillac Seville applications listed in the fitment data, making TH23 a practical OE-style replacement for service work on these vehicles.

This part cross-references Four Seasons 75305 for the same application.

What It Helps Address

  • Erratic throttle signal output
  • Throttle response concerns caused by worn sensor contacts
  • Driveability issues related to incorrect throttle angle feedback
  • Emission control faults tied to TPS signal drift
  • Service replacement needs on Cadillac Fleetwood and Cadillac Commercial Chassis models

Installation Notes and Tips

Verify connector style, terminal count, and mounting alignment before installation. The TH23 uses a plug-in male connector with 3 female bullet terminals, so the harness connection should match the vehicle’s original configuration. Confirm throttle linkage movement is smooth and inspect the throttle body or shaft for wear before installing the new sensor. For best results, clear any stored fault codes and confirm throttle signal output after installation.

Quality Assurance

Standard Ignition manufactures emission control components with process control from raw componentry through finished product. Each TH23 throttle position sensor is tested at the end of the line with extensive voltage data to confirm output performance before it leaves the factory.

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1984CadillacFleetwood6.0LV8N/A—
1983CadillacCommercial Chassis6.0LV8N/A—
1983CadillacFleetwood6.0LV8N/A—
1982CadillacCommercial Chassis6.0LV8N/A—
1982CadillacFleetwood6.0LV8N/A—
1981CadillacCommercial Chassis6.0LV8N/A—
1981CadillacDeVille6.0LV8N/A—
1981CadillacEldorado6.0LV8N/A—
1981CadillacFleetwood6.0LV8N/A—
1981CadillacSeville6.0LV8N/A—
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 753052-299435S506071-7555141-41317067979EC3333ECC1526TPS122
