Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

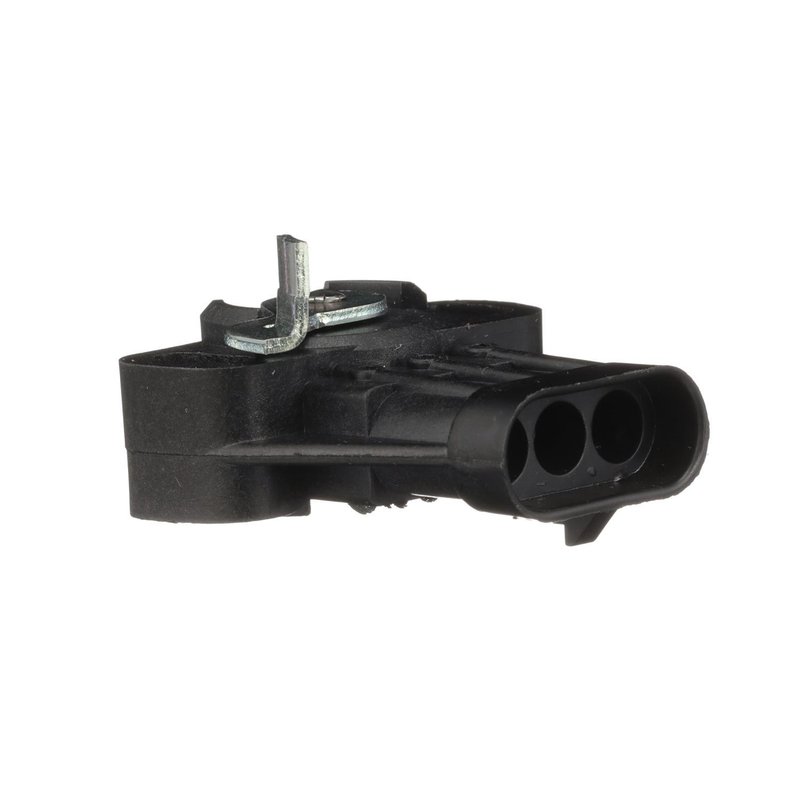

Standard Ignition TH37 Throttle Position Sensor
| Brand | Standard Ignition TH37 |
|---|---|
| Connector Gender | Male |
| Notes | Complete Assembly |
| Terminal Gender | Female |
| Terminal Type | Pin Socket |
| Fits | Chevrolet, Pontiac, Cadillac, and Oldsmobile · 45 vehicles |
OE-style output. Maintains specific installed output to match the original design.
Complete assembly. Includes integral rotor bearings and return springs for easier installation.
Precision-tested. End-of-line testing validates output voltages for trouble-free operation.
Cross-references AP Exhaust 38015, Carlson 14058 and Four Seasons 75351 for the same application. See all 18.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for GM Applications
Standard Ignition TH37 is a throttle position sensor built for precise throttle signal output and stable operation. It is a complete assembly with a male connector, one connector, and three female pin-socket terminals for direct replacement service on select Chevrolet, Pontiac, Cadillac, and Oldsmobile vehicles.
Compatible with 1985-1989 Chevrolet Camaro and Corvette, 1985-1989 Pontiac Firebird, and select 1985-1986 Cadillac Cimarron, Chevrolet Cavalier, Chevrolet Celebrity, Oldsmobile Cutlass Ciera, Oldsmobile Firenza, Pontiac 6000, and Chevrolet Citation II applications.
- Standard Ignition TH37 throttle position sensor
- Complete assembly for service replacement
- Male connector with 1 connector and 3 female pin-socket terminals
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and consistent signal transfer
- Integral rotor bearings and return springs for straightforward installation
- End-of-line testing with thousands of data points to verify output voltage
Detailed Product Overview
The TH37 monitors throttle angle and sends the engine control system the signal it needs for fuel delivery and drivability management. Standard Ignition uses fixed installed output calibration rather than adjustable consolidated designs, helping maintain OE-style signal characteristics across the service life of the sensor. This matters on vehicles such as the Chevrolet Camaro, Pontiac Firebird, and Corvette, where accurate throttle feedback supports smooth acceleration and consistent engine response.
This part cross-references Walker Products 200-1044 for the same application.
Common Symptoms This Part Can Address
- Erratic or delayed throttle response
- Rough idle caused by incorrect throttle signal output
- Hesitation during acceleration
- Check engine light related to throttle position sensor faults
- Unstable idle speed or shifting concerns tied to throttle input data
Installation Notes and Tips
Verify connector style, terminal layout, and throttle body fitment before installation. Inspect the throttle linkage and connector terminals for wear, corrosion, or damage before replacing the sensor. After installation, confirm throttle signal output and clear any stored diagnostic trouble codes as required by the vehicle service procedure.
Quality Assurance
Standard Ignition maintains quality control through the manufacturing process, from component selection to finished product. Each TH37 sensor is tested at the end of the line to confirm output voltage performance before it leaves the factory.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1989 | Chevrolet | Camaro | 5.7L | V8 | N/A | — |
| 1989 | Chevrolet | Camaro | 5.0L | V8 | N/A | — |
| 1989 | Chevrolet | Camaro | 2.8L | V6 | N/A | — |
| 1989 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1989 | Pontiac | Firebird | 5.0L | V8 | N/A | — |
| 1989 | Pontiac | Firebird | 2.8L | V6 | N/A | — |
| 1989 | Pontiac | Firebird | 5.7L | V8 | N/A | — |
| 1988 | Chevrolet | Camaro | 2.8L | V6 | N/A | — |
| 1988 | Chevrolet | Camaro | 5.7L | V8 | N/A | — |
| 1988 | Chevrolet | Camaro | 5.0L | V8 | N/A | — |
| 1988 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1988 | Pontiac | Firebird | 5.0L | V8 | N/A | — |
| 1988 | Pontiac | Firebird | 5.7L | V8 | N/A | — |
| 1988 | Pontiac | Firebird | 2.8L | V6 | N/A | — |
| 1987 | Chevrolet | Camaro | 5.7L | V8 | N/A | — |
| 1987 | Chevrolet | Camaro | 5.0L | V8 | N/A | — |
| 1987 | Chevrolet | Camaro | 2.8L | V6 | N/A | — |
| 1987 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1987 | Pontiac | Firebird | 5.0L | V8 | N/A | — |
| 1987 | Pontiac | Firebird | 2.8L | V6 | N/A | — |
| 1987 | Pontiac | Firebird | 5.7L | V8 | N/A | — |
| 1986 | Cadillac | Cimarron | 2.8L | V6 | N/A | — |
| 1986 | Chevrolet | Camaro | 5.0L | V8 | N/A | — |
| 1986 | Chevrolet | Camaro | 2.8L | V6 | N/A | — |
| 1986 | Chevrolet | Cavalier | 2.8L | V6 | N/A | — |
| 1986 | Chevrolet | Celebrity | 2.8L | V6 | N/A | — |
| 1986 | Chevrolet | Corvette | — | — | N/A | — |
| 1986 | Oldsmobile | Cutlass Ciera | 2.8L | V6 | N/A | — |
| 1986 | Oldsmobile | Firenza | 2.8L | V6 | N/A | — |
| 1986 | Pontiac | 6000 | 2.8L | V6 | N/A | — |
| 1986 | Pontiac | Firebird | 5.0L | V8 | N/A | — |
| 1986 | Pontiac | Firebird | 2.8L | V6 | N/A | — |
| 1986 | Pontiac | Firebird | 2.5L | L4 | N/A | — |
| 1985 | Cadillac | Cimarron | 2.8L | V6 | N/A | — |
| 1985 | Chevrolet | Camaro | 5.0L | V8 | N/A | — |
| 1985 | Chevrolet | Camaro | 2.8L | V6 | N/A | — |
| 1985 | Chevrolet | Cavalier | 2.8L | V6 | N/A | — |
| 1985 | Chevrolet | Celebrity | 2.8L | V6 | N/A | — |
| 1985 | Chevrolet | Citation II | 2.8L | V6 | N/A | — |
| 1985 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1985 | Oldsmobile | Cutlass Ciera | 2.8L | V6 | N/A | — |
| 1985 | Oldsmobile | Firenza | 2.8L | V6 | N/A | — |
| 1985 | Pontiac | 6000 | 2.8L | V6 | N/A | — |
| 1985 | Pontiac | Firebird | 5.0L | V8 | N/A | — |
| 1985 | Pontiac | Firebird | 2.8L | V6 | N/A | — |
