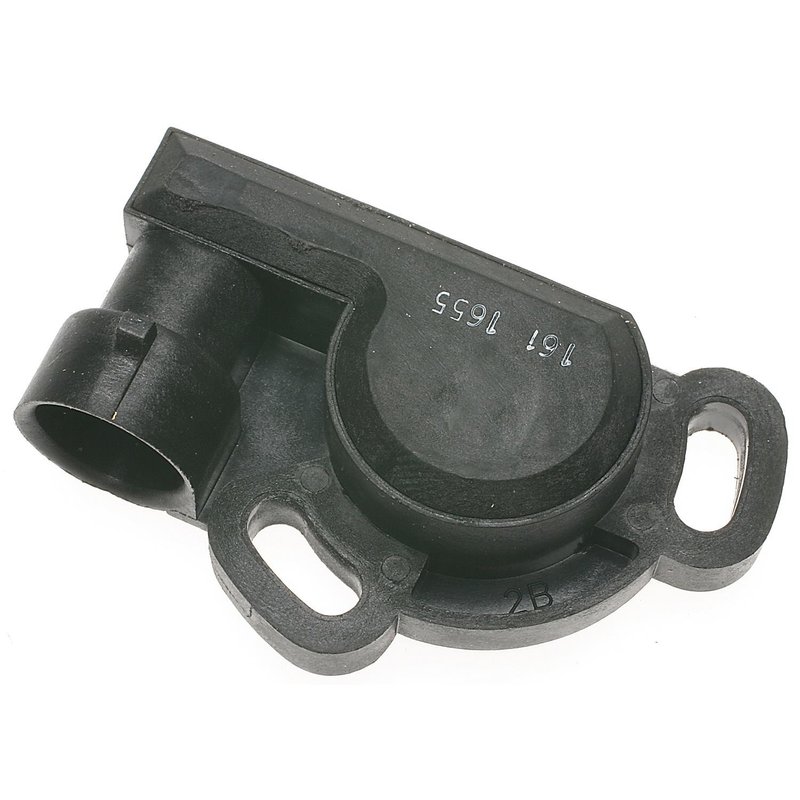

Standard Ignition TH40 Throttle Position Sensor
| Brand | Standard Ignition TH40 |
|---|---|
| Connector Gender | Female |
| Terminal Gender | Male |
| Fits | Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac · 27 vehicles |
OE-style output. Maintains installed output to match original equipment, not an adjustable design.
Stable sensor design. Flexible film or ceramic substrates help prevent electrical drift over time.
Low-resistance contacts. Noble metal alloys support reliable signal transfer and longer service life.
Cross-references Dixie Electric Ltd 14060, Focus Auto Parts 99023 and Four Seasons 75366 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for OE-Style Signal Control
Standard Ignition TH40 is a throttle position sensor built for direct replacement service on select GM applications. It uses a fixed installed output to match OE calibration, helping maintain consistent throttle signal feedback for the engine control system.
Compatible With 1987-1988 Buick Century, 1988 Buick Regal, 1988 Buick Skylark, 1987-1988 Cadillac Cimarron, 1987-1988 Chevrolet Cavalier, 1987-1988 Chevrolet Celebrity, 1987-1988 Chevrolet Corsica, 1988 Oldsmobile Cutlass Calais, 1987-1988 Oldsmobile Cutlass Ciera, 1987-1988 Oldsmobile Cutlass Cruiser, 1988 Oldsmobile Cutlass Supreme, 1987-1988 Pontiac 6000, 1988 Pontiac Grand Am, 1988 Pontiac Grand Prix, 1987-1988 Pontiac Tempest, 1987 Oldsmobile Calais, and 1987 Oldsmobile Firenza.
- Female connector with 1 connector and 3 male terminals
- Fixed installed output to match OE-style calibration
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and extended service life
- Integral rotor bearings and return springs for straightforward installation
- End-of-line testing with thousands of data points to verify output voltage
Detailed Product Overview
The TH40 throttle position sensor is engineered to deliver stable throttle angle feedback across the listed Buick, Cadillac, Chevrolet, Oldsmobile, and Pontiac applications. Standard Ignition uses printed circuits on stable substrates to help prevent electrical drift, while the sensor’s internal contact materials and mechanical design support consistent signal output over time. This part cross-references Gates 38007 and Walker Products 200-1038 for the same application.
Common Symptoms This Sensor Can Address
- Erratic throttle signal readings
- Hesitation or poor throttle response
- Unstable idle caused by incorrect TPS voltage
- Check engine light related to throttle position input
- Driveability issues from worn sensor contacts
Installation Notes
Verify connector style, terminal count, and throttle body application before installation. The TH40 uses a female connector with 3 male terminals, so matching the electrical interface is important for proper fitment. After installation, confirm throttle position voltage and scan tool readings to ensure the sensor is reporting correctly.
Quality Assurance
Standard Ignition manufactures emission control components under complete process quality control, from component selection through finished product testing. Each sensor is validated at the end of the line to confirm output voltage performance before it leaves the factory.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1988 | Buick | Century | — | 2.8L | V6 | N/A | — |
| 1988 | Buick | Regal | Automatic | 2.8L | V6 | N/A | — |
| 1988 | Buick | Skylark | — | 2.3L | L4 | N/A | — |
| 1988 | Cadillac | Cimarron | — | 2.8L | V6 | N/A | — |
| 1988 | Chevrolet | Cavalier | — | 2.8L | V6 | N/A | — |
| 1988 | Chevrolet | Celebrity | — | 2.8L | V6 | N/A | — |
| 1988 | Chevrolet | Corsica | — | 2.8L | V6 | N/A | — |
| 1988 | Oldsmobile | Cutlass Calais | — | 2.3L | L4 | N/A | — |
| 1988 | Oldsmobile | Cutlass Ciera | — | 2.8L | V6 | N/A | — |
| 1988 | Oldsmobile | Cutlass Cruiser | — | 2.8L | V6 | N/A | — |
| 1988 | Oldsmobile | Cutlass Supreme | — | 2.8L | V6 | N/A | — |
| 1988 | Pontiac | 6000 | — | 2.8L | V6 | N/A | — |
| 1988 | Pontiac | 6000 | — | 3.1L | V6 | N/A | — |
| 1988 | Pontiac | Grand Am | — | 2.3L | L4 | N/A | — |
| 1988 | Pontiac | Grand Prix | — | — | — | N/A | — |
| 1988 | Pontiac | Tempest | — | 2.8L | V6 | N/A | — |
| 1987 | Buick | Century | — | 2.8L | V6 | N/A | — |
| 1987 | Cadillac | Cimarron | — | 2.8L | V6 | N/A | — |
| 1987 | Chevrolet | Cavalier | — | 2.8L | V6 | N/A | — |
| 1987 | Chevrolet | Celebrity | — | 2.8L | V6 | N/A | — |
| 1987 | Chevrolet | Corsica | — | 2.8L | V6 | N/A | — |
| 1987 | Oldsmobile | Calais | — | 2.3L | L4 | N/A | — |
| 1987 | Oldsmobile | Cutlass Ciera | — | 2.8L | V6 | N/A | — |
| 1987 | Oldsmobile | Cutlass Cruiser | — | 2.8L | V6 | N/A | — |
| 1987 | Oldsmobile | Firenza | — | 2.8L | V6 | N/A | — |
| 1987 | Pontiac | 6000 | — | 2.8L | V6 | N/A | — |
| 1987 | Pontiac | Tempest | — | 2.8L | V6 | N/A | — |
| No rows match your filter. | |||||||
