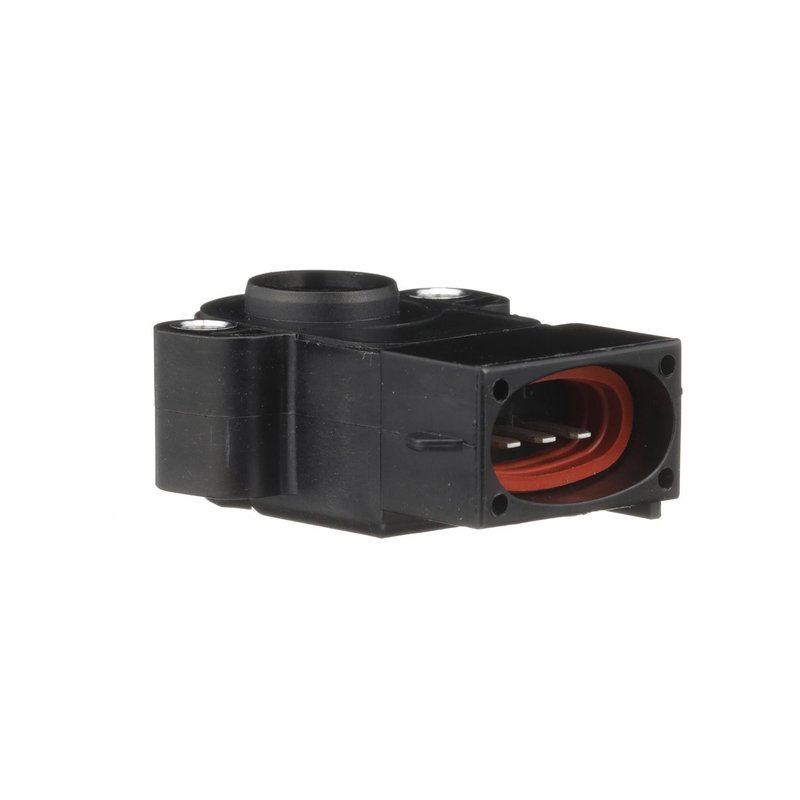

Standard Ignition TH46 Throttle Position Sensor
| Brand | Standard Ignition TH46 |
|---|---|
| Connector Gender | Female |
| Terminal Gender | Male |
| Fits | Ford · 35 vehicles |
OE-style output. Maintains a specific installed output instead of an adjustable design.
Stable sensor design. Flexible film or ceramic substrates help prevent electrical drift.
Easy installation. Integral rotor bearings and return springs simplify setup.
Cross-references Anchor 9961, Dorman - HELP 75455 and Gates 38073 for the same application. See all 19.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for Ford Applications
The Standard Ignition TH46 throttle position sensor is built for Ford vehicles that need accurate throttle signal feedback for proper engine management. It uses a fixed installed output to match OE calibration, helping maintain consistent voltage response in service.
Compatible With 1986-1993 Ford F-250, F-350, E-250 Econoline Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, Ranger, and Bronco II applications, this TH46 is a direct-fit emission control sensor for common Ford truck and van repairs.
Key Features
- Female connector with 1 connector cavity
- 3 male terminals for OE-style electrical connection
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and extended service life
- Integral rotor bearings and return springs for straightforward installation
- End-of-line testing with thousands of data points to verify output voltage
Detailed Product Overview
Standard Ignition TH46 is a throttle position sensor for Ford F-250, Ford F-350, Ford Ranger, Ford Bronco II, and Econoline van applications where throttle angle feedback is critical to drivability and emissions control. The sensor is built with non-adjustable OE-style output calibration rather than a consolidated adjustable design, which helps preserve the expected signal profile for the engine control system. The TH46 part number is also a useful reference when cross-checking service replacements for these Ford applications.
This part cross-references Dorman - HELP 75455 and Gates 38073 for the same application.
What This Sensor Helps Address
- Throttle signal erraticness that can affect acceleration response
- Idle quality concerns related to incorrect throttle angle input
- Check engine light conditions tied to TPS voltage faults
- Driveability issues caused by worn sensor contacts or unstable output
- Service replacement needs on Ford truck and van throttle bodies
Installation Notes and Tips
Verify connector style before installation: this sensor uses a female connector with 3 male terminals. Confirm the OE number and application details for your Ford F-250, F-350, Ranger, Bronco II, or Econoline model before replacement. After installation, clear diagnostic codes and confirm throttle voltage sweep and idle response with a scan tool or multimeter.
Quality Assurance
Standard Ignition controls the manufacturing process from component selection through finished product testing. Each TH46 throttle position sensor is tested at end of line to validate output voltage and support consistent operation in service.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1993 | Ford | F-250 | — | 7.5L | V8 | N/A | OE No. E77F-AA |
| 1993 | Ford | F-350 | — | 7.5L | V8 | N/A | OE No. E77F-AA |
| 1992 | Ford | E-350 Econoline | — | 7.5L | V8 | N/A | — |
| 1992 | Ford | E-350 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1992 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1992 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | E-250 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | E-350 Econoline | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | E-350 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1991 | Ford | Ranger | Automatic | 2.9L | V6 | N/A | — |
| 1990 | Ford | E-250 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1990 | Ford | E-350 Econoline | — | 7.5L | V8 | N/A | — |
| 1990 | Ford | E-350 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1990 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1990 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1990 | Ford | Ranger | — | 2.9L | V6 | N/A | OE No. E77F-AA |
| 1989 | Ford | E-250 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1989 | Ford | E-350 Econoline | — | 7.5L | V8 | N/A | — |
| 1989 | Ford | E-350 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1989 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1989 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | Bronco II | — | 2.9L | V6 | N/A | Sun Visor Light Connector featuring an Offset Index Slot |
| 1988 | Ford | E-250 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | E-350 Econoline | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | E-350 Econoline Club Wagon | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1988 | Ford | Ranger | — | 2.9L | V6 | N/A | Sun Visor Light Connector featuring an Offset Index Slot |
| 1987 | Ford | Bronco II | — | 2.9L | V6 | N/A | Sun Visor Light Connector featuring an Offset Index Slot |
| 1987 | Ford | F-250 | — | 7.5L | V8 | N/A | — |
| 1987 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
| 1987 | Ford | Ranger | — | 2.9L | V6 | N/A | Sun Visor Light Connector featuring an Offset Index Slot |
| 1986 | Ford | F-350 | — | 7.5L | V8 | N/A | — |
