Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

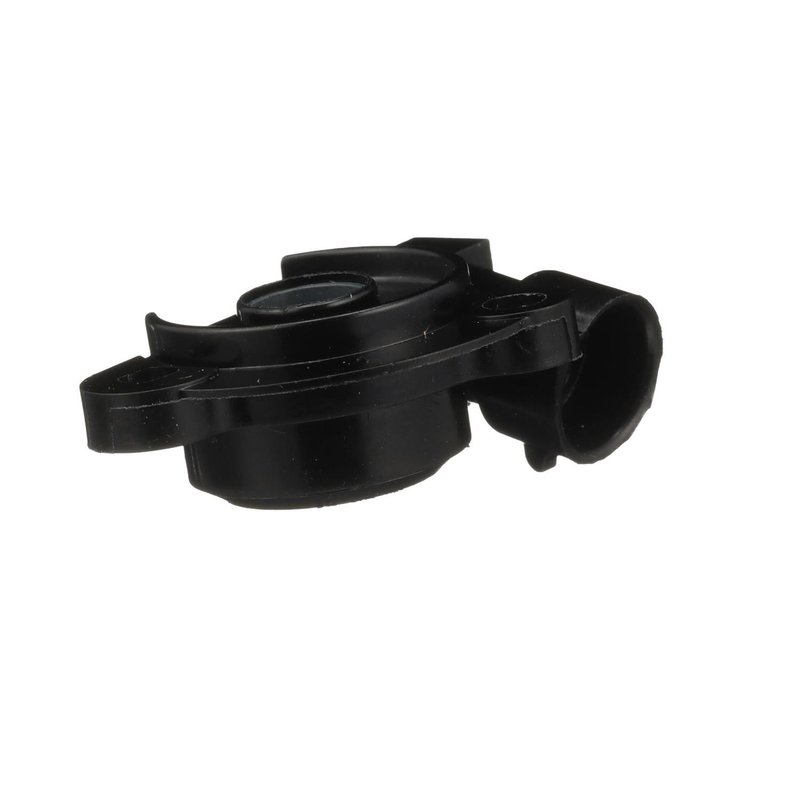

Standard Ignition TH47 Throttle Position Sensor
| Brand | Standard Ignition TH47 |
|---|---|
| Connector Gender | Female |
| Notes | Complete Assembly |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Chevrolet, Cadillac, Oldsmobile, Pontiac, GMC, and Buick · 133 vehicles |
OE-style output. Maintains specific installed output to match the original design.
Flexible circuit design. Polyimide film or ceramic substrates help keep electrical performance stable.
Complete assembly. Includes integral rotor bearings and return springs for easier installation.
Cross-references Anchor 9958, AP Exhaust 38014 and Carlson 7230 for the same application. See all 24.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for GM Applications
Standard Ignition TH47 is a throttle position sensor built for direct replacement on a wide range of Chevrolet, Cadillac, Buick, Pontiac, Oldsmobile, and GMC vehicles. It uses a fixed installed output to match OE calibration, helping maintain accurate throttle signal feedback for drivability and emissions control.
With confirmed coverage for models such as the Chevrolet S10, Camaro, Corvette, Lumina, and GMC Sonoma, TH47 is a practical choice for service work on GM throttle systems. The TH47 part number is also referenced in multiple aftermarket cross listings for the same application.
Key Features
- Female connector with 1 connector interface
- 3 blade terminals with male terminal ends
- Complete assembly for direct replacement service
- Fixed installed output to match OE-style calibration
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and extended service life
- Integral rotor bearings and return springs for smoother installation
- End-of-line testing with thousands of data points to verify output voltage
Detailed Description
Standard Ignition TH47 throttle position sensor is engineered for consistent signal output across the throttle range. The sensor’s printed circuit design and stable substrate materials help reduce electrical drift, while the contact materials support reliable signal transfer over time. This makes TH47 a solid replacement for GM vehicles that depend on accurate throttle input for fuel delivery and engine response.
Compatible With 1987-2002 Chevrolet, Cadillac, Buick, Pontiac, Oldsmobile, and GMC applications, including Fits 1987-1993 Chevrolet S10, Fits 1993 Chevrolet Camaro, Fits 1992-1993 Chevrolet Corvette, Fits 1990-1995 Chevrolet Lumina, and Fits 1991-1993 GMC Sonoma. This part cross-references Walker Products (e.g., 200-1037) for the same application.
Common Issues This Sensor Can Address
- Erratic throttle signal readings
- Hesitation during acceleration
- Rough idle caused by incorrect throttle feedback
- Delayed or inconsistent throttle response
- Check engine light concerns related to throttle position input
Installation Notes and Tips
Verify connector style, terminal count, and throttle body fitment before installation. TH47 uses a female connector, 3 blade terminals, and a complete assembly configuration, so matching the OE-style mounting and electrical layout is important for proper operation. After installation, confirm throttle signal output and clear any stored diagnostic trouble codes as needed.
Quality Assurance
Standard Ignition maintains quality control throughout manufacturing, from component selection to finished sensor testing. Each throttle position sensor is validated at the end of the line to confirm output voltage performance before it leaves the factory.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2002 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 2002 | Chevrolet | Chevy | 1.6L | L4 | N/A | — |
| 2001 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 2000 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 2000 | Chevrolet | Chevy | 1.6L | L4 | N/A | — |
| 1999 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1999 | Chevrolet | Chevy | 1.6L | L4 | N/A | — |
| 1998 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1998 | Chevrolet | Chevy | 1.6L | L4 | N/A | — |
| 1997 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1996 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1995 | Cadillac | DeVille | 4.6L | V8 | N/A | — |
| 1995 | Cadillac | Eldorado | 4.6L | V8 | N/A | — |
| 1995 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 1995 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1995 | Chevrolet | Lumina | 3.4L | V6 | N/A | — |
| 1995 | Chevrolet | Monte Carlo | 3.4L | V6 | N/A | — |
| 1995 | Oldsmobile | Aurora | — | — | N/A | — |
| 1995 | Oldsmobile | Cutlass Supreme | 3.4L | V6 | N/A | — |
| 1995 | Pontiac | Grand Prix | 3.4L | V6 | N/A | — |
| 1994 | Cadillac | DeVille | 4.6L | V8 | N/A | — |
| 1994 | Cadillac | Eldorado | 4.6L | V8 | N/A | — |
| 1994 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 1994 | Chevrolet | Chevy | 1.4L | L4 | N/A | — |
| 1994 | Chevrolet | Lumina | 3.4L | V6 | N/A | — |
| 1994 | Oldsmobile | Cutlass Supreme | 3.4L | V6 | N/A | — |
| 1994 | Pontiac | Grand Prix | 3.4L | V6 | N/A | — |
| 1993 | Cadillac | Allante | 4.6L | V8 | N/A | — |
| 1993 | Cadillac | Eldorado | 4.6L | V8 | N/A | — |
| 1993 | Cadillac | Seville | 4.6L | V8 | N/A | — |
| 1993 | Chevrolet | Camaro | 5.7L | V8 | N/A | — |
| 1993 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1993 | Chevrolet | Lumina | 3.4L | V6 | N/A | — |
| 1993 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1993 | GMC | Sonoma | 2.5L | L4 | N/A | — |
| 1993 | Oldsmobile | Cutlass Supreme | 3.4L | V6 | N/A | — |
| 1993 | Pontiac | Firebird | 5.7L | V8 | N/A | — |
| 1993 | Pontiac | Grand Prix | 3.4L | V6 | N/A | — |
| 1993 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1992 | Buick | Century | 2.5L | L4 | N/A | — |
| 1992 | Chevrolet | Corvette | 5.7L | V8 | N/A | — |
| 1992 | Chevrolet | Lumina | 3.4L | V6 | N/A | — |
| 1992 | Chevrolet | Lumina | 2.5L | L4 | N/A | — |
| 1992 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1992 | GMC | Sonoma | 2.5L | L4 | N/A | — |
| 1992 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1992 | Oldsmobile | Cutlass Supreme | 3.4L | V6 | N/A | — |
| 1992 | Pontiac | Grand Prix | 3.4L | V6 | N/A | — |
| 1992 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1991 | Buick | Century | 2.5L | L4 | N/A | — |
| 1991 | Buick | Skylark | 2.5L | L4 | N/A | — |
| 1991 | Chevrolet | Lumina | 2.5L | L4 | N/A | — |
| 1991 | Chevrolet | Lumina | 3.4L | V6 | N/A | — |
| 1991 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1991 | GMC | Sonoma | 2.5L | L4 | N/A | — |
| 1991 | Oldsmobile | Cutlass Calais | 2.5L | L4 | N/A | — |
| 1991 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1991 | Oldsmobile | Cutlass Supreme | 3.4L | V6 | N/A | — |
| 1991 | Pontiac | 6000 | 2.5L | L4 | N/A | — |
| 1991 | Pontiac | Grand Am | 2.5L | L4 | N/A | — |
| 1991 | Pontiac | Grand Prix | 3.4L | V6 | N/A | — |
| 1991 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1991 | Pontiac | Sunbird | 2.0L | L4 | N/A | — |
| 1990 | Buick | Century | 2.5L | L4 | N/A | — |
| 1990 | Buick | Skylark | 2.5L | L4 | N/A | — |
| 1990 | Chevrolet | Astro | 2.5L | L4 | N/A | — |
| 1990 | Chevrolet | Celebrity | 2.5L | L4 | N/A | — |
| 1990 | Chevrolet | Lumina | 2.5L | L4 | N/A | — |
| 1990 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1990 | GMC | S15 | 2.5L | L4 | N/A | — |
| 1990 | GMC | Safari | 2.5L | L4 | N/A | — |
| 1990 | Oldsmobile | Cutlass Calais | 2.5L | L4 | N/A | — |
| 1990 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1990 | Oldsmobile | Cutlass Cruiser | 2.5L | L4 | N/A | — |
| 1990 | Pontiac | 6000 | 2.5L | L4 | N/A | — |
| 1990 | Pontiac | Grand Am | 2.5L | L4 | N/A | — |
| 1990 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1990 | Pontiac | LeMans | 2.0L | L4 | N/A | — |
| 1990 | Pontiac | Sunbird | 2.0L | L4 | N/A | — |
| 1989 | Buick | Century | 2.5L | L4 | N/A | — |
| 1989 | Buick | Skylark | 2.5L | L4 | N/A | — |
| 1989 | Chevrolet | Astro | 2.5L | L4 | N/A | — |
| 1989 | Chevrolet | Celebrity | 2.5L | L4 | N/A | — |
| 1989 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1989 | GMC | S15 | 2.5L | L4 | N/A | — |
| 1989 | GMC | Safari | 2.5L | L4 | N/A | — |
| 1989 | Oldsmobile | Cutlass Calais | 2.5L | L4 | N/A | — |
| 1989 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1989 | Oldsmobile | Cutlass Cruiser | 2.5L | L4 | N/A | — |
| 1989 | Pontiac | 6000 | 2.5L | L4 | N/A | — |
| 1989 | Pontiac | Grand Am | 2.5L | L4 | N/A | — |
| 1989 | Pontiac | LeMans | 2.0L | L4 | N/A | — |
| 1989 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1989 | Pontiac | Optima | 2.0L | L4 | N/A | — |
| 1989 | Pontiac | Sunbird | 2.0L | L4 | N/A | — |
| 1988 | Buick | Century | 2.5L | L4 | N/A | — |
| 1988 | Buick | Skyhawk | 2.0L | L4 | N/A | — |
| 1988 | Buick | Skylark | 2.5L | L4 | N/A | — |
| 1988 | Chevrolet | Astro | 2.5L | L4 | N/A | — |
| 1988 | Chevrolet | Celebrity | 2.5L | L4 | N/A | — |
| 1988 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1988 | Chevrolet | S10 Blazer | 2.5L | L4 | N/A | — |
| 1988 | GMC | S15 | 2.5L | L4 | N/A | — |
| 1988 | GMC | S15 Jimmy | 2.5L | L4 | N/A | — |
| 1988 | GMC | Safari | 2.5L | L4 | N/A | — |
| 1988 | Oldsmobile | Cutlass Calais | 2.5L | L4 | N/A | — |
| 1988 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1988 | Oldsmobile | Cutlass Cruiser | 2.5L | L4 | N/A | — |
| 1988 | Oldsmobile | Firenza | 2.0L | L4 | N/A | — |
| 1988 | Pontiac | 6000 | 2.5L | L4 | N/A | — |
| 1988 | Pontiac | Fiero | 2.5L | L4 | N/A | — |
| 1988 | Pontiac | Grand Am | 2.5L | L4 | N/A | — |
| 1988 | Pontiac | LeMans | 1.6L | L4 | N/A | — |
| 1988 | Pontiac | Optima | 2.0L | L4 | N/A | — |
| 1988 | Pontiac | Sunbird | 2.0L | L4 | N/A | — |
| 1987 | Buick | Century | 2.5L | L4 | N/A | — |
| 1987 | Buick | Skyhawk | 2.0L | L4 | N/A | — |
| 1987 | Buick | Skylark | 2.5L | L4 | N/A | — |
| 1987 | Chevrolet | Astro | 2.5L | L4 | N/A | — |
| 1987 | Chevrolet | Celebrity | 2.5L | L4 | N/A | — |
| 1987 | Chevrolet | S10 | 2.5L | L4 | N/A | — |
| 1987 | Chevrolet | S10 Blazer | 2.5L | L4 | N/A | — |
| 1987 | GMC | S15 | 2.5L | L4 | N/A | — |
| 1987 | GMC | S15 Jimmy | 2.5L | L4 | N/A | — |
| 1987 | GMC | Safari | 2.5L | L4 | N/A | — |
| 1987 | Oldsmobile | Calais | 2.5L | L4 | N/A | — |
| 1987 | Oldsmobile | Cutlass Ciera | 2.5L | L4 | N/A | — |
| 1987 | Oldsmobile | Cutlass Cruiser | 2.5L | L4 | N/A | — |
| 1987 | Oldsmobile | Firenza | 2.0L | L4 | N/A | — |
| 1987 | Pontiac | 6000 | 2.5L | L4 | N/A | — |
| 1987 | Pontiac | Fiero | 2.5L | L4 | N/A | — |
| 1987 | Pontiac | Grand Am | 2.5L | L4 | N/A | — |
| 1987 | Pontiac | Sunbird | 2.0L | L4 | N/A | — |
