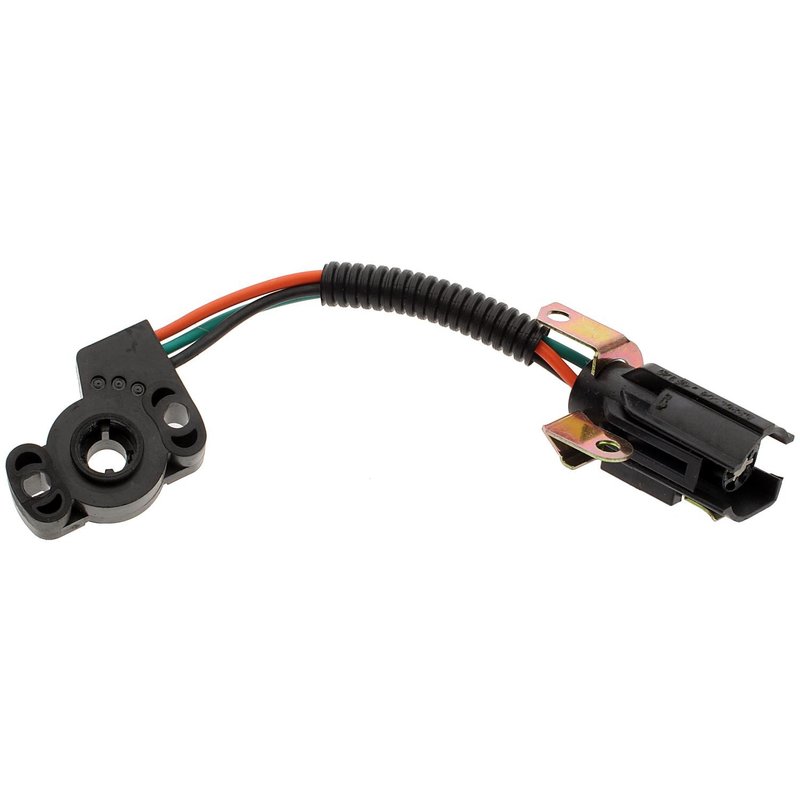

Standard Ignition TH53 Throttle Position Sensor

Brand Standard Ignition TH53
Connector Gender Male
Connector Type Bolt On
Terminal Gender Female
Terminal Type Bullet
Fits Mercury · 1 vehicle

OE-style output. Maintains a fixed installed output instead of an adjustable design.

Easy installation. Integral rotor bearings and return springs simplify setup.

Quality-tested sensor. End-of-line testing validates output voltages for reliable operation.

Cross-references Dorman - HELP 14015, Four Seasons 75309 and 2-29935 for the same application. See all 8.

$60.64Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $60.64
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for Mercury Capri

Standard Ignition TH53 is a throttle position sensor built for precise throttle feedback and stable electrical output. It is a direct-fit emission control sensor for the 1986 Mercury Capri and uses a bolt-on connector style with a 3-terminal female bullet connection.

Key Features

  • Maintains a specific installed output to match OE calibration
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials help reduce contact resistance
  • Integral rotor bearings and return springs support straightforward installation
  • End-of-line testing validates output voltage across thousands of data points
  • Standard Ignition TH53 cross-references Dorman - HELP 14015 for the same application

Detailed Description

Standard Ignition TH53 is a throttle position sensor for the 1986 Mercury Capri that reports throttle angle to the engine control system. Accurate TPS output is important for fuel delivery, idle quality, and throttle response. This sensor uses a fixed installed output approach rather than an adjustable consolidated design, helping maintain OE-style signal consistency after installation. The internal circuit materials and contact alloys are selected to support stable performance and long service life in emission control service.

For technicians and owners searching for a 1986 Mercury Capri throttle position sensor, Standard Ignition TH53 provides a direct replacement option with the correct connector layout and terminal configuration. The part number TH53 is also useful when cross-referencing service catalogs for Mercury Capri emission control sensor replacement.

What It Helps Solve

  • Erratic throttle signal readings
  • Hesitation during acceleration
  • Unstable idle caused by incorrect TPS output
  • Check engine light concerns related to throttle position feedback
  • Poor drivability from worn sensor contacts

Installation Notes and Tips

Verify connector style, terminal count, and mounting style before installation. This sensor uses one male connector interface with a bolt-on design and female bullet terminals. Confirm throttle body alignment and inspect the harness connector for corrosion or damaged terminals before final assembly. After installation, clear diagnostic trouble codes and confirm throttle signal output with a scan tool or multimeter.

Quality Assurance

Standard Ignition manufactures emission control components with process control from component selection through finished product testing. TH53 is individually validated at the end of production to confirm output voltage performance and consistent operation.

This part fits 1 vehicle
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
1986MercuryCapri3.8LV6N/A—
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - HELP — 14015Four Seasons — 753092-2993519110529E5ZZ9B989BEC3325ECA1704TPS202
