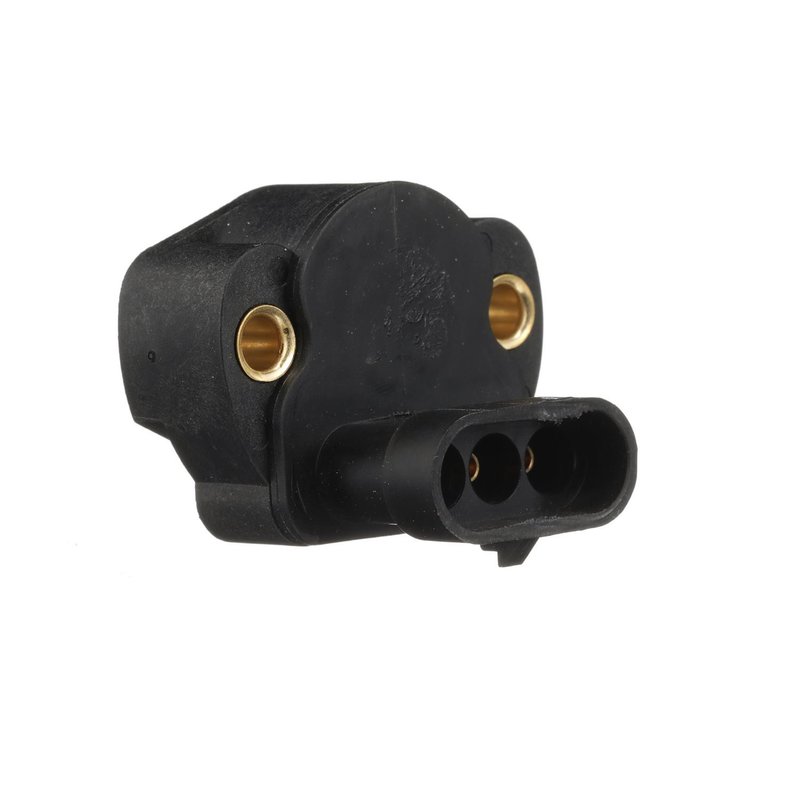

Standard Ignition TH59 Throttle Position Sensor
| Brand | Standard Ignition TH59 |
|---|---|
| Connector Gender | Male |
| Terminal Gender | Female |
| Fits | Chrysler, Dodge, and Plymouth · 84 vehicles |
OE-style output. Maintains fixed installed output to match original equipment.
Stable sensor design. Flexible film or ceramic circuits help prevent electrical drift.
Easy installation. Integral rotor bearings and return springs simplify setup.
Cross-references Carlson 14103, T Series TH59T and Walker Products 200-1006 for the same application. See all 15.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for Chrysler and Dodge
Standard Ignition TH59 is a throttle position sensor built for direct OE-style output on select Chrysler, Dodge, and Plymouth applications. It uses a fixed installed output design, helping maintain the correct signal profile for throttle response and engine management on vehicles such as the 1990 Dodge Dakota, 1989-1990 Dodge Caravan, and 1988-1989 Plymouth Voyager.
Key Features
- Male connector with 1 connector and 3 female terminals
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and extended service life
- Integral rotor bearings and return springs for straightforward installation
- End-of-line testing with thousands of data points to verify output voltage
- Standard Ignition TH59 cross-references Walker Products 200-1006 and Carlson 14103 for the same application
Detailed Description
The TH59 throttle position sensor is engineered to deliver a stable throttle signal across a wide range of late-1980s and 1990 Chrysler, Dodge, and Plymouth vehicles. By using a non-adjustable installed output design, it helps preserve OE-style calibration rather than relying on a consolidated adjustable layout. This matters on applications such as the 1990 Chrysler Daytona, 1988-1990 Dodge B250, and 1987-1990 Plymouth Voyager, where accurate throttle feedback is critical for drivability and fuel control. Standard Ignition TH59 is part of a broad sensor coverage lineup for service professionals who need a direct replacement throttle position sensor with consistent electrical performance.
What It Helps Address
- Erratic throttle signal output
- Hesitation or poor throttle response
- Rough idle related to incorrect TPS voltage
- Check engine light concerns tied to throttle position feedback
- Driveability issues on Chrysler, Dodge, and Plymouth fuel-injected applications
Installation Notes and Tips
Verify connector style, terminal count, and sensor orientation before installation. This part uses a male connector with 3 female terminals, so the harness side must match. Confirm the throttle body and mounting pattern against the original sensor on your vehicle, including 1988-1990 Dodge D150, 1989 Dodge Raider, and 1989-1990 Chrysler Dynasty applications. After installation, clear any stored codes and confirm throttle voltage sweep with a scan tool or multimeter.
Quality Assurance
Standard Ignition maintains manufacturing quality control from component selection through finished product testing. Each sensor is validated at the end of the line to confirm output voltage performance, and the design uses stable circuit materials and durable contact alloys to support consistent operation over time.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Chrysler | Daytona | 3.0L | V6 | — | N/A | — |
| 1990 | Chrysler | Dynasty | 3.0L | V6 | — | N/A | — |
| 1990 | Chrysler | LeBaron | 3.0L | V6 | — | N/A | — |
| 1990 | Dodge | B150 | — | — | — | N/A | — |
| 1990 | Dodge | B250 | — | — | — | N/A | — |
| 1990 | Dodge | B350 | — | — | — | N/A | — |
| 1990 | Dodge | Caravan | 3.0L | V6 | — | N/A | — |
| 1990 | Dodge | D150 | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | D150 | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | D150 | 3.9L | V6 | — | N/A | — |
| 1990 | Dodge | D250 | 3.9L | V6 | GAS | N/A | — |
| 1990 | Dodge | D250 | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | D250 | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | D350 | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | Dakota | 3.9L | V6 | — | N/A | — |
| 1990 | Dodge | Dakota | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | Daytona | 3.0L | V6 | — | N/A | — |
| 1990 | Dodge | Monaco | 3.0L | V6 | — | N/A | — |
| 1990 | Dodge | Ramcharger | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | Ramcharger | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | Spirit | 3.0L | V6 | — | N/A | — |
| 1990 | Dodge | W150 | 3.9L | V6 | GAS | N/A | — |
| 1990 | Dodge | W150 | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | W150 | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | W250 | 5.2L | V8 | — | N/A | — |
| 1990 | Dodge | W250 | 5.9L | V8 | — | N/A | — |
| 1990 | Dodge | W350 | 5.9L | V8 | — | N/A | — |
| 1990 | Plymouth | Acclaim | 3.0L | V6 | — | N/A | — |
| 1990 | Plymouth | Voyager | 3.0L | V6 | — | N/A | — |
| 1989 | Chrysler | Dynasty | 3.0L | V6 | — | N/A | — |
| 1989 | Chrysler | New Yorker | 3.0L | V6 | — | N/A | — |
| 1989 | Dodge | B150 | — | — | — | N/A | — |
| 1989 | Dodge | B250 | — | — | — | N/A | — |
| 1989 | Dodge | B350 | — | — | — | N/A | — |
| 1989 | Dodge | Caravan | 3.0L | V6 | — | N/A | — |
| 1989 | Dodge | D100 | 3.9L | V6 | — | N/A | — |
| 1989 | Dodge | D100 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | D150 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | D150 | 3.9L | V6 | — | N/A | — |
| 1989 | Dodge | D150 | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | D250 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | D250 | 3.9L | V6 | GAS | N/A | — |
| 1989 | Dodge | D250 | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | D350 | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | Dakota | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | Dakota | 3.9L | V6 | — | N/A | — |
| 1989 | Dodge | Grand Caravan | 3.0L | V6 | — | N/A | — |
| 1989 | Dodge | Raider | 3.0L | V6 | — | N/A | — |
| 1989 | Dodge | Ramcharger | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | Ramcharger | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | Spirit | 3.0L | V6 | — | N/A | — |
| 1989 | Dodge | W100 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | W100 | 3.9L | V6 | GAS | N/A | — |
| 1989 | Dodge | W150 | 3.9L | V6 | GAS | N/A | — |
| 1989 | Dodge | W150 | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | W150 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | W250 | 5.2L | V8 | — | N/A | — |
| 1989 | Dodge | W250 | 5.9L | V8 | — | N/A | — |
| 1989 | Dodge | W350 | 5.9L | V8 | — | N/A | — |
| 1989 | Plymouth | Acclaim | 3.0L | V6 | — | N/A | — |
| 1989 | Plymouth | Grand Voyager | 3.0L | V6 | — | N/A | — |
| 1989 | Plymouth | Voyager | 3.0L | V6 | — | N/A | — |
| 1988 | Chrysler | New Yorker | 3.0L | V6 | — | N/A | — |
| 1988 | Dodge | B150 | — | — | — | N/A | — |
| 1988 | Dodge | B250 | — | — | — | N/A | — |
| 1988 | Dodge | B350 | — | — | — | N/A | — |
| 1988 | Dodge | Caravan | 3.0L | V6 | — | N/A | — |
| 1988 | Dodge | D100 | 5.9L | V8 | — | N/A | — |
| 1988 | Dodge | D100 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | D100 | 3.9L | V6 | — | N/A | — |
| 1988 | Dodge | D150 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | D250 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | D350 | 5.9L | V8 | — | N/A | — |
| 1988 | Dodge | Dakota | 3.9L | V6 | — | N/A | — |
| 1988 | Dodge | Grand Caravan | 3.0L | V6 | — | N/A | — |
| 1988 | Dodge | Ramcharger | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | W100 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | W150 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | W250 | 5.2L | V8 | — | N/A | — |
| 1988 | Dodge | W350 | — | — | — | N/A | — |
| 1988 | Plymouth | Grand Voyager | 3.0L | V6 | — | N/A | — |
| 1988 | Plymouth | Voyager | 3.0L | V6 | — | N/A | — |
| 1987 | Dodge | Caravan | 3.0L | V6 | — | N/A | — |
| 1987 | Plymouth | Voyager | 3.0L | V6 | — | N/A | — |
