Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

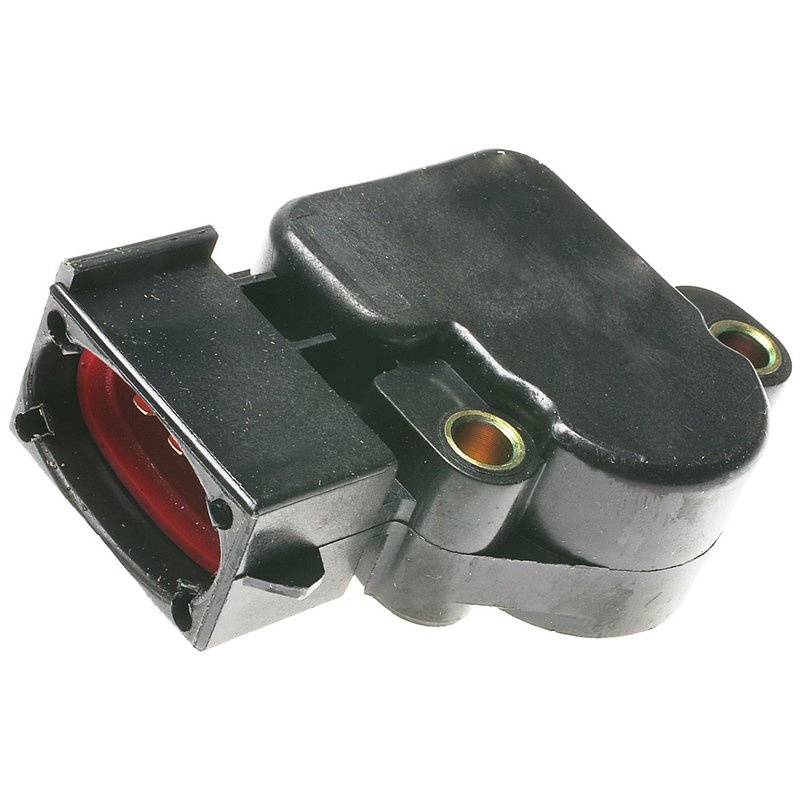

Standard Ignition TH63 Throttle Position Sensor
| Brand | Standard Ignition TH63 |
|---|---|
| Connector Gender | Female |
| Connector Type | Plug In |
| Terminal Gender | Male |
| Terminal Type | Blade Terminals |
| Fits | Ford, Mercury, and Lincoln · 41 vehicles |
OE-style output. Maintains installed output to match original specifications.
Easy installation. Integral rotor bearings and return springs simplify setup.
Plug-in connector. Female connector with three blade terminals.
Cross-references AP Exhaust 38069, Carlson 14028 and Four Seasons 75370 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for Ford, Mercury, and Lincoln
Standard Ignition TH63 is a throttle position sensor built for direct OE-style output on select Ford, Mercury, and Lincoln applications. It uses a female plug-in connector with 3 male blade terminals for straightforward electrical connection and consistent signal delivery.
Key Features
- Maintains a specific installed output to match OE calibration
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials for low resistance and extended service life
- Integral rotor bearings and return springs for easier installation
- End-of-line tested with thousands of data points to verify output voltage
- Female connector, plug-in style, with 3 male blade terminals
Detailed Description
The Standard Ignition TH63 throttle position sensor is engineered for vehicles that require accurate throttle angle feedback to the engine control system. By maintaining a fixed installed output rather than an adjustable consolidated design, this sensor supports stable signal behavior on applications such as 1993-1995 Ford Taurus, 1994-1995 Ford Sable, and 1993-1994 Lincoln Continental. It also covers additional Ford, Mercury, and Lincoln models including Thunderbird, Cougar, Escort, and Sable across the listed years. This part cross-references Walker Products 200-1023 for the same application.
What It Helps Address
- Throttle position sensor fault codes
- Erratic or inconsistent throttle signal output
- Rough idle related to incorrect throttle feedback
- Delayed throttle response from a worn sensor
- Driveability issues caused by unstable TPS voltage
Installation Notes and Tips
Verify connector style, terminal count, and OE reference before installation. This TH63 uses a female plug-in connector with 3 male blade terminals, so the harness connection should match the original sensor layout. Confirm the vehicle application by year and model, especially on 1993-1995 Ford Taurus, 1994-1995 Ford Sable, and 1993-1994 Lincoln Continental listings with OE No. E7AF-AB, AC.
Quality Assurance
Standard Ignition manufactures emission control components with process control from component selection through finished product testing. Each TH63 throttle position sensor is validated at the end of the line to confirm output voltage performance before it leaves the factory.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1995 | Ford | Sable | 3.8L | V6 | N/A | — |
| 1995 | Ford | Taurus | — | — | N/A | OE No. E7AF-AB, AC |
| 1995 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1994 | Ford | Sable | 3.8L | V6 | N/A | — |
| 1994 | Ford | Taurus | — | — | N/A | OE No. E7AF-AB, AC |
| 1994 | Lincoln | Continental | 3.8L | V6 | N/A | OE No. E7AF-AB, AC |
| 1994 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1993 | Ford | Taurus | — | — | N/A | OE No. E7AF-AB, AC |
| 1993 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1993 | Lincoln | Continental | 3.8L | V6 | N/A | OE No. E7AF-AB, AC |
| 1993 | Mercury | Cougar | 3.8L | V6 | N/A | OE No. E7AF-AB, AC |
| 1993 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1992 | Ford | Taurus | 3.8L | V6 | N/A | — |
| 1992 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1992 | Lincoln | Continental | — | — | N/A | — |
| 1992 | Mercury | Cougar | 3.8L | V6 | N/A | — |
| 1992 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1991 | Ford | Taurus | 3.8L | V6 | N/A | — |
| 1991 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1991 | Lincoln | Continental | — | — | N/A | — |
| 1991 | Mercury | Cougar | 3.8L | V6 | N/A | — |
| 1991 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1990 | Ford | Cougar | 3.8L | V6 | N/A | — |
| 1990 | Ford | Taurus | 3.8L | V6 | N/A | — |
| 1990 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1990 | Lincoln | Continental | — | — | N/A | — |
| 1990 | Mercury | Cougar | 3.8L | V6 | N/A | — |
| 1990 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1989 | Ford | Escort | 1.9L | L4 | N/A | — |
| 1989 | Ford | Taurus | 3.8L | V6 | N/A | — |
| 1989 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1989 | Lincoln | Continental | — | — | N/A | — |
| 1989 | Mercury | Cougar | 3.8L | V6 | N/A | — |
| 1989 | Mercury | Sable | 3.8L | V6 | N/A | — |
| 1988 | Ford | Cougar | 3.8L | V6 | N/A | — |
| 1988 | Ford | Escort | 1.9L | L4 | N/A | — |
| 1988 | Ford | Taurus | 3.8L | V6 | N/A | — |
| 1988 | Ford | Thunderbird | 3.8L | V6 | N/A | — |
| 1988 | Lincoln | Continental | — | — | N/A | — |
| 1988 | Mercury | Cougar | 3.8L | V6 | N/A | — |
| 1988 | Mercury | Sable | 3.8L | V6 | N/A | — |
