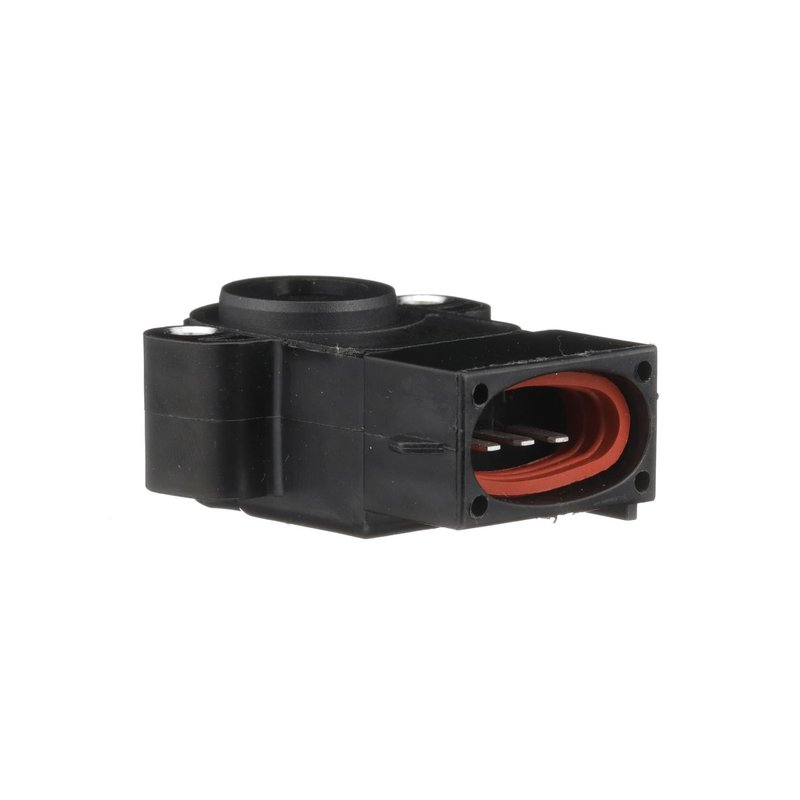

Standard Ignition TH77 Throttle Position Sensor

Brand Standard Ignition TH77
Connector Gender Female
Terminal Gender Male
Fits Ford and Mazda · 14 vehicles

OE-style output. Maintains specific installed output to match OE, not adjustable designs.

Stable sensor circuits. Flexible film or ceramic substrates help prevent electrical performance drift.

Easy installation. Integral rotor bearings and return springs simplify setup.

Cross-references Carlson 7234, Carlson 14037 and Four Seasons 75489 for the same application. See all 16.

$37.88Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $37.88
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Throttle Position Sensor for Ford and Mazda

Standard Ignition TH77 is a throttle position sensor built for direct OE-style output on select Ford and Mazda applications. It uses a female 1-connector, 3-terminal design and is engineered for stable signal delivery in throttle position monitoring.

Key Features

  • Maintains a specific installed output to match OE calibration
  • Flexible polyimide film or ceramic-based circuit construction for dimensional stability
  • Noble metal contact materials for low resistance and extended service life
  • Integral rotor bearings and return springs for straightforward installation
  • End-of-line tested with thousands of data points to verify output voltage
  • Female connector, 1 connector, 3 male terminals

Detailed Description

The Standard Ignition TH77 throttle position sensor is built for vehicles that rely on accurate throttle angle feedback for fuel and drivability control. It is a direct-fit emission control sensor for applications including 1993-1995 Ford Aerostar, 1993-1995 Ford Explorer, 1993-1994 Ford Ranger, 1994 Mazda B4000, and 1991-1994 Mazda Navajo. This part number, TH77, is also referenced for 1995 Ford Explorer OE No. F37F-BA applications.

This part cross-references Gates 38076 and Walker Products 200-1028 for the same application.

What It Helps Fix

  • Erratic throttle position signal readings
  • Hesitation or poor throttle response
  • Rough idle related to incorrect throttle input
  • Check engine light conditions tied to TPS faults
  • Driveability issues caused by worn sensor contacts

Installation Notes and Tips

Verify connector style and terminal count before installation. The TH77 uses a female connector with 3 male terminals, so the harness connection should match the vehicle’s original sensor layout. Confirm the throttle body mounting and OE reference number when servicing 1995 Ford Explorer applications, and check emissions configuration on 1992 Ford Aerostar models equipped with Federal Emissions.

Quality Assurance

Standard Ignition controls manufacturing from component selection through finished product testing. Each TH77 sensor is validated at the end of the line to confirm output voltage performance and consistent operation.

This part fits 14 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypeLitersCylindersPositionNotes
1995FordAerostar—4.0LV6N/A—
1995FordExplorer———N/AOE No. F37F-BA
1994FordAerostar—4.0LV6N/A—
1994FordExplorer———N/A—
1994FordRanger—4.0LV6N/A—
1994MazdaB4000—4.0LV6N/A—
1994MazdaNavajo—4.0LV6N/A—
1993FordAerostar—4.0LV6N/A—
1993FordExplorer———N/A—
1993FordRanger—4.0LV6N/A—
1993MazdaNavajo—4.0LV6N/A—
1992FordAerostarAWD4.0LV6N/ACompatible with vehicles equipped with Federal Emissions.
1992MazdaNavajo—4.0LV6N/A—
1991MazdaNavajo—4.0LV6N/A—
Directly replaces or cross-references 16 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Carlson — 7234Carlson — 14037Four Seasons — 75489Gates — 38076Walker Products — 200-10282-19092141-276213-213399034CX1461EC3024ECC1073F07F9B989BASS10446TPS225ZZL013SL0
