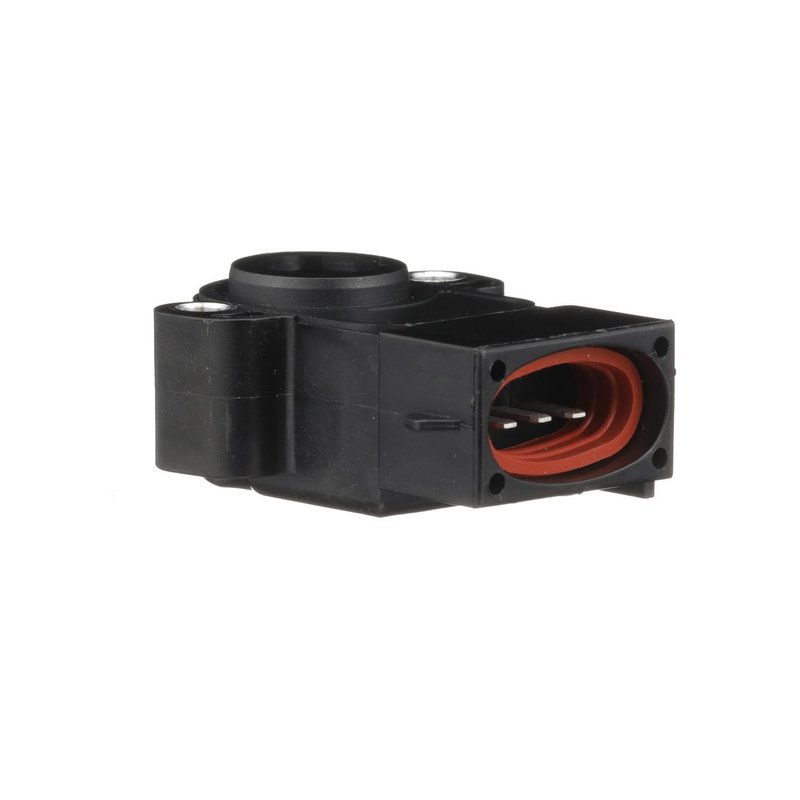

Standard Ignition TH80 Throttle Position Sensor
| Brand | Standard Ignition TH80 |
|---|---|
| Connector Gender | Female |
| Terminal Gender | Male |
| Fits | Ford, Mazda, Lincoln, and Mercury · 31 vehicles |
OE-style output. Maintains specific installed output to match original equipment.
Stable sensor design. Flexible film or ceramic substrates help prevent electrical drift.
Easy installation. Integral rotor bearings and return springs simplify setup.
Cross-references Four Seasons 75503, SKF 14035 and Walker Products 200-1348 for the same application. See all 18.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Throttle Position Sensor for OE-Style Signal Control
Standard Ignition TH80 is a throttle position sensor built for direct replacement service on select Ford, Lincoln, Mercury, and Mazda applications. It uses a fixed installed output to match OE calibration, helping maintain accurate throttle signal feedback for drivability and emissions control.
Key Features
- Female connector with 1 connector and 3 male terminals
- Fixed-output design matches OE rather than adjustable consolidated layouts
- Flexible polyimide film or ceramic-based circuit construction for dimensional stability
- Noble metal contact materials help maintain low resistance over service life
- Integral rotor bearings and return springs support straightforward installation
- End-of-line testing validates output voltage across thousands of data points
- Standard Ignition TH80 coverage includes select Ford F-250, Ford F-350, Ford Mustang, and Lincoln Town Car applications
Detailed Description
The Standard Ignition TH80 throttle position sensor is engineered to deliver consistent throttle angle feedback for engine management systems that rely on precise voltage signals. By using a fixed installed output, it follows OE-style calibration requirements instead of adjustable consolidated designs. That approach helps maintain stable electrical performance, while the sensor’s printed circuit construction and quality contact alloys support long-term signal integrity. This TH80 application coverage includes 1991-1997 Ford, Lincoln, Mercury, and Mazda vehicles, including 1991-1993 Ford Mustang, 1994 Ford Ranger, and 1997 Ford F-250 HD.
This part cross-references Four Seasons 75503 for the same application.
What It Helps Address
- Erratic throttle signal output
- Hesitation during acceleration
- Unstable idle caused by incorrect throttle feedback
- Check engine light concerns related to throttle position sensing
- Driveability issues on Ford F-250, Ford F-350, and Lincoln Town Car applications
Installation Notes and Tips
Verify connector style and terminal count before installation. This sensor uses a female connector with 3 male terminals, so the harness connection must match the OE layout. Confirm the vehicle’s emissions configuration where noted, including Federal Emissions coverage on select 1997 Ford F-250 HD and Ford F-350 applications. After installation, clear diagnostic codes and verify throttle signal output with a scan tool or voltmeter.
Quality Assurance
Standard Ignition maintains complete quality control through the manufacturing process, from component selection to finished product. Each TH80 sensor is end-of-line tested to confirm output voltage performance before release.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Ford | F-250 HD | 7.5L | V8 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1997 | Ford | F-350 | 7.5L | V8 | N/A | Compatible with vehicles equipped with Federal Emissions. |
| 1997 | Mazda | B2300 | 2.3L | L4 | N/A | — |
| 1996 | Ford | F-250 | 7.5L | V8 | N/A | OE No. F2AF-AA |
| 1996 | Ford | F-350 | 7.5L | V8 | N/A | OE No. F2AF-AA |
| 1996 | Mazda | B2300 | 2.3L | L4 | N/A | — |
| 1995 | Ford | E-350 Econoline | 7.5L | V8 | N/A | — |
| 1995 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | — |
| 1995 | Ford | F-250 | 7.5L | V8 | N/A | — |
| 1995 | Ford | F-350 | 7.5L | V8 | N/A | — |
| 1995 | Lincoln | Mark VIII | — | — | N/A | — |
| 1995 | Mazda | B2300 | 2.3L | L4 | N/A | — |
| 1994 | Ford | Crown Victoria | — | — | N/A | — |
| 1994 | Ford | Ranger | 2.3L | L4 | N/A | — |
| 1994 | Lincoln | Mark VIII | — | — | N/A | OE No. F2AF-AA |
| 1994 | Lincoln | Town Car | — | — | N/A | — |
| 1994 | Mazda | B2300 | 2.3L | L4 | N/A | — |
| 1994 | Mercury | Grand Marquis | — | — | N/A | — |
| 1993 | Ford | Crown Victoria | — | — | N/A | — |
| 1993 | Ford | E-350 Econoline | 7.5L | V8 | N/A | — |
| 1993 | Ford | E-350 Econoline Club Wagon | 7.5L | V8 | N/A | — |
| 1993 | Ford | Mustang | 2.3L | L4 | N/A | OE No. F2AF-AA |
| 1993 | Lincoln | Mark VIII | — | — | N/A | OE No. F2AF-AA |
| 1993 | Lincoln | Town Car | — | — | N/A | OE No. F2AF-AA |
| 1993 | Mercury | Grand Marquis | — | — | N/A | OE No. F2AF-AA |
| 1992 | Ford | Crown Victoria | — | — | N/A | — |
| 1992 | Ford | Mustang | 2.3L | L4 | N/A | OE No. F2AF-AA |
| 1992 | Lincoln | Town Car | — | — | N/A | OE No. F2AF-AA |
| 1992 | Mercury | Grand Marquis | — | — | N/A | OE No. F2AF-AA |
| 1991 | Ford | Mustang | 2.3L | L4 | N/A | OE No. F2AF-AA |
| 1991 | Lincoln | Town Car | — | — | N/A | OE No. F2AF-AA |
