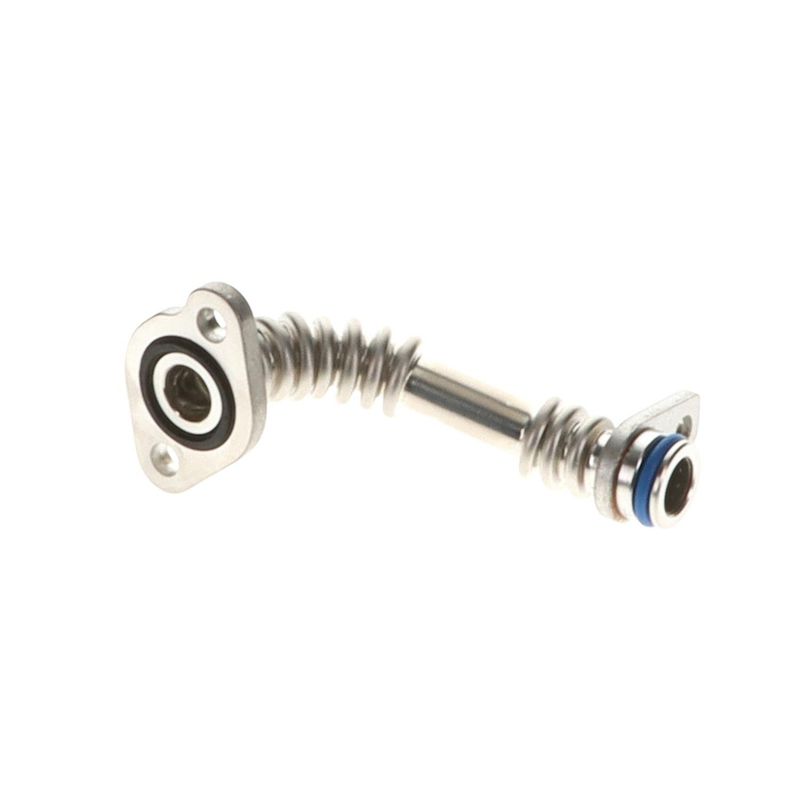

Standard Ignition TIH190 Turbocharger Oil Line - Return
| Brand | Standard Ignition TIH190 |
|---|---|
| Position | Return |
| Configuration | One piece |
| Contents | Oil line |
| Gasket or Seal Included | No |
| Hardware Included | No |
| System Type | Gas |
| Fits | Ford and Lincoln · 25 vehicles |
One-piece design. Simplifies turbocharger oil line replacement service.
Gas system use. Built for turbocharger oil routing in gas applications.
Service part only. Oil line contents with no gasket or hardware included.
Cross-references Dorman - OE Solutions 667-638, Gates TL180 and Rotomaster S1005202N for the same application. See all 7.
Turbocharger Oil Line Overview
Standard Ignition TIH190 is a one-piece turbocharger oil line for gas applications. It is built for return-side service and is listed for select Ford and Lincoln vehicles, including Fusion, Escape, Edge, Continental, MKZ, MKC, and MKX applications.
Key Features
- One-piece oil line construction for a direct replacement style service part.
- Gas system application for turbocharger oil routing.
- Contents include the oil line only.
- Gasket or seal is not included.
- Hardware is not included.
Detailed Description
This turbocharger oil line is identified by part number TIH190 and is used on return-side turbocharger oil routing applications. The one-piece configuration supports a clean replacement path for service work on turbocharged systems, and the part is cataloged for multiple Ford and Lincoln models. If you are servicing a Ford Fusion, Ford Escape, or Ford Edge, or a Lincoln Continental, MKZ, MKC, or MKX, TIH190 is the relevant turbocharger oil line for the listed fitments.
This part cross-references Dorman - OE Solutions 667-638 and Gates TL180 for the same application.
Common Issues This Part May Address
- Oil seepage at the turbocharger return line.
- Cracked or damaged oil line tubing.
- Restricted turbocharger oil return flow.
- Service replacement for a leaking turbocharger oil line.
Installation Notes and Tips
Verify the vehicle’s turbocharger oil line routing and return-side configuration before installation. Confirm the part number TIH190 against the existing line and match the application to the listed Ford and Lincoln fitments. Because gasket or seal and hardware are not included, inspect the sealing surfaces and related components during service.
Quality Assurance
Standard Ignition catalogs TIH190 as a service replacement part for the specified turbocharger oil line applications. Fitment is listed for 2015-2020 Ford and Lincoln return-side applications, including Fusion, Escape, Edge, Continental, MKZ, MKC, and MKX.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2020 | Ford | Fusion | 2.0L | L4 | Return | — |
| 2020 | Lincoln | Continental | 2.7L | V6 | Return | — |
| 2020 | Lincoln | MKZ | 2.0L | L4 | Return | — |
| 2019 | Ford | Escape | 2.0L | L4 | Return | — |
| 2019 | Ford | Fusion | 2.0L | L4 | Return | — |
| 2019 | Lincoln | Continental | 2.7L | V6 | Return | — |
| 2019 | Lincoln | MKC | 2.0L | L4 | Return | — |
| 2019 | Lincoln | MKZ | 2.0L | L4 | Return | — |
| 2018 | Ford | Edge | 2.0L | L4 | Return | — |
| 2018 | Ford | Escape | 2.0L | L4 | Return | — |
| 2018 | Ford | Fusion | 2.0L | L4 | Return | — |
| 2018 | Lincoln | Continental | 2.7L | V6 | Return | — |
| 2018 | Lincoln | MKC | 2.0L | L4 | Return | — |
| 2018 | Lincoln | MKX | 2.7L | V6 | Return | — |
| 2018 | Lincoln | MKZ | 2.0L | L4 | Return | — |
| 2017 | Ford | Edge | 2.0L | L4 | Return | — |
| 2017 | Ford | Escape | 2.0L | L4 | Return | — |
| 2017 | Ford | Fusion | 2.0L | L4 | Return | — |
| 2017 | Lincoln | Continental | 2.7L | V6 | Return | — |
| 2017 | Lincoln | MKC | 2.0L | L4 | Return | — |
| 2017 | Lincoln | MKX | 2.7L | V6 | Return | — |
| 2017 | Lincoln | MKZ | 2.0L | L4 | Return | — |
| 2016 | Ford | Edge | 2.0L | L4 | Return | — |
| 2016 | Lincoln | MKZ | 2.0L | L4 | Return | — |
| 2015 | Ford | Edge | 2.0L | L4 | Return | — |
