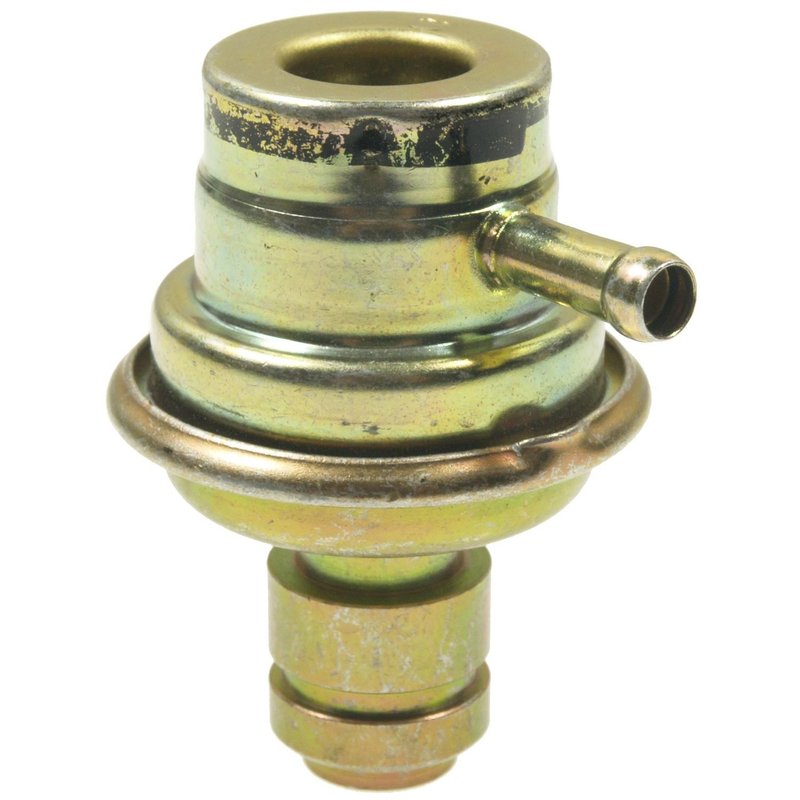

Standard Ignition TM-55 Automatic Transmission Vacuum Modulator

Automatic Transmission Vacuum Modulator for Ford and Mercury

The Standard Ignition TM-55 automatic transmission vacuum modulator helps match shift timing to engine load for smoother automatic transmission operation. It is built with a nylon-reinforced diaphragm for durability and high-temperature oil seals for a secure, leak-resistant fit.

• Performance-calibrated to help align transmission shift points with engine load
• Nylon-reinforced diaphragm for tear-resistant operation
• High-temperature oil seals for proper fit and leak control
• 100% end-of-line tested for performance validation
• Direct replacement for select Ford and Mercury automatic transmission applications

Detailed Application Overview

Standard Ignition TM-55 is an automatic transmission vacuum modulator used on select Ford Mustang, Mercury Capri, Ford LTD, and related rear-wheel-drive applications. It is also listed for Ford Fairmont, Mercury Zephyr, Ford Pinto, Mercury Bobcat, Ford Thunderbird, Mercury Cougar, Ford Courier, Ford Ranger, and Mercury Marquis models across the 1974-1986 model years. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Harsh or delayed automatic transmission shift timing
• Shift behavior that does not track engine vacuum or load correctly
• Vacuum leaks at the modulator connection
• Diaphragm wear that affects transmission control
• Fitment issues on select Ford and Mercury automatic transmissions

Installation Notes and Tips

Verify the transmission case style and vacuum modulator location before installation. Compare the original unit to the TM-55 and confirm the vehicle application by year, make, model, and emissions configuration where noted. For best results, inspect the vacuum hose and related fittings for cracks, soft spots, or leaks before replacing the modulator.

Quality Assurance

The TM-55 undergoes 100% end-of-line testing to confirm performance before it leaves the factory. Standard Ignition uses a reinforced diaphragm and high-temperature sealing materials to support consistent operation in demanding transmission environments.
