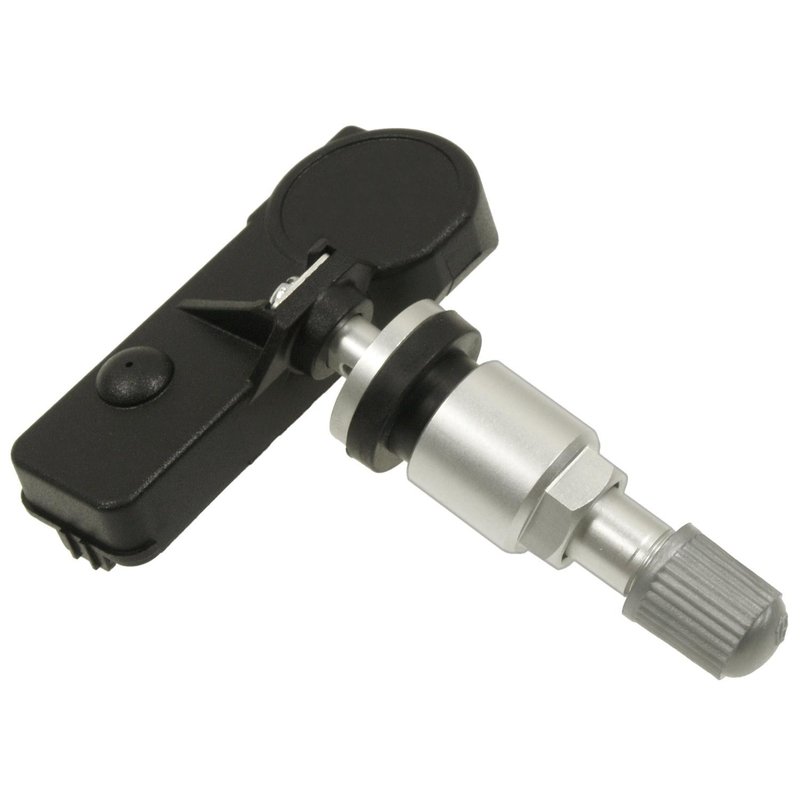

Standard Ignition TPM101A Tire Pressure Monitoring System Sensor

Reliable Tire Pressure Monitoring for Dodge, Jeep, and Mitsubishi

The Standard Ignition TPM101A Tire Pressure Monitoring System (TPMS) Sensor provides accurate, real-time tire pressure data for select Dodge, Jeep, and Mitsubishi vehicles. Designed to clamp securely onto the wheel, this sensor helps maintain optimal tire performance and safety.

• Battery-powered sensor for consistent operation
• Bolt-on connector type for secure attachment
• Nickel coated core for enhanced durability
• Operates at 315 MHz frequency for reliable signal transmission
• Metal inflation valve type with included mounting hardware
• Clamp-in mounting method located on the wheel
• Real-time pressure signal monitoring
• Sensor nut torque specification: 58 in/lbs
• Torx bolt torque specification: 11.5 in/lbs

Technical Details and Compatibility

The Standard Ignition TPM101A sensor is engineered to replace original equipment sensors on specific models including Dodge Dakota, Jeep Liberty, Jeep Nitro, Mitsubishi Raider, and Ram 1500, 2500, and 3500 trucks. Although it is not an OEM replacement, it meets stringent quality standards to ensure reliable performance. The sensor’s nickel coated core improves resistance to corrosion, while the metal inflation valve enhances durability under various driving conditions. Operating at a 315 MHz frequency, the sensor transmits accurate tire pressure data in real time to the vehicle’s monitoring system.

Common Applications and Problem Solving

• Detects low tire pressure to prevent uneven tire wear
• Alerts for slow leaks or punctures before they become critical
• Maintains proper tire inflation for improved fuel efficiency
• Supports vehicle safety systems by providing accurate tire data
• Replaces faulty or damaged TPMS sensors on compatible vehicles

Installation Notes and Tips

Installation requires clamping the sensor securely onto the wheel using the included mounting hardware. Proper torque settings are critical: sensor nut torque should be 58 in/lbs and Torx bolt torque should be 11.5 in/lbs to ensure a secure fit and prevent sensor damage. The bolt-on connector type simplifies the installation process. It is recommended to verify compatibility with your specific Dodge Dakota, Jeep Liberty, Jeep Nitro, Mitsubishi Raider, or Ram truck model before installation.

Quality Assurance and Warranty

Standard Ignition provides quality-tested TPMS sensors designed to meet or exceed industry standards. While this sensor is not an OEM replacement, it undergoes rigorous testing to ensure reliable performance and durability. Please consult the product documentation or manufacturer for warranty details specific to the TPM101A sensor.
