Standard Ignition TPM1070K4 Tire Pressure Monitoring System Sensor Service Kit
OE Quality 60-Day Returns
Standard Ignition

Standard Ignition TPM1070K4 Tire Pressure Monitoring System Sensor Service Kit

Brand Standard Ignition TPM1070K4

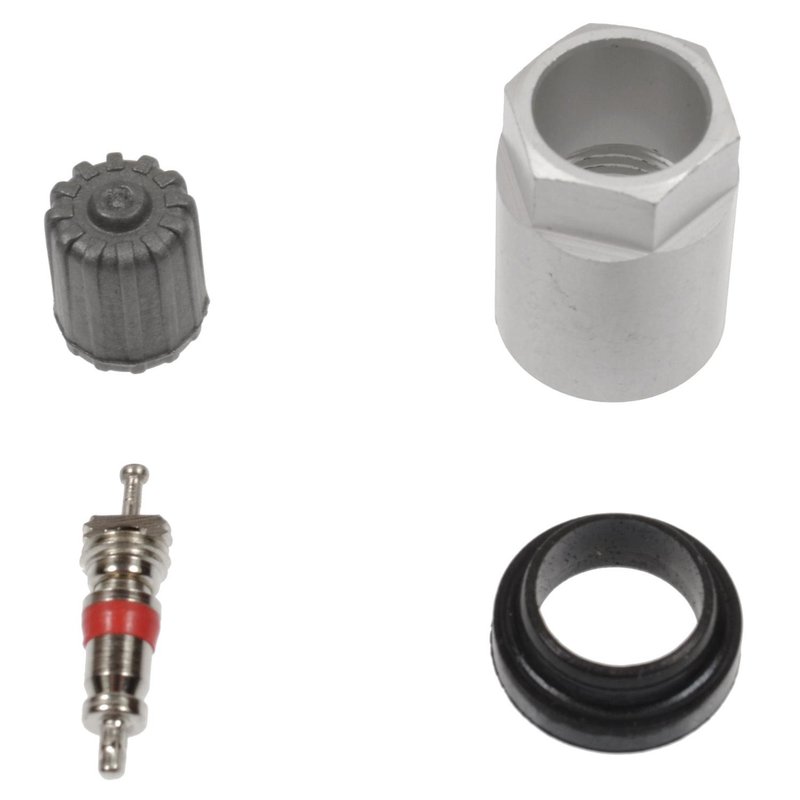

Contents Valve Core, Seal, Retaining Nut, Cap
Fits Cadillac, Chevrolet, and Isuzu · 26 vehicles

OE form, fit, and function. Matches the original design for straightforward replacement.

Complete service kit. Includes valve core, seal, retaining nut, and cap.

Precision engineered. Built with high-grade materials for reliable operation.

Cross-references Standard Ignition TPM1070K4, 17-20107AK and 92-0125-4 for the same application. See all 6.

$12.84Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $12.84
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Tire Pressure Monitoring System Sensor Service Kit options

TPMS Service Kit for OE-Style Repairs

Standard Ignition TPM1070K4 is a Tire Pressure Monitoring System service kit built for OE-style maintenance on select Cadillac, Chevrolet, and Isuzu applications. It is a practical choice when servicing TPMS sensors and replacing worn sealing components during tire work.

Key Features

  • Contents: valve core, seal, retaining nut, and cap
  • Precision-engineered with high-grade materials for consistent operation
  • Built to match OE form, fit, and function for listed applications
  • Supports long service life through quality-controlled manufacturing
  • Standard Ignition TPM1070K4 for TPMS sensor service needs

Detailed Description

This TPMS sensor service kit is made for maintenance on vehicles that use an OE-style service kit rather than a full sensor replacement. Standard Ignition TPM1070K4 is used to refresh the service components around the TPMS sensor, helping restore proper sealing and secure mounting during tire service. It cross-references 17-20107AK and 609-104 for the same application.

Fitment includes 2013-2015 Cadillac ATS, 2014-2015 Cadillac CTS, 2012-2015 Chevrolet Camaro, 2014-2015 Chevrolet SS, 2013 Chevrolet Corvette, 2009 Cadillac STS, 2006-2009 Chevrolet Trailblazer, 2006-2007 Cadillac CTS, 2006-2007 Isuzu Ascender, 2005-2006 Cadillac SRX, and 2006 Chevrolet SSR. The TPM1070K4 part number is also used in OE-style TPMS service applications where the factory relearn procedure is followed after installation.

Common Repair Uses

  • TPMS service during tire replacement or wheel service
  • Replacement of worn valve seals or retaining hardware
  • Correction of air loss at the TPMS valve stem area
  • Service work on Cadillac ATS, Cadillac CTS, and Chevrolet Camaro TPMS systems
  • Maintenance for OE-style TPMS sensor assemblies

Installation Notes

Install according to the vehicle manufacturer’s service procedure. For listed applications, no programming is required; install the sensor service components and follow the OEM factory relearn procedure. Verify the correct TPMS service kit before installation, especially on 433 MHz applications and vehicles noted as w/o valve.

Quality Assurance

Standard Ignition maintains quality control throughout manufacturing, from component production to finished product. TPM1070K4 is engineered to support OE-style fitment and dependable service performance using high-grade materials.

Related reading

This part fits 26 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2015CadillacATS——N/Aw/o Valve; w/ Sport Package; OE Style; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2015CadillacCTS6.2LV8N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2015ChevroletCamaro——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2015ChevroletSS——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2014CadillacATS——N/Aw/o Valve; w/ Sport Package; OE Style; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2014CadillacCTS6.2LV8N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2014ChevroletCamaro——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2014ChevroletSS——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2013CadillacATS——N/Aw/o Valve; w/ Sport Package; OE Style; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2013ChevroletCamaro——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2013ChevroletCorvette——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2012ChevroletCamaro——N/ATPMS sensor service kit includes 4 units per box, installation guidelines from vehicle manufacturer, no valve or programming needed.
2009CadillacSTS——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2009ChevroletTrailblazer——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2008ChevroletTrailblazer——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2007CadillacCTS2.8LV6N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2007CadillacCTS3.6LV6N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2007ChevroletTrailblazer——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2007IsuzuAscender——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006CadillacCTS2.8LV6N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006CadillacCTS3.6LV6N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006CadillacSRX——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006ChevroletSSR——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006ChevroletTrailblazer——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2006IsuzuAscender——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
2005CadillacSRX——N/Aw/o Valve; OE Style; 433 Mhz Sensor; 4 Per Box; No programming required. Install sensor and follow the OEM factory relearn procedure.
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — TPM1070K417-20107AK92-0125-4609-104609-10411070K
