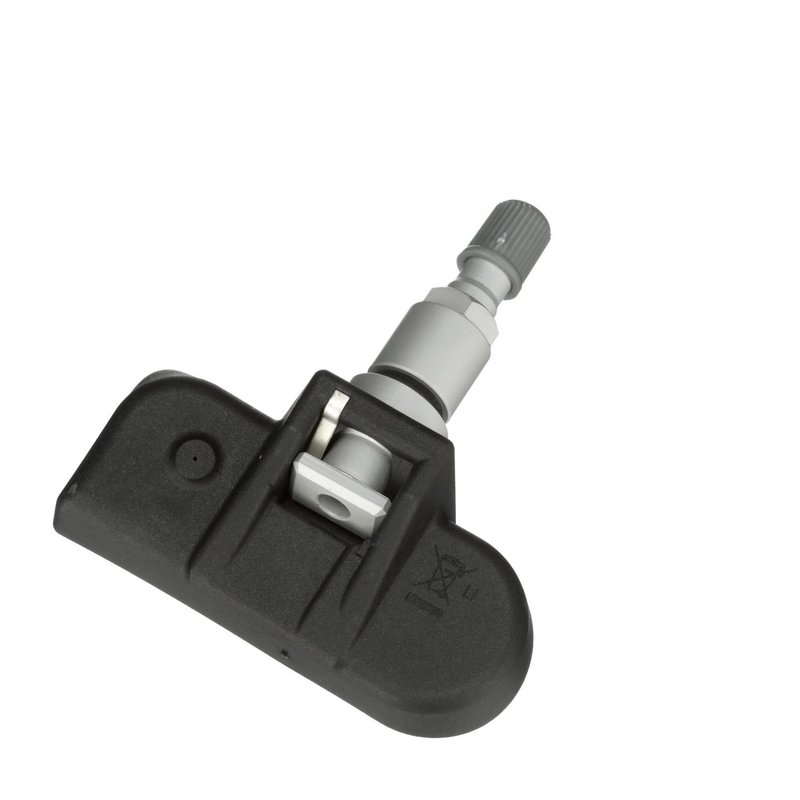

Standard Ignition TPM108A Tire Pressure Monitoring System Sensor

Standard Ignition TPM108A TPMS Sensor

Standard Ignition TPM108A is a pre-programmed tire pressure monitoring system sensor built for direct OE-style replacement. It is designed for 433 MHz wheel-mounted applications and is ready for OE relearn procedures on supported Chrysler, Dodge, and related vehicles.

Key Features

• Pre-programmed at the factory with the correct OE protocol
• 433 MHz frequency for supported Chrysler, Dodge, and Jeep-style TPMS systems
• Bolt-on connector type for wheel mounting
• Military-grade lithium battery for long service life and stable sensor performance
• Low-frequency wakeup timer and periodic reset help preserve shelf life and battery life
• Accelerometer-based design improves tire position and rotational direction sensing
• External-crystal oscillator supports stable frequency communication with the vehicle receiver

Detailed Description

The TPM108A TPMS sensor is engineered to meet OE performance expectations and is validated through extensive environmental and durability testing, including temperature cycling, humidity, frost, salt fog, vibration, drop, and rapid deflation testing. It is a practical replacement for vehicles that require a 433 MHz wheel sensor and an OE relearn after installation. This part cross-references Dorman - OE Solutions 974-061 for the same application.

Compatible With 2008-2010 Dodge Grand Caravan, 2008-2010 Dodge Charger, 2008-2010 Dodge Magnum, 2009-2010 Chrysler Town & Country, 2009-2010 Dodge Journey, and 2008-2009 Chrysler Sebring. Standard Ignition TPM108A is also listed for additional OE-style TPMS applications in this vehicle group.

What It Helps Address

• TPMS warning light caused by a failed wheel sensor
• Loss of tire pressure signal after battery depletion in the original sensor
• Incorrect or inconsistent pressure readings from a damaged sensor
• Communication issues between the wheel sensor and the vehicle receiver
• Service needs after tire replacement, wheel service, or sensor damage

Installation Notes and Tips

Install the sensor at the wheel location and follow the OEM factory relearn procedure after installation. This TPM108A sensor is pre-programmed for the correct OE protocol, so no additional programming is required before relearn on the listed applications. Verify 433 MHz frequency and vehicle fitment before service, especially on 2008-2010 Chrysler Town & Country and 2008-2010 Dodge Grand Caravan models.

Quality Assurance

Standard Ignition designs this TPMS sensor to meet or exceed OE performance and SAE2657 specifications. It undergoes lab and on-vehicle validation to confirm durability, communication stability, and long-term sensor operation across demanding temperature and road conditions.
