OE Quality
60-Day Returns

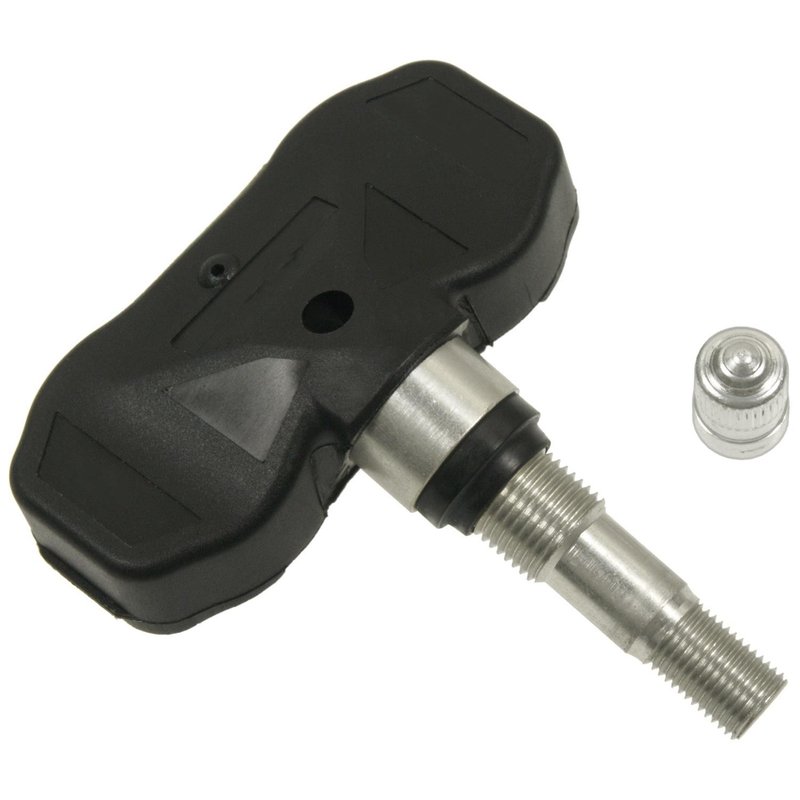

Standard Ignition TPM147 Tire Pressure Monitoring System Sensor
OE-Style TPMS Sensor for Select GM Vehicles
Standard Ignition TPM147 is a pre-programmed tire pressure monitoring system sensor that installs ready for OE relearn procedures. It is built as a direct OE replacement for select Cadillac CTS, Cadillac STS, and Chevrolet Corvette applications with 433 MHz wheel-mounted sensors.
- Pre-programmed at the factory for out-of-box installation
- 433 MHz frequency for supported GM TPMS applications
- Wheel-mounted sensor with aluminum valve design
- Direct OE replacement for fit, form, and function
- Built to meet or exceed OE performance requirements under SAE2657 specifications
- Sensor nut torque specification: 62 in/lbs
Fitment and Application Details
Compatible With 2009 Cadillac STS, 2009-2011 Cadillac CTS, 2012-2013 Cadillac CTS, and 2010-2013 Chevrolet Corvette. Standard Ignition TPM147 is the correct choice when you need a 433 MHz TPMS sensor that matches OE-style operation and follows the factory relearn process after installation. This part cross-references Four Seasons 20153 for the same application.
What This TPMS Sensor Helps Resolve
- TPMS warning light caused by a failed wheel sensor
- Loss of tire pressure data from a damaged or aging sensor
- Incorrect sensor frequency on supported 433 MHz vehicles
- Service issues after tire replacement or wheel service
- Fitment problems from non-OE-style sensor dimensions
Installation Notes
Install the sensor at the wheel location and follow the OEM factory relearn procedure after installation. No programming is required before installation because the sensor is pre-programmed from the factory. Use the specified 62 in/lbs sensor nut torque during installation to help ensure proper retention and sealing.
Quality Assurance
Standard Ignition TPM147 is manufactured to meet or exceed OE performance expectations and is produced in compliance with SAE2657 specifications. It is engineered as a direct OE replacement for consistent operation on supported Cadillac and Chevrolet applications.
| Brand | Standard Ignition |
|---|---|
| Part Number | TPM147 |
| Frequency | 433 MHZ |
| Mounting Location | Wheel |
| Sensor Nut Torque (in/lbs) | 62 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2013 | Cadillac | CTS | 6.2L | V8 | N/A | Aluminum valve 433 Mhz sensor, no programming required, follow OEM factory relearn procedure post installation. |
| 2013 | Chevrolet | Corvette | N/A | OE-style 433 Mhz sensor with aluminum valve requires OEM factory relearn procedure, no programming needed. | ||
| 2012 | Cadillac | CTS | 6.2L | V8 | N/A | Aluminum valve 433 Mhz sensor, no programming required, follow OEM factory relearn procedure post installation. |
| 2012 | Chevrolet | Corvette | N/A | OE-style 433 Mhz sensor with aluminum valve requires OEM factory relearn procedure, no programming needed. | ||
| 2011 | Cadillac | CTS | 6.2L | V8 | N/A | 433 Mhz TPMS sensor; No programming needed, just install sensor and follow OEM factory relearn procedure. |
| 2011 | Chevrolet | Corvette | N/A | OE-style 433 Mhz sensor with aluminum valve requires OEM factory relearn procedure, no programming needed. | ||
| 2010 | Cadillac | CTS | 6.2L | V8 | N/A | 433 Mhz TPMS sensor; No programming needed, just install sensor and follow OEM factory relearn procedure. |
| 2010 | Chevrolet | Corvette | N/A | OE-style 433 Mhz sensor with aluminum valve requires OEM factory relearn procedure, no programming needed. | ||
| 2009 | Cadillac | CTS | 6.2L | V8 | N/A | 433 Mhz TPMS sensor; No programming needed, just install sensor and follow OEM factory relearn procedure. |
| 2009 | Cadillac | STS | N/A | Aluminum valve 433 Mhz sensor, no programming required, follow OEM factory relearn procedure post installation. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
