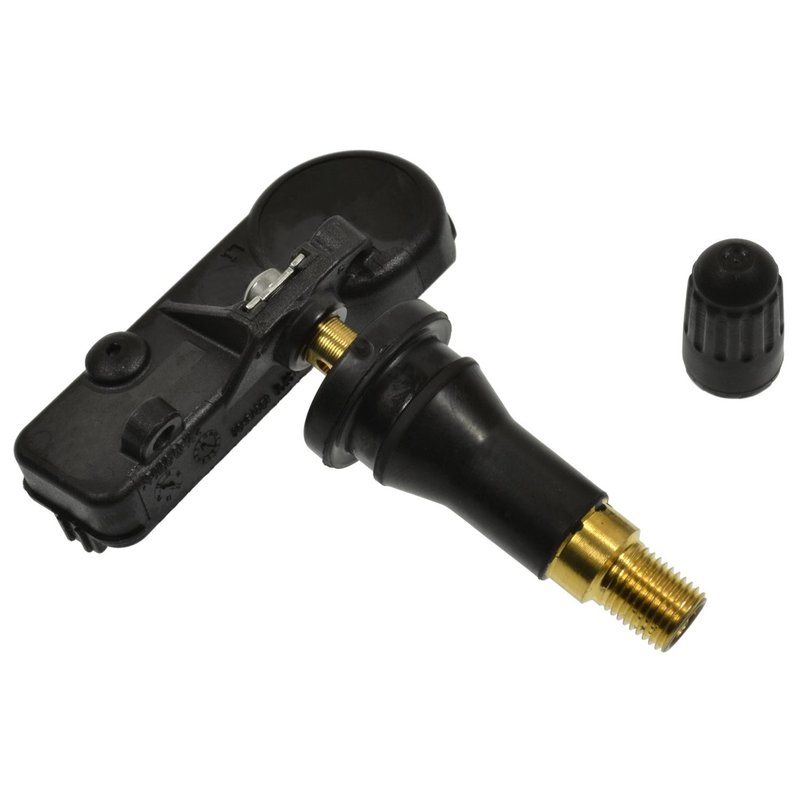

Standard Ignition TPM189 Tire Pressure Monitoring System Sensor
Reliable Tire Pressure Monitoring for Dodge Ram Trucks
The Standard Ignition TPM189 Tire Pressure Monitoring System (TPMS) Sensor is designed specifically for Dodge Ram 1500 and Ram 2500 models. This battery-powered sensor provides real-time pressure signals to help maintain optimal tire performance and safety.
- Battery-powered sensor for consistent operation
- Bolt-on connector type for secure attachment
- Nickel coated core for enhanced durability
- Operates at 315 MHz frequency for accurate data transmission
- Rubber inflation valve type for reliable sealing
- Includes mounting hardware for easy installation
- Snap-in mounting method located on the wheel
- OEM replacement ensuring compatibility and performance
- Provides real-time tire pressure monitoring
Technical Details and Compatibility
The Standard Ignition TPM189 sensor is engineered to meet OEM specifications, making it a direct replacement for factory-installed TPMS sensors on Dodge Ram 1500 and Ram 2500 trucks. Its nickel coated core enhances corrosion resistance, while the 315 MHz frequency ensures seamless communication with the vehicle’s onboard monitoring system. The bolt-on connector and snap-in mounting method simplify installation and secure sensor placement on the wheel. The rubber inflation valve type maintains a proper seal to prevent air leaks, contributing to accurate tire pressure readings.
Applications and Problem Solving
This TPMS sensor is used to monitor tire pressure and alert drivers to potential issues, helping to maintain vehicle safety and performance. It addresses common problems such as:
- Low tire pressure warnings on Dodge Ram 1500 and Ram 2500
- Inaccurate or intermittent tire pressure readings
- Sensor battery failure or depletion
- Damaged or corroded sensor cores
- Faulty OEM sensor replacements
Installation Notes and Tips
Installation of the Standard Ignition TPM189 sensor requires removal of the tire from the wheel. The included mounting hardware and snap-in design facilitate a secure fit. Ensure the sensor is properly aligned and the bolt-on connector is tightened to manufacturer specifications. After installation, reset the vehicle’s TPMS system according to Dodge Ram service procedures to ensure accurate sensor communication.
Quality Assurance and Warranty
Standard Ignition TPMS sensors are manufactured to meet OEM standards for fit, form, and function. The TPM189 part number is backed by a limited warranty covering defects in materials and workmanship. This warranty provides assurance of product reliability when installed and used according to vehicle manufacturer guidelines.
| Brand | Standard Ignition |
| Part Number | TPM189 |
| Battery -powered | Yes |
| Connector Type | Bolt On |
| Core Material | Nickel Coated Core |
| Frequency | 315 MHZ |
| Inflation Valve Type | Rubber |
| Mounting Hardware Included | Yes |
| Mounting Location | Wheel |
| Mounting Method | Snap In |
| O.E.M. Replacement | Yes |
| Real Time Pressure Signal | Yes |
This part fits 2 vehicles. Search below:
| Year | Make | Model | # Doors | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Dodge | Ram 1500 | 4 Door | N/A | w/ Rubber Valve; Original Design; OE Style; 315 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2008 | Dodge | Ram 2500 | N/A | w/ Rubber Valve; OE Style; For Vehicles Equipped with Pressure by Wheel Position Display; 315 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
