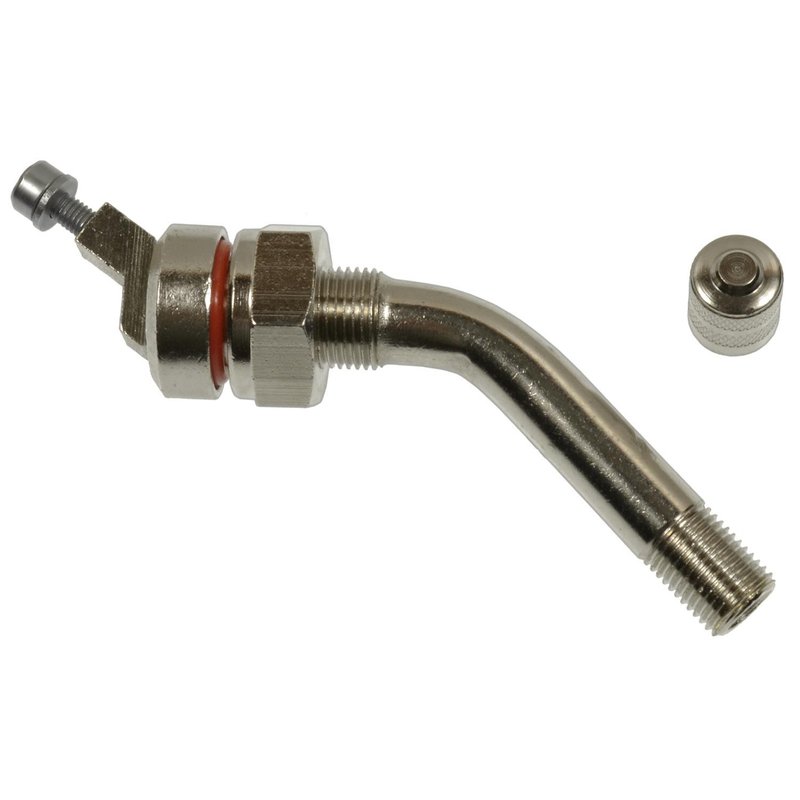

Standard Ignition TPM2025VK Tire Pressure Monitoring System Valve Kit

TPMS Valve Kit for Ram 3500

Standard Ignition TPM2025VK is a TPMS valve kit built for direct service on select Ram 3500 applications. It is engineered to match OE form, fit, and function, with the valve stem, bolt, retaining nut, and cap needed for a proper TPMS valve service repair.

Key Features

• Contents include valve stem, bolt, retaining nut, and cap
• Precision-engineered with high-grade materials for consistent operation
• Built for TPMS service on select Ram 3500 models with alloy wheels
• Supports 433 MHz sensor applications listed below
• Standard Ignition TPM2025VK cross-references 92-0233 and VS-35 for the same application

Detailed Description

This Standard Ignition TPMS valve kit is made for Ram 3500 service work where the valve hardware must match the original design and sealing requirements. The TPM2025VK is intended for OE-style replacement on 2014-2017 Ram 3500 configurations listed in the fitment data, including 2017 Ram 3500 front right, front left, and rear outer wheel applications, plus 2014-2016 Ram 3500 dual rear wheel outer wheel applications. Standard Ignition uses controlled manufacturing and quality checks from component to finished part to support reliable TPMS service.

What It Helps Solve

• Leaking or damaged TPMS valve stems
• Corroded or worn valve nuts and sealing components
• Service issues after TPMS sensor replacement on Ram 3500 wheels
• Loss of proper tire pressure retention at the valve area
• Fitment problems when OE-style TPMS valve hardware is required

Installation Notes and Tips

Fits 2017 Ram 3500, front right; 2017 Ram 3500, rear outer wheel; 2017 Ram 3500, front left; and 2014-2016 Ram 3500, rear outer wheel on dual rear wheel aluminum wheel applications. For 2017 Ram 3500 listings, install the sensor and follow the OEM factory relearn procedure; no programming is required. Verify wheel type, sensor frequency, and position before installation to confirm the correct application.

Quality Assurance

Standard Ignition manufactures TPMS service components with high-grade materials and process control from componentry through finished product. TPM2025VK is built to OE form, fit, and function for the listed Ram 3500 applications.
