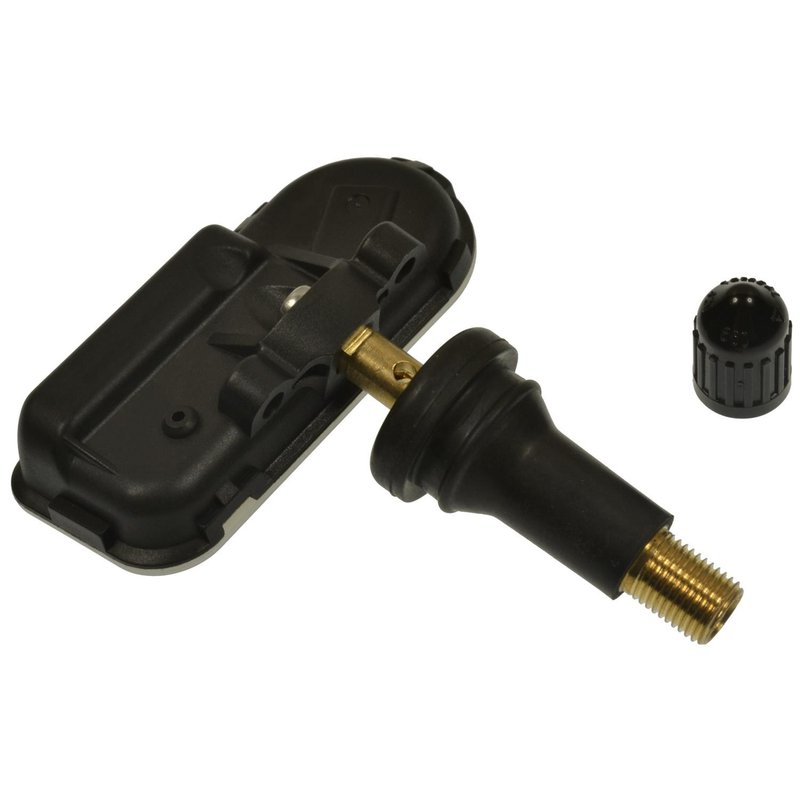

Standard Ignition TPM204 Tire Pressure Monitoring System Sensor - Front or Rear
| Brand | Standard Ignition TPM204 |
|---|---|
| Position | Front |
| Battery -powered | Yes |
| Core Material | Nickel Coated Core |
| Frequency | 433 MHZ |
| Inflation Valve Type | Rubber |
| Mounting Hardware Included | Yes |
| Mounting Location | Wheel |
| Mounting Method | Snap In |
| O.E.M. Replacement | Yes |
| Fits | Jeep and Ram · 41 vehicles |
OE direct replacement. Matches OE fit, form, and function for reliable performance.
Pre-programmed at the factory. Ready to install and OE-relearned out of the box.
Snap-in design. Rubber valve and nickel-coated core for a secure wheel mount.
Cross-references National 6815, Standard Ignition TPM204 and 92-1232 for the same application. See all 5.
OE-Style TPMS Sensor for Ram and Jeep
The Standard Ignition TPM204 is a direct OE replacement tire pressure monitoring system sensor for select Ram and Jeep applications. It arrives pre-programmed from the factory and is ready for installation and OE relearn, helping restore accurate tire pressure monitoring without additional programming steps.
- Pre-programmed at the factory for out-of-the-box installation
- 433 MHz TPMS sensor for supported Ram and Jeep vehicles
- Battery-powered design
- Rubber snap-in valve construction
- Nickel-coated core material
- Mounts at the wheel with included mounting hardware
- OE replacement for fit, form, and function
- Built to meet or exceed OE performance requirements in line with SAE2657 specifications
Detailed Product Overview
Standard Ignition TPM204 is engineered as an OE-style tire pressure monitoring system sensor for Ram 1500, Ram 2500, Ram 3500, and Jeep Cherokee applications. It uses a 433 MHz signal and a rubber valve snap-in mounting method to match the original sensor design on supported vehicles. Because it is pre-programmed at the factory, the sensor is ready to install and then relearn through the OEM procedure. This makes TPM204 a practical replacement when servicing a TPMS warning light or replacing a failed wheel sensor on a 2024 Ram 3500 rear outer wheel, a 2018-2021 Jeep Cherokee, or other listed Ram and Jeep fitments. This part cross-references National 6815 and OE-style reference 92-1232 for the same application.
Common Problems This Sensor Helps Address
- TPMS warning light caused by a failed wheel sensor
- Inaccurate tire pressure readings after sensor battery failure
- No signal from a damaged or corroded original TPMS sensor
- Service issues after tire replacement or wheel repair
- Need for an OE-replacement sensor on supported Ram and Jeep models
Installation Notes and Tips
Install the sensor at the wheel location specified for the vehicle, then follow the OEM factory relearn procedure. No programming is required before installation. Confirm the vehicle uses a 433 MHz TPMS system and verify the correct position, especially on Ram 3500 rear outer wheel applications and dual rear wheel configurations. TPM204 is listed for select Ram 1500, Ram 1500 Classic, Ram 2500, Ram 3500, and Jeep Cherokee models from 2014 through 2024.
Quality Assurance
Standard Ignition manufactures TPM204 as a direct OE replacement designed to meet or exceed OE performance requirements and comply with SAE2657 specifications. The sensor is built for OE fit, form, and function to support proper TPMS operation after relearn.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Ram | 3500 | Rear | Outer Wheel |
| 2023 | Ram | 1500 Classic | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2023 | Ram | 3500 | Rear | Outer Wheel |
| 2022 | Ram | 1500 Classic | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2022 | Ram | 3500 | Rear | Outer Wheel |
| 2021 | Jeep | Cherokee | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2021 | Ram | 1500 Classic | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2021 | Ram | 2500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2021 | Ram | 3500 | Rear | Outer Wheel |
| 2020 | Jeep | Cherokee | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2020 | Ram | 1500 Classic | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2020 | Ram | 2500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2020 | Ram | 3500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2019 | Jeep | Cherokee | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2019 | Ram | 1500 Classic | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2019 | Ram | 2500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2019 | Ram | 3500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2018 | Jeep | Cherokee | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2018 | Ram | 1500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2018 | Ram | 2500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2018 | Ram | 3500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Jeep | Cherokee | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2017 | Ram | 1500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Ram | 2500 | N/A | w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Ram | 3500 | Front | w/ Steel Wheels; w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Ram | 3500 | Rear | w/ Steel Wheels; w/ Rubber Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure.; Outer Wheel |
| 2016 | Jeep | Cherokee | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2016 | Ram | 1500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2016 | Ram | 2500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2016 | Ram | 3500 | Front | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2016 | Ram | 3500 | Rear | w/ Steel Wheels; w/ Rubber Valve; w/ Dual Rear Wheels; OE Style; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure.; Outer Wheel |
| 2015 | Jeep | Cherokee | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2015 | Ram | 1500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2015 | Ram | 2500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2015 | Ram | 3500 | Rear | w/ Steel Wheels; w/ Rubber Valve; w/ Dual Rear Wheels; OE Style; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure.; Outer Wheel |
| 2015 | Ram | 3500 | Front | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2014 | Jeep | Cherokee | N/A | w/ Rubber Valve; OE Style; Built In U.S.; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2014 | Ram | 1500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2014 | Ram | 2500 | N/A | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
| 2014 | Ram | 3500 | Rear | w/ Steel Wheels; w/ Rubber Valve; w/ Dual Rear Wheels; OE Style; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure.; Outer Wheel |
| 2014 | Ram | 3500 | Front | OE Style Tire Pressure Monitoring System Sensor with Rubber Valve; 433 Mhz Sensor; No programming needed, simply follow OEM factory relearn procedure for installation. |
