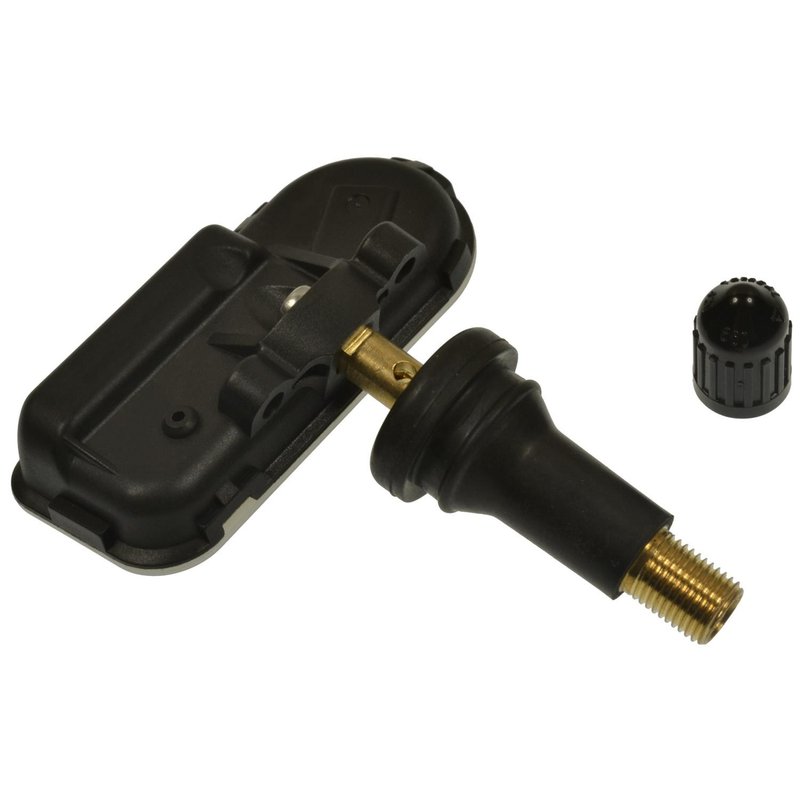

Standard Ignition TPM204A Tire Pressure Monitoring System Sensor - Front or Rear

OE-Style TPMS Sensor for Ram and Jeep

Standard Ignition TPM204A is a tire pressure monitoring system sensor built for OE-style replacement on select Ram and Jeep applications. It arrives pre-programmed with the correct factory protocol, so installation is followed by the OEM relearn procedure rather than additional sensor programming.

Designed for 433 MHz systems, this TPMS sensor uses a snap-in rubber valve design and is intended for wheel mounting on supported vehicles such as Ram 1500, Ram 2500, Ram 3500, and Jeep Cherokee applications.

Key Features

• Pre-programmed at the factory with the exact OE protocol
• 433 MHz frequency for supported factory TPMS systems
• Snap-in mounting with rubber valve stem
• Battery-powered sensor construction
• Nickel-coated core material
• Mounts at the wheel with included mounting hardware
• OE replacement part for factory-style service

Detailed Description

The Standard Ignition TPM204A TPMS sensor is engineered to meet or exceed OE performance requirements and is manufactured in compliance with SAE2657 specifications. It is validated through extensive environmental and durability testing, including temperature cycling, thermal shock, humidity, frost, proof pressure, rapid deflation, contamination, salt fog, drop, centrifugal force, vehicle speed, and mechanical vibration testing. A 168-hour on-vehicle live test at an independent lab further supports its application readiness. This part cross-references Standard Ignition TPM204 and National 6815 for the same application.

What It Helps Address

• TPMS warning light caused by a failed sensor battery
• Incorrect or missing tire pressure readings
• Sensor replacement after wheel service or tire replacement
• Factory sensor failure on Ram and Jeep TPMS systems
• Need for an OE-style 433 MHz replacement sensor

Installation Notes and Fitment

Compatible With 2021-2024 Ram 3500, rear outer wheel; 2022-2023 Ram 1500 Classic; 2018-2021 Jeep Cherokee; 2019-2021 Ram 1500 Classic; 2017-2021 Ram 2500; 2018-2020 Ram 3500; 2017-2018 Ram 1500; 2015-2017 Jeep Cherokee; 2017 Ram 3500, front; 2017 Ram 3500, rear outer wheel; 2014-2016 Ram 1500; 2014-2016 Ram 2500; 2014-2016 Ram 3500, front; 2014-2016 Ram 3500, rear outer wheel; and 2014 Jeep Cherokee.

Install the sensor and follow the OEM factory relearn procedure. No programming is required before installation on the listed applications. Verify wheel position, valve type, and 433 MHz system requirements before service.

Quality Assurance

Standard Ignition manufactures this sensor to OE performance expectations and validates it through independent laboratory testing and on-vehicle evaluation. TPM204A is built for factory-style service on supported Ram and Jeep TPMS systems.
