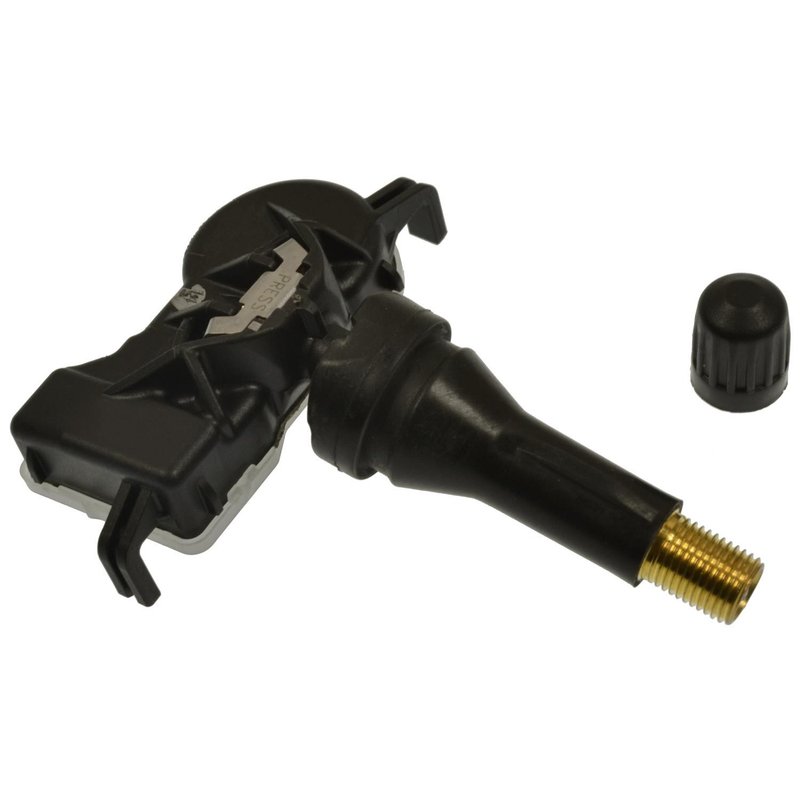

Standard Ignition TPM300 Tire Pressure Monitoring System (TPMS) Sensor

OE-Style TPMS Sensor for Nissan Sentra

Standard Ignition TPM300 is a battery-powered tire pressure monitoring system sensor built for OE replacement service. It uses a 315 MHz frequency, a snap-in mounting method, and a rubber inflation valve for direct wheel installation.

Compatible with 2016-2019 Nissan Sentra TPMS OE design sensor applications, this Standard Ignition TPMS sensor supports direct-fit service for vehicles using the specified factory-style configuration. The TPM300 is also referenced by part numbers 92-1336 and 407003AN1D.

Key Features

• Battery-powered TPMS sensor for direct tire pressure monitoring service
• 315 MHz frequency
• Snap-in wheel mounting design
• Rubber inflation valve construction
• Nickel coated core material
• OE replacement design for factory-style service

Product Details

Standard Ignition TPM300 is a tire pressure monitoring system sensor designed for wheel-mounted OE replacement use. The sensor’s 315 MHz operating frequency matches the factory-style system used on 2016-2019 Nissan Sentra models listed in the fitment data. Its snap-in mounting method and rubber valve design support direct replacement of the original TPMS sensor assembly in the wheel.

This part cross-references 92-1336 and 407003AN1D for the same application. Use TPM300 when servicing a Nissan Sentra TPMS OE design sensor application that calls for a 315 MHz, snap-in, rubber-valve sensor.

Common Issues This Part Addresses

• TPMS warning light illuminated on the dash
• Failed or weak tire pressure sensor battery
• Incorrect tire pressure readings from a damaged sensor
• Sensor replacement after wheel or tire service
• Factory sensor wear in 2016-2019 Nissan Sentra applications

Installation Notes and Tips

Install TPM300 at the wheel location specified by the vehicle’s TPMS service procedure. Confirm the vehicle uses a 315 MHz system before installation, and follow relearn or initialization steps required by the Nissan Sentra after sensor replacement. Inspect the valve stem and wheel sealing surfaces during service to help ensure proper fitment and air retention.

Quality Assurance

Standard Ignition supplies OE replacement electrical and engine management components, and TPM300 is built to match the factory-style TPMS sensor application for listed Nissan Sentra models.
