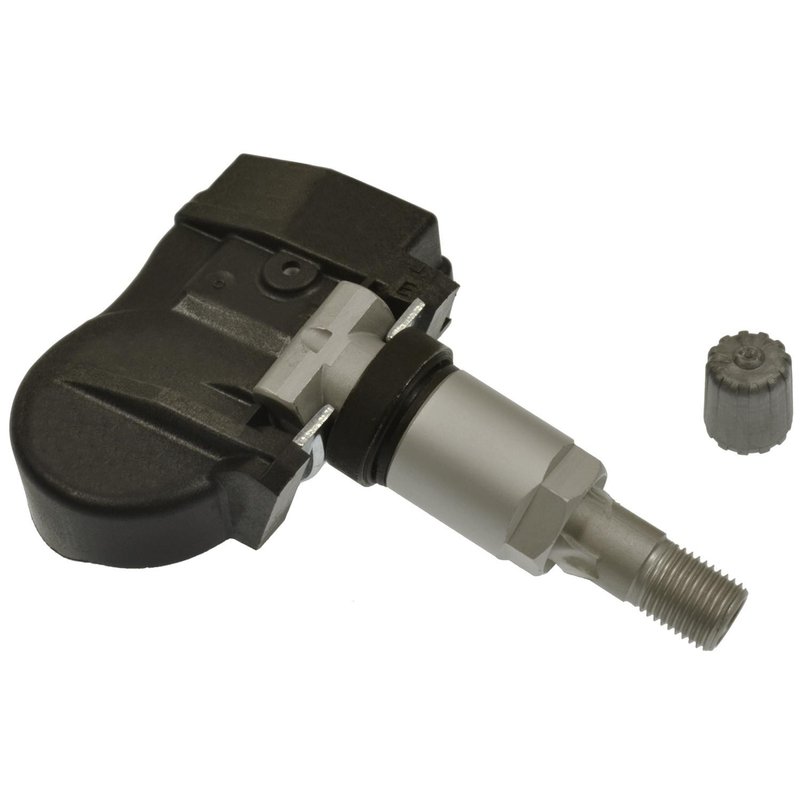

Standard Ignition TPM305 Tire Pressure Monitoring System Sensor

Overview of Standard Ignition TPMS Sensor TPM305

The Standard Ignition TPM305 is a battery-powered Tire Pressure Monitoring System (TPMS) sensor designed for select Acura and Honda models. Engineered to provide reliable tire pressure monitoring, this sensor is compatible with vehicles such as the Honda Odyssey, Pilot, RDX, and Acura TLX.

• Battery-powered sensor for consistent performance
• Nickel coated core for enhanced durability
• Operates at 433 MHz frequency
• Metal inflation valve type for secure fitment
• Clamp-in mounting method on the wheel
• Mounting hardware not included
• Compatible with Acura and Honda models including Odyssey, Pilot, RDX, and TLX

Technical Details and Features

The TPM305 sensor features a nickel coated core that improves resistance to corrosion and extends the sensor's lifespan. Operating at a frequency of 433 MHz, it ensures proper communication with the vehicle’s onboard TPMS system. The sensor uses a metal inflation valve, which provides a sturdy and reliable connection to the tire. Designed to be mounted directly on the wheel using a clamp-in method, this sensor fits securely without the need for additional mounting hardware. While it does not provide a real-time pressure signal, it effectively monitors tire pressure to alert drivers of any significant deviations.

Compatible Vehicles and Applications

This TPMS sensor is specifically compatible with several Acura and Honda models, including the Honda Odyssey, Pilot, RDX, and the Acura TLX. The part number TPM305 ensures proper fitment and function within these vehicles’ tire pressure monitoring systems, making it a suitable replacement sensor for maintaining accurate tire pressure alerts.

• Maintains accurate tire pressure monitoring for Acura and Honda vehicles
• Replaces faulty or damaged TPMS sensors in compatible models
• Helps prevent uneven tire wear due to improper inflation
• Supports vehicle safety by alerting low tire pressure conditions
• Assists in maintaining optimal fuel efficiency through proper tire inflation

Installation Notes and Tips

Installation of the Standard Ignition TPM305 sensor requires removal of the tire from the wheel to access the valve stem. Since mounting hardware is not included, ensure that existing clamp-in hardware is in good condition or replaced as needed. Proper torque specifications should be followed to avoid damage to the sensor or valve. After installation, the sensor must be programmed or relearned to the vehicle’s TPMS system according to the manufacturer’s instructions for accurate operation.

Quality Assurance and Warranty

Standard Ignition manufactures the TPM305 sensor to meet OEM specifications for fit, form, and function. The nickel coated core and metal valve design contribute to the sensor’s durability and reliability. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
