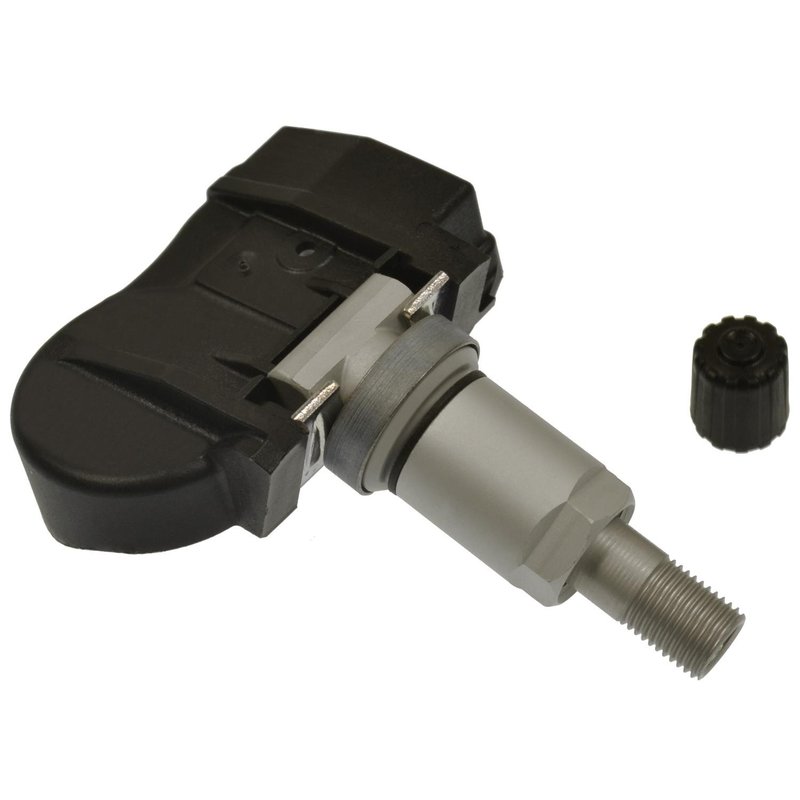

Standard Ignition TPM320 Tire Pressure Monitoring System Sensor
| Brand | Standard Ignition TPM320 |
|---|---|
| Battery -powered | Yes |
| Core Material | Nickel Coated Core |
| Frequency | 433 MHZ |
| Inflation Valve Type | Metal |
| Mounting Hardware Included | No |
| Mounting Location | Wheel |
| Mounting Method | Clamp In |
| Real Time Pressure Signal | No |
| Fits | Genesis and Hyundai · 8 vehicles |
Clamp-in design. Installs securely with a metal inflation valve.
Nickel-coated core. Helps resist corrosion for dependable sensor performance.
433 MHz frequency. Matches the common TPMS signal standard for accurate monitoring.
Cross-references 52933B1100 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
TPMS Sensor for Hyundai and Genesis
The Standard Ignition TPM320 is a battery-powered tire pressure monitoring system sensor built for select Hyundai Accent and Genesis G80 applications. It uses a 433 MHz signal, a metal clamp-in valve, and a wheel-mounted design for direct replacement service.
Key Features
- Battery-powered TPMS sensor for direct tire pressure monitoring
- 433 MHz frequency for supported Hyundai and Genesis applications
- Metal inflation valve with clamp-in mounting method
- Wheel-mounted sensor design
- Nickel coated core material
- No programming required; follow the OEM factory relearn procedure after installation
Detailed Description
Standard Ignition TPM320 is a tire pressure monitoring system sensor for vehicles that use a 433 MHz TPMS setup. It is listed for 2015-2016 Hyundai Accent, 2017 Hyundai Accent, 2017 Genesis G80, and 2018-2021 Genesis G80 with the specified sport package and aluminum valve requirements. This part number, TPM320, is also cross-referenced to 52933B1100 for the same application. For buyers searching for a Hyundai Accent TPMS sensor or a Genesis G80 TPMS sensor, TPM320 provides the correct frequency, valve style, and wheel-mount configuration needed for service replacement.
Common Problems It Can Address
- TPMS warning light illuminated on the dash
- Faulty or aging tire pressure sensor battery
- Incorrect tire pressure readings from a failed sensor
- Sensor replacement after wheel or tire service
- Loss of TPMS communication after a damaged valve stem or sensor body
Installation Notes and Tips
Install TPM320 at the wheel using the clamp-in metal valve design. No programming is required, but the OEM factory relearn procedure must be completed after installation. Confirm the vehicle uses a 433 MHz TPMS system and the listed aluminum valve application before ordering. This part number, TPM320, is intended for direct replacement service on the specified Hyundai Accent and Genesis G80 models.
Quality Assurance
Standard Ignition supplies OE-style replacement electrical and sensor components for service repair applications. TPM320 is built to match the listed frequency, mounting style, and vehicle-specific requirements for the confirmed fitments.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Genesis | G80 | N/A | w/ Sport Package; w/ Aluminum Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2020 | Genesis | G80 | N/A | w/ Sport Package; w/ Aluminum Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2019 | Genesis | G80 | N/A | w/ Sport Package; w/ Aluminum Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2018 | Genesis | G80 | N/A | w/ Sport Package; w/ Aluminum Valve; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Genesis | G80 | N/A | w/ Sport Package; w/ Aluminum Valve; From 1/17/17; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2017 | Hyundai | Accent | N/A | w/ Aluminum Valve; From 5/17; 433 Mhz Sensor; No programming required. Install sensor and follow the OEM factory relearn procedure. |
| 2016 | Hyundai | Accent | N/A | Aluminum valve 433 Mhz sensor, no programming required, follow OEM factory relearn procedure post installation. |
| 2015 | Hyundai | Accent | N/A | Aluminum valve 433 Mhz sensor, no programming required, follow OEM factory relearn procedure post installation. |
