OE Quality
60-Day Returns

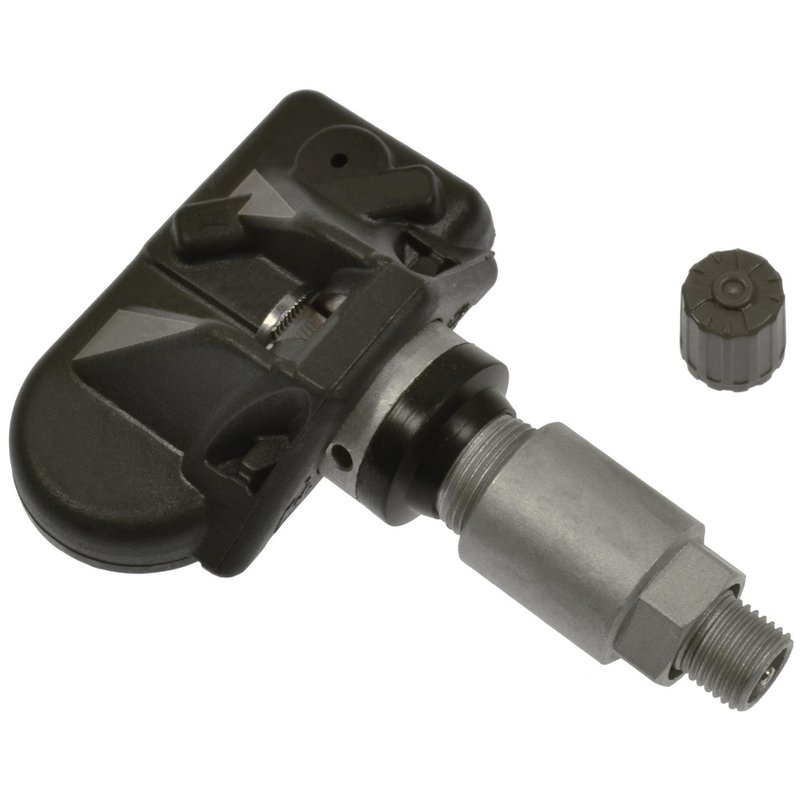

Standard Ignition TPM366 Tire Pressure Monitoring System (TPMS) Sensor
TPMS Sensor for Toyota GR Supra
Standard Ignition TPM366 is a battery-powered tire pressure monitoring system sensor built for direct wheel mounting on select Toyota GR Supra models. It uses a 315 MHz signal, a metal inflation valve, and a clamp-in design for OE-style TPMS service on 2020-2025 Toyota GR Supra applications.
Key Features
- Fits 2020-2025 Toyota GR Supra, N/A
- 315 MHz TPMS sensor frequency
- Battery-powered sensor design
- Clamp-in metal inflation valve
- Wheel-mounted OE design sensor
- Nickel coated core material
- Standard Ignition TPM366 replacement
Detailed Description
The Standard Ignition TPM366 is a tire pressure monitoring system sensor for the Toyota GR Supra that follows OE design requirements for the listed model years. It mounts at the wheel with a clamp-in metal valve stem and uses a nickel coated core for service in TPMS-equipped wheel assemblies. This part is a direct fit for 2020-2025 Toyota GR Supra vehicles with the OE design sensor application, and TPM366 is the part number to reference when matching the correct 315 MHz sensor.
This part cross-references 92-1403 and 42607WAA01 for the same application.
Common Problems It Can Address
- TPMS warning light caused by a failed sensor battery
- Incorrect tire pressure readings from a nonresponsive sensor
- Sensor replacement needs after wheel or tire service
- Loss of TPMS communication on 315 MHz Toyota GR Supra applications
- Service replacement for a damaged clamp-in valve sensor
Installation Notes and Tips
Install TPM366 at the wheel using the clamp-in mounting method and verify the 315 MHz frequency matches the vehicle’s TPMS system before programming or relearning. Because mounting hardware is not listed, confirm all required service components are available before installation. After installation, perform the appropriate TPMS relearn or initialization procedure for the Toyota GR Supra.
Quality Assurance
Standard Ignition supplies OE-style replacement electrical and sensor components for service applications. TPM366 is built to match the listed fitment and sensor specifications for 2020-2025 Toyota GR Supra TPMS service.
| Brand | Standard Ignition |
|---|---|
| Part Number | TPM366 |
| Battery -powered | Yes |
| Core Material | Nickel coated core |
| Frequency | 315 mhz |
| Inflation Valve Type | Metal |
| Mounting Hardware Included | No |
| Mounting Location | Wheel |
| Mounting Method | Clamp in |
| Real Time Pressure Signal | No |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2025 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2024 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2023 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2022 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2021 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
| 2020 | Toyota | GR Supra | N/A | Tire Pressure Monitoring System OE Design Sensor |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
