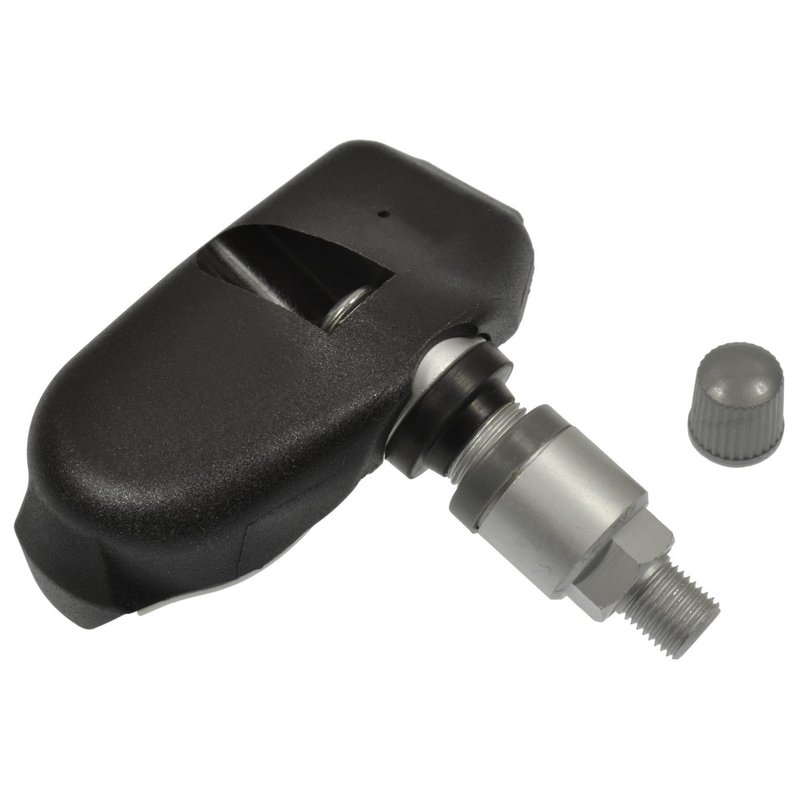

Standard Ignition TPM53A Tire Pressure Monitoring System Sensor

Reliable TPMS Sensor for Hyundai and Kia Vehicles

The Standard Ignition TPM53A Tire Pressure Monitoring System (TPMS) Sensor is designed to provide accurate tire pressure readings for select Hyundai and Kia models. This battery-powered sensor operates at 315 MHz frequency and features a bolt-on connector for secure installation.

• Battery-powered sensor for consistent performance
• Bolt-on connector type for easy mounting
• Operates at 315 MHz frequency compatible with vehicle systems
• Sensor nut torque specification: 35 in/lbs for proper installation
• Compatible with Hyundai Amanti, Sonata, Tiburon, Tucson and Kia Sorento, Sportage models

Technical Details and Compatibility

The Standard Ignition TPM53A TPMS sensor is engineered to meet the specifications required by Hyundai and Kia vehicles including the Amanti, Sonata, Sorento, Sportage, Tiburon, and Tucson. Its battery-powered design ensures reliable tire pressure monitoring without frequent maintenance. The sensor communicates at a frequency of 315 MHz, matching the OEM system requirements for accurate data transmission. Installation is simplified with a bolt-on connector type, and the sensor nut torque should be tightened to 35 in/lbs to ensure a secure fit and proper function.

Common Applications and Problem Resolution

• Replaces faulty or non-responsive TPMS sensors in Hyundai and Kia vehicles
• Resolves inaccurate or intermittent tire pressure readings
• Eliminates TPMS warning light issues caused by sensor failure
• Supports vehicle safety by maintaining proper tire pressure monitoring
• Prevents potential tire damage due to underinflation or overinflation

Installation Notes and Tips

When installing the Standard Ignition TPM53A sensor, ensure the sensor nut is torqued to 35 in/lbs to avoid damage or improper sealing. The bolt-on connector type allows for straightforward attachment to the valve stem. It is recommended to verify sensor compatibility with the vehicle’s TPMS system frequency of 315 MHz before installation. After installation, perform a system reset or relearn procedure as specified by the vehicle manufacturer to ensure proper sensor recognition.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM standards for fit, form, and function. The TPM53A sensor undergoes rigorous testing to ensure durability and reliable performance in Hyundai and Kia vehicles. Warranty coverage details should be confirmed at the time of purchase, typically including protection against defects in materials and workmanship.
