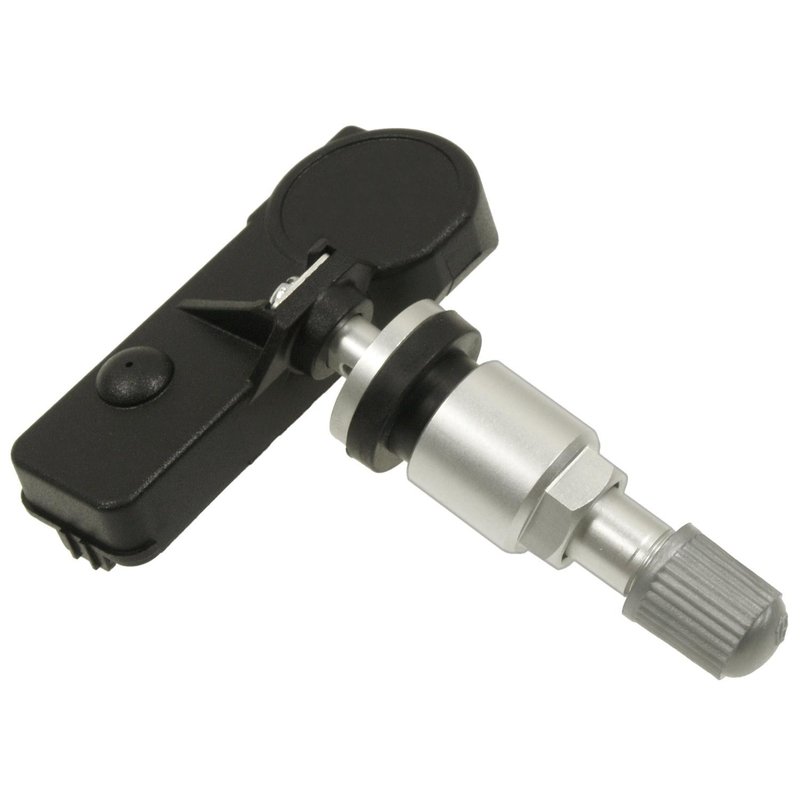

Standard Ignition TPM93A Tire Pressure Monitoring System Sensor

Reliable Tire Pressure Monitoring for Subaru Vehicles

The Standard Ignition TPM93A Tire Pressure Monitoring System (TPMS) Sensor is designed to provide accurate tire pressure readings for various Subaru models. This battery-powered sensor operates at 315 MHz frequency and is engineered for direct fitment on Subaru Crosstrek, Forester, Impreza, Legacy, Outback, Tribeca, WRX, WRX STI, and XV Crosstrek vehicles.

• Battery-powered sensor ensuring consistent performance
• Operates at 315 MHz frequency for reliable signal transmission
• Metal inflation valve type for durability and secure fit
• Includes mounting hardware for straightforward installation
• Clamp-in mounting method designed for wheel installation
• Torx bolt torque specification of 11.5 in/lbs for proper securing

Technical Details and Compatibility

The Standard Ignition TPM93A sensor is specifically engineered to replace factory TPMS sensors on select Subaru models. Its metal inflation valve enhances durability compared to rubber valves, reducing the risk of leaks or damage. The sensor mounts directly to the wheel using a clamp-in method, secured with a Torx bolt tightened to 11.5 in/lbs, ensuring a secure and stable fit. Operating at a frequency of 315 MHz, this sensor communicates effectively with the vehicle’s onboard monitoring system to provide real-time tire pressure data.

Applications and Problem Solving

• Replaces faulty or non-responsive TPMS sensors on Subaru Crosstrek, Forester, Impreza, Legacy, Outback, Tribeca, WRX, WRX STI, and XV Crosstrek
• Addresses inaccurate or intermittent tire pressure readings
• Prevents dashboard TPMS warning light issues related to sensor failure
• Helps maintain proper tire inflation for safety and fuel efficiency
• Eliminates sensor battery failure problems with a reliable power source

Installation Notes and Tips

Installation requires removal of the tire from the wheel to access the sensor. Use the included mounting hardware and tighten the Torx bolt to the specified 11.5 in/lbs torque to avoid sensor damage or loosening. Ensure the sensor is properly seated in the clamp-in valve to maintain an airtight seal. After installation, perform a TPMS relearn procedure as outlined in the vehicle’s service manual to synchronize the new sensor with the vehicle’s monitoring system.

Quality Assurance and Warranty

Standard Ignition TPMS sensors are manufactured to meet OEM specifications for fit, form, and function. The TPM93A part number undergoes rigorous quality control to ensure reliable operation and durability. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
