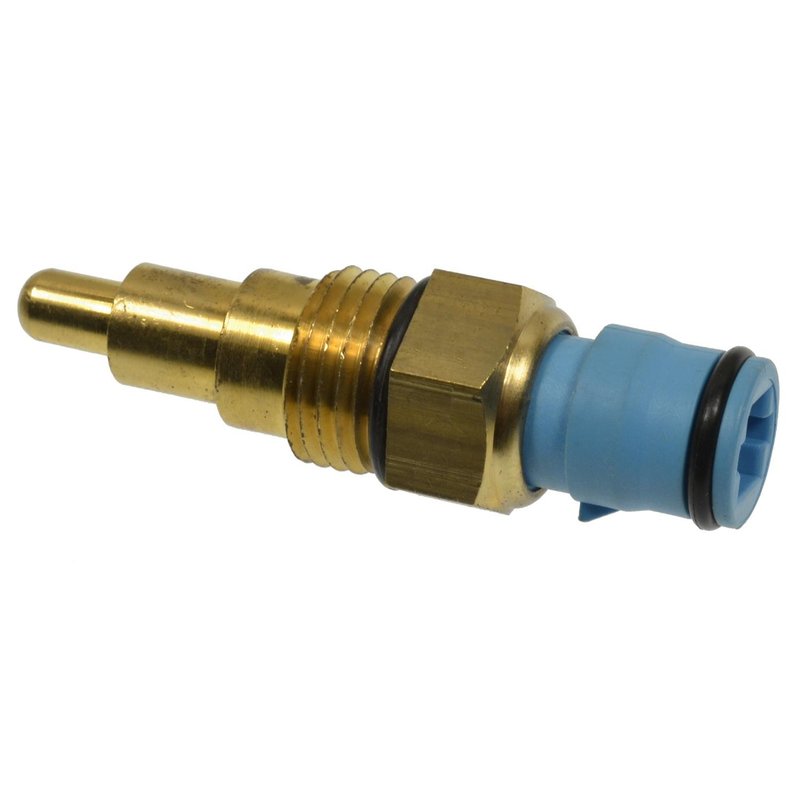

Standard Ignition TS-106 Engine Cooling Fan Switch
| Brand | Standard Ignition TS-106 |
|---|---|
| Attachment Method | Screw-On |
| Color | Gold, Blue |
| Connector Gender | Female |
| Connector Type | Plug In |
| Finish | Dichromate, Plastic |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Toyota, Geo, Chevrolet, and BMW · 36 vehicles |
Screw-on design. Installs with a threaded 16 mm x 1.50 connection.
Plug-in connector. Female square connector with a single blade terminal.
Metal-plastic housing. Combines durable materials with a dichromate finish.
Cross-references PowerStop 17-1056, Standard Ignition TS-106 and 12351078 for the same application. See all 7.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Engine Cooling Fan Switch for Toyota and BMW
Standard Ignition TS-106 is an engine cooling fan switch built for direct-fit service on select Toyota, Geo, Chevrolet, and BMW applications. It uses a screw-on attachment method, a 16mm x 1.50 thread size, and a single female plug-in connector with a male blade terminal for straightforward replacement on the cooling system circuit.
Key Features
- Engine cooling fan switch for 12-volt systems
- Screw-on design with 16MM x 1.50 thread size
- Single square female connector with plug-in connection
- Male blade terminal, no wiring harness included
- Plastic and metal housing with dichromate and plastic finish
- Open at idle configuration
- Standard Ignition TS-106 replacement part
Detailed Description
The Standard Ignition TS-106 is an engine cooling fan switch used to control fan operation based on coolant temperature. It features a square switch shape, toggle actuation style, and a compact 13.97 mm overall width for applications that require a threaded, screw-on temperature switch. This part number is commonly searched for Toyota Corolla cooling fan switch replacement, Toyota Celica fan switch service, and BMW 325es cooling system repair. Standard Ignition TS-106 also cross-references PowerStop 17-1056 for the same application.
Fits 1989-1993 Toyota Corolla, 1 Term.; Fits 1984-1988 Toyota Corolla; Fits 1989-1992 Geo Prizm; Fits 1992 Toyota Celica, On Water Outlet; Fits 1991 Toyota Celica, On Water Inlet; Fits 1990 Toyota Celica, w/o Connector; On Water Inlet; Fits 1986-1987 Toyota Celica; Fits 1983-1986 Toyota Camry; Fits 1988 Toyota Camry, To 11/14/87; On Thermostat Housing; Fits 1988 Toyota Camry, To 10/87; On Water Outlet; Fits 1981-1982 Toyota Tercel, Compatible with vehicles equipped with U.S. Emissions for Distributor Ignition Pickup.; Fits 1985-1988 Chevrolet Nova; Fits 1979 Chevrolet Monza; Fits 1986-1987 BMW 325es, 99 Deg. C.
Common Repair Symptoms
- Cooling fan does not switch on at the correct temperature
- Fan runs continuously after engine warm-up
- Intermittent fan operation from a worn temperature switch
- Overheating caused by delayed fan engagement
- Fault code or drivability concern tied to fan control circuit performance
Installation Notes
Verify the thread size, connector style, and mounting location before installation. This TS-106 switch is used in water outlet, water inlet, and thermostat housing locations depending on the vehicle application, so match the original placement and note any connector differences such as the 1990 Toyota Celica listing without a connector. Confirm the cooling system is cool before removal, and inspect the sealing surface and connector terminals during replacement.
Quality Assurance
Standard Ignition supplies replacement electrical and thermal control components for service applications. The TS-106 is built with a plastic and metal housing and a corrosion-resistant dichromate finish to support dependable cooling fan control in the listed vehicles.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1993 | Toyota | Corolla | — | — | — | — | — | N/A | 1 Term. |
| 1992 | Geo | Prizm | — | — | — | — | — | N/A | — |
| 1992 | Toyota | Celica | — | — | 1.6L | L4 | — | N/A | On Water Outlet |
| 1992 | Toyota | Corolla | — | FWD | — | — | — | N/A | 1 Term. |
| 1991 | Geo | Prizm | — | — | — | — | — | N/A | — |
| 1991 | Toyota | Celica | — | — | 1.6L | L4 | — | N/A | On Water Inlet |
| 1991 | Toyota | Corolla | — | FWD | — | — | — | N/A | 1 Term. |
| 1990 | Geo | Prizm | — | — | — | — | — | N/A | — |
| 1990 | Toyota | Celica | — | — | 1.6L | L4 | — | N/A | w/o Connector; On Water Inlet |
| 1990 | Toyota | Corolla | — | FWD | — | — | — | N/A | 1 Term. |
| 1989 | Geo | Prizm | — | — | 1.6L | L4 | — | N/A | — |
| 1989 | Toyota | Corolla | — | FWD | — | — | — | N/A | 1 Term. |
| 1988 | Chevrolet | Nova | — | — | 1.6L | L4 | — | N/A | — |
| 1988 | Toyota | Camry | — | — | 2.0L | L4 | — | N/A | To 11/14/87; On Thermostat Housing |
| 1988 | Toyota | Camry | — | — | 2.5L | V6 | — | N/A | To 10/87; On Water Outlet |
| 1988 | Toyota | Corolla | — | FWD | 1.6L | L4 | — | N/A | — |
| 1987 | BMW | 325es | — | — | — | — | — | N/A | 99 Deg. C |
| 1987 | Chevrolet | Nova | — | — | 1.6L | L4 | — | N/A | — |
| 1987 | Toyota | Celica | — | — | — | — | — | N/A | — |
| 1987 | Toyota | Corolla | — | FWD | — | — | — | N/A | — |
| 1986 | BMW | 325es | — | — | — | — | — | N/A | 99 Deg. C |
| 1986 | Chevrolet | Nova | — | — | 1.6L | L4 | — | N/A | — |
| 1986 | Toyota | Camry | — | — | — | — | GAS | N/A | — |
| 1986 | Toyota | Celica | — | — | — | — | — | N/A | — |
| 1986 | Toyota | Corolla | Hatchback | FWD | — | — | — | N/A | — |
| 1986 | Toyota | Corolla | Sedan | FWD | — | — | — | N/A | — |
| 1985 | Chevrolet | Nova | — | — | 1.6L | L4 | — | N/A | — |
| 1985 | Toyota | Camry | — | — | — | — | GAS | N/A | — |
| 1985 | Toyota | Corolla | — | — | 1.6L | L4 | — | N/A | — |
| 1984 | Toyota | Camry | — | — | — | — | GAS | N/A | — |
| 1984 | Toyota | Corolla | — | — | 1.6L | L4 | — | N/A | — |
| 1983 | Toyota | Camry | — | — | — | — | — | N/A | — |
| 1982 | Toyota | Tercel | — | — | — | — | — | N/A | Compatible with vehicles equipped with U.S. Emissions for Distributor Ignition Pickup. |
| 1981 | Toyota | Tercel | — | — | — | — | — | N/A | Compatible with vehicles equipped with U.S. Emissions for Distributor Ignition Pickup. |
| 1979 | Chevrolet | Monza | — | — | 3.2L | V6 | — | N/A | — |
| 1979 | Chevrolet | Monza | — | — | 3.8L | V6 | — | N/A | — |
