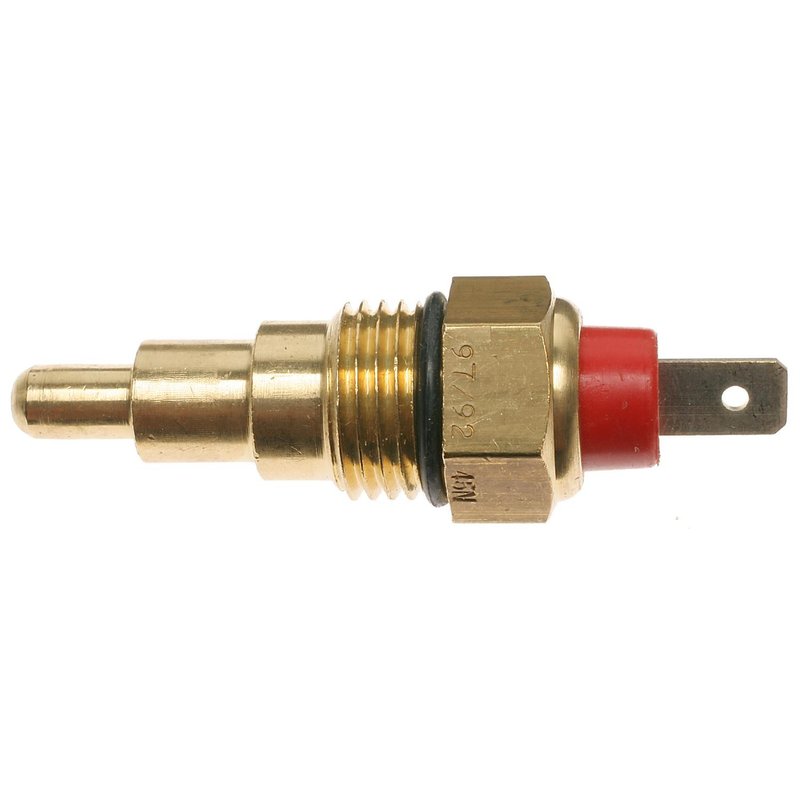

Standard Ignition TS-113 Engine Cooling Fan Switch

Reliable Engine Cooling Fan Switch for Ford, Mazda, and Mercury

The Standard Ignition TS-113 Engine Cooling Fan Switch is designed to maintain optimal engine temperature by controlling the cooling fan operation. Compatible with select Ford, Mazda, and Mercury models, this switch ensures efficient fan activation to prevent overheating.

• Attachment Method: Plug in for easy installation
• Connector: Single male round connector with blade terminal
• Housing Material: Durable metal construction with dichromate and plastic finish
• Thread Size: 16mm x 1.50 for secure mounting
• Voltage: 12V operation suitable for standard automotive electrical systems
• Switch Actuation Style: Toggle with open at idle functionality
• Compact dimensions: 14.732 mm (0.58 inches) overall width

Technical Details and Compatibility

The TS-113 Engine Cooling Fan Switch from Standard Ignition features a robust metal housing finished in dichromate and plastic, providing corrosion resistance and durability. Its plug-in attachment method and single male round connector with a blade terminal simplify installation and ensure reliable electrical connection. The switch operates at 12 volts and is designed to toggle open at idle, allowing precise control of the engine cooling fan. With a thread size of 16mm x 1.50, it fits securely into the cooling system assembly.

This switch is compatible with various Ford, Mazda, and Mercury vehicles, including Ford Probe, Mercury Capri, Mazda 626, RX-7, Festiva, and Tracer models. The TS-113 part number ensures you receive the correct replacement component for these specific applications.

Common Applications and Problem Resolution

• Prevents engine overheating by activating the cooling fan at the correct temperature
• Resolves intermittent fan operation issues caused by faulty switches
• Eliminates electrical connection problems with a secure male blade terminal
• Restores proper fan control in Ford Probe, Mazda RX-7, and Mercury Capri vehicles
• Improves engine cooling efficiency for consistent vehicle performance

Installation Notes and Tips

Installation of the Standard Ignition TS-113 Engine Cooling Fan Switch requires no wiring harness or additional hardware, as it uses a plug-in attachment method. Ensure the engine is cool before removing the old switch to avoid injury. Use the correct 16mm x 1.50 thread size to avoid cross-threading during installation. Verify the connector gender and shape match your vehicle’s wiring harness for a proper fit. No bulb or mounting brackets are included, so reuse existing components if necessary.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. The TS-113 Engine Cooling Fan Switch undergoes rigorous quality control to maintain consistent operation under demanding conditions. While specific warranty details may vary, Standard Ignition typically offers coverage against defects in materials and workmanship. Consult product documentation or your supplier for exact warranty terms.
