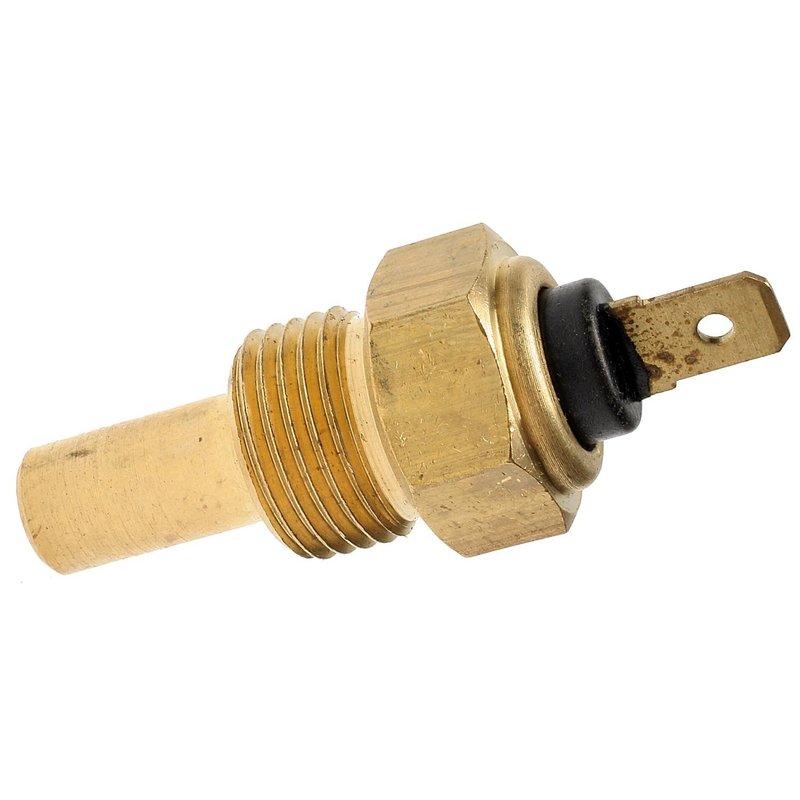

Standard Ignition TS-226 Engine Coolant Temperature Sender

Engine Coolant Temperature Sender for Jaguar Gauge Applications

Standard Ignition TS-226 is an engine coolant temperature sender built for Jaguar vehicles equipped with gauges. It uses a bolt-on attachment method, a single male round plug-in connector, and a single male blade terminal for a direct-style electrical connection.

• Engine coolant temperature sender for gauge-equipped applications
• Bolt-on attachment method
• 1 male round plug-in connector
• 1 male blade terminal
• 5/8-18 thread size
• Standard Ignition TS-226 replacement part

Fitment and Application Details

This sender is used in Jaguar cooling system temperature monitoring applications where the gauge circuit relies on a threaded sender. It fits 1995-1997 Jaguar Vanden Plas, 1982-1984 Jaguar Vanden Plas, 1995-1996 Jaguar XJ12, 1981-1984 Jaguar XJ12, 1976-1990 Jaguar XJS, and 1988 Jaguar XJ6, with notes indicating engines with gauges. This part cross-references 13H9129 and TS6056 for the same application.

Common Symptoms This Part Can Address

• Inaccurate coolant temperature gauge readings
• Gauge needle that stays low, high, or fluctuates
• Faulty sender signal to the instrument cluster
• Temperature display issues on gauge-equipped Jaguar engines
• Replacement need after corrosion or electrical wear at the sender

Installation Notes and Tips

Verify the thread size, connector style, and gauge-equipped engine application before installation. Clean the mounting surface and inspect the connector for corrosion or looseness so the sender seats and signals properly. Confirm the vehicle uses the correct coolant temperature sender location for the gauge circuit, especially on Jaguar XJS, XJ12, XJ6, and Vanden Plas applications.

Quality Assurance

Standard Ignition is a recognized aftermarket brand for electrical and engine management components. TS-226 is built to match the listed connector and thread specifications for the stated Jaguar applications.
