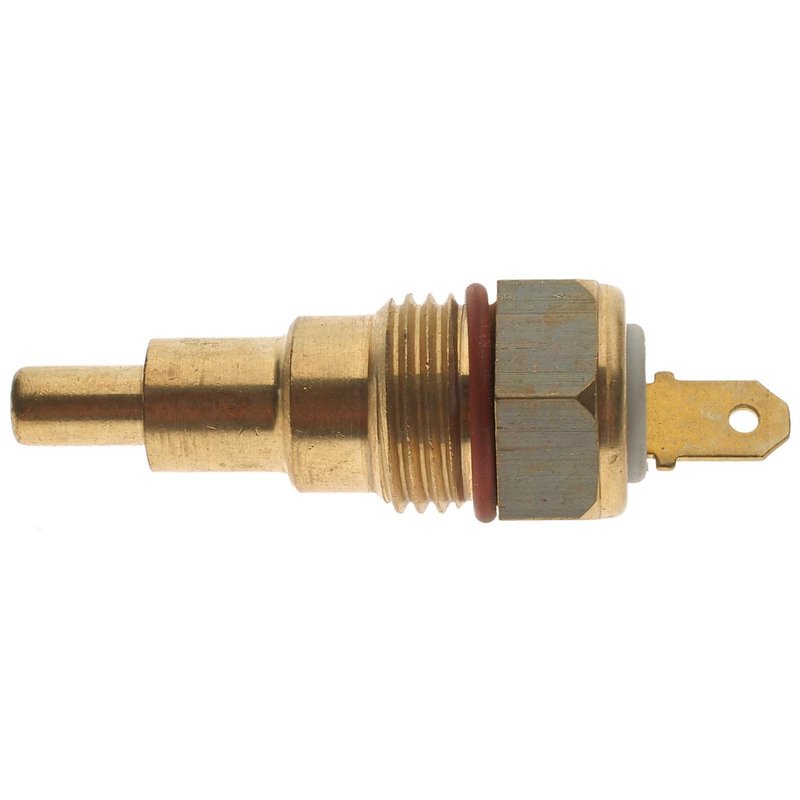

Standard Ignition TS-230 Engine Cooling Fan Switch
| Brand | Standard Ignition TS-230 |
|---|---|
| Attachment Method | Bolt On |
| Connector Gender | Male |
| Connector Shape | Round |
| Connector Type | Plug In |
| Terminal Gender | Male |
| Terminal Type | Blade |
| Fits | Toyota · 5 vehicles |
Bolt-on design. Installs with a simple plug-in connection and no hardware included.
Metal housing. Durable construction with a gold finish for a clean, finished look.
Toggle switch action. Uses a round, blade-terminal design with one connector for straightforward operation.
Cross-references Standard Ignition TS-230, 25174217 and 8942812030 for the same application. See all 5.
Engine Cooling Fan Switch for Toyota Corolla
Standard Ignition TS-230 is an engine cooling fan switch built for direct-fit service on select Toyota Corolla applications. It uses a bolt-on mounting style, a round plug-in connector, and a 16mm x 1.50 thread size for a straightforward replacement on the listed vehicles.
Fits 1974-1978 Toyota Corolla, N/A, with Federal Emissions and 1 blade terminal.
Key Features
- Engine cooling fan switch for temperature-based fan control
- Standard Ignition TS-230 replacement part number
- Bolt-on attachment method with metal housing
- Round connector design with male connector and blade terminal
- 12-volt electrical specification
- Open at idle: Yes
- Gold finish
Detailed Product Overview
The Standard Ignition TS-230 is an engine cooling fan switch designed for the cooling system on select Toyota Corolla models. It features a metal housing, round connector shape, male terminal configuration, and a single connector layout to match the listed application. The 16mm x 1.50 thread size and bolt-on attachment help support a direct replacement installation where this switch is specified.
This part cross-references Toyota OE-style numbers such as 25174217 and 8942812030 for the same application. For buyers searching Toyota Corolla cooling fan switch replacement, Standard Ignition TS-230, or a 1974-1978 Toyota Corolla engine cooling fan switch, this part matches the listed Federal Emissions fitment.
Common Problems This Part Can Address
- Cooling fan not switching on at the proper temperature
- Fan operation that is inconsistent or intermittent
- Overheating caused by a failed fan switch signal
- Incorrect fan cycling on a Toyota Corolla cooling system
- Replacement needs after corrosion or electrical wear at the switch
Installation Notes and Tips
Verify the thread size, connector style, and terminal configuration before installation. This TS-230 uses a male blade terminal and a round plug-in connector, so the vehicle harness must match the listed setup. Confirm the application is 1974-1978 Toyota Corolla with Federal Emissions and 1 blade terminal before replacing the original switch.
Quality Assurance
Standard Ignition manufactures replacement electrical components for automotive service applications, and the TS-230 is built with a metal housing and application-specific connector design for the listed fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1978 | Toyota | Corolla | N/A | w/ Federal Emissions; 1 Blade Term. |
| 1977 | Toyota | Corolla | N/A | w/ Federal Emissions; 1 Blade Term. |
| 1976 | Toyota | Corolla | N/A | w/ Federal Emissions; 1 Blade Term. |
| 1975 | Toyota | Corolla | N/A | w/ Federal Emissions; 1 Blade Term. |
| 1974 | Toyota | Corolla | N/A | w/ Federal Emissions; 1 Blade Term. |
