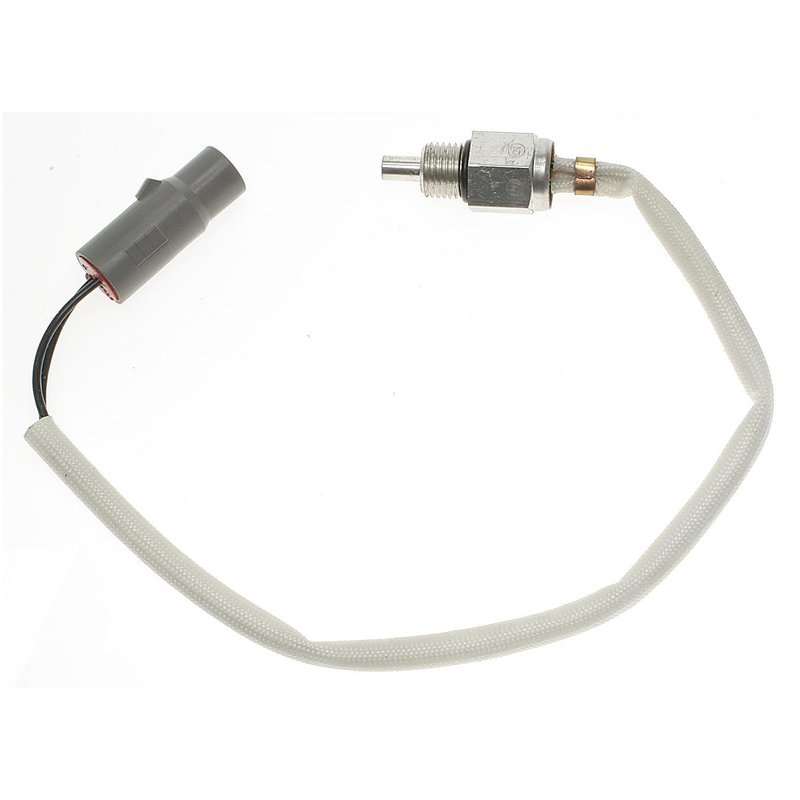

Standard Ignition TS-363 Engine Cooling Fan Switch

Reliable Engine Cooling Fan Switch for Toyota Van

The Standard Ignition TS-363 Engine Cooling Fan Switch is designed to maintain optimal engine temperature in your Toyota Van. This screw-on switch features a durable aluminum finish and a 14.75-inch wiring harness, ensuring reliable performance and easy installation.

• Screw-on attachment method for secure mounting
• Gray and silver aluminum finish for corrosion resistance
• Includes a 14.75-inch (374.65 mm) wiring harness with two wires
• Rectangular female connector with one connector quantity
• Toggle switch actuation style with blade terminals (2 male terminals)
• Plastic and metal housing for durability
• Thread size 14mm x 1.50 compatible with Toyota Van cooling systems
• Operates at 12 volts, open at idle for efficient fan control

Product Details and Specifications

The Standard Ignition TS-363 Engine Cooling Fan Switch is engineered to meet the specific cooling needs of Toyota Van models. Its screw-on design allows for straightforward installation without the need for additional mounting brackets or hardware, which are not included. The switch features a rectangular shape with a toggle actuation style, providing reliable on/off control of the engine cooling fan. The aluminum finish offers resistance to corrosion, while the plastic and metal housing ensures durability under engine bay conditions. The wiring harness included measures 14.75 inches, providing sufficient length for proper connection. This switch is designed to operate at 12 volts and is open at idle, allowing the cooling fan to engage as needed to maintain engine temperature.

Common Applications and Problem Solving

• Prevents engine overheating by activating the cooling fan
• Replaces faulty or worn engine cooling fan switches in Toyota Vans
• Restores proper fan operation to improve engine performance
• Eliminates intermittent fan operation caused by switch failure
• Helps maintain consistent engine temperature during idle and driving conditions

Installation Notes and Tips

Installation of the Standard Ignition TS-363 switch requires a screw-on attachment to the designated port on the engine cooling system. Ensure the thread size (14mm x 1.50) matches the vehicle’s specifications before installation. The included wiring harness simplifies electrical connections; connect the rectangular female connector to the vehicle’s fan wiring harness. No additional mounting brackets or hardware are necessary. It is recommended to disconnect the battery before installation to avoid electrical shorts. Verify the switch operation after installation by monitoring fan engagement at idle and during engine warm-up.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications for fit, form, and function. The TS-363 Engine Cooling Fan Switch undergoes rigorous quality control to ensure reliable performance in Toyota Van applications. While specific warranty details are not provided here, Standard Ignition typically offers limited warranties covering defects in material and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
