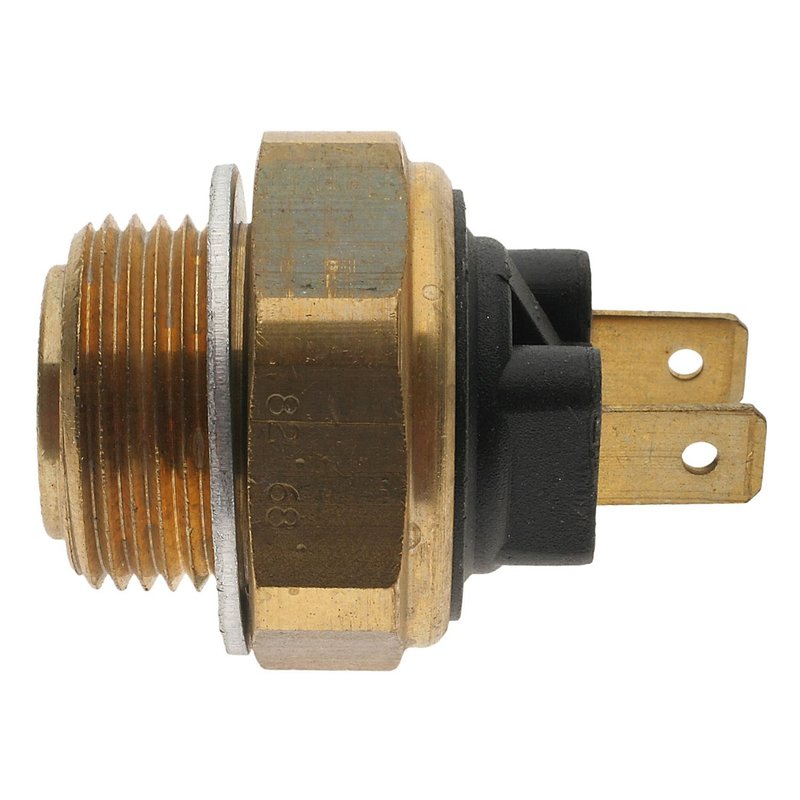

Standard Ignition TS-500 Engine Cooling Fan Switch

Reliable Engine Cooling Fan Switch for Vehicle Cooling Systems

The Standard Ignition TS-500 Engine Cooling Fan Switch is designed to maintain optimal engine temperature by controlling the cooling fan operation. This plug-in switch features a durable metal housing with a gold dichromate finish, ensuring long-lasting performance in demanding automotive environments.

• Attachment Method: Plug in for easy installation
• Connector: Single male round connector with two blade terminals
• Thread Size: 22mm x 1.50 for secure mounting
• Voltage: 12V compatible with most passenger vehicles
• Switch Actuation Style: Toggle with open at idle functionality
• Housing Material: Metal with dichromate finish for corrosion resistance
• Compact dimensions: 0.63 inches (16.002 mm) overall width

Technical Details and Compatibility

The TS-500 Engine Cooling Fan Switch from Standard Ignition is engineered to provide precise control of the engine cooling fan, activating the fan when the engine reaches a specific temperature. Its toggle switch actuation style and open-at-idle feature help maintain proper airflow and prevent overheating. The switch’s male round connector with two blade terminals ensures a secure electrical connection, while the 22mm x 1.50 thread size allows for straightforward installation in compatible cooling systems. This 12-volt switch is suitable for a variety of vehicles requiring reliable engine temperature regulation.

Common Applications and Problem Resolution

• Prevents engine overheating by activating the cooling fan at the correct temperature
• Replaces faulty or worn engine cooling fan switches in vehicles
• Restores proper fan operation to improve engine performance and longevity
• Eliminates intermittent fan operation caused by electrical connection issues
• Helps maintain consistent engine temperature during idle and driving conditions

Installation Notes and Tips

Installation of the Standard Ignition TS-500 switch requires no wiring harness or additional hardware, as it plugs directly into the existing connector. Ensure the engine is cool before removing the old switch to avoid injury. Use the 22mm x 1.50 thread size to securely mount the switch in the designated port. Verify the connector’s male round shape and blade terminals match the vehicle’s wiring harness for proper fitment. No bulb or mounting brackets are included, so retain any original hardware if necessary.

Quality Assurance and Warranty Information

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing dependable performance and durability. The TS-500 Engine Cooling Fan Switch undergoes rigorous quality control to ensure reliable operation under normal driving conditions. While specific warranty details may vary, Standard Ignition typically offers a limited warranty against defects in materials and workmanship. Consult product documentation or the vehicle’s service manual for additional warranty information.
