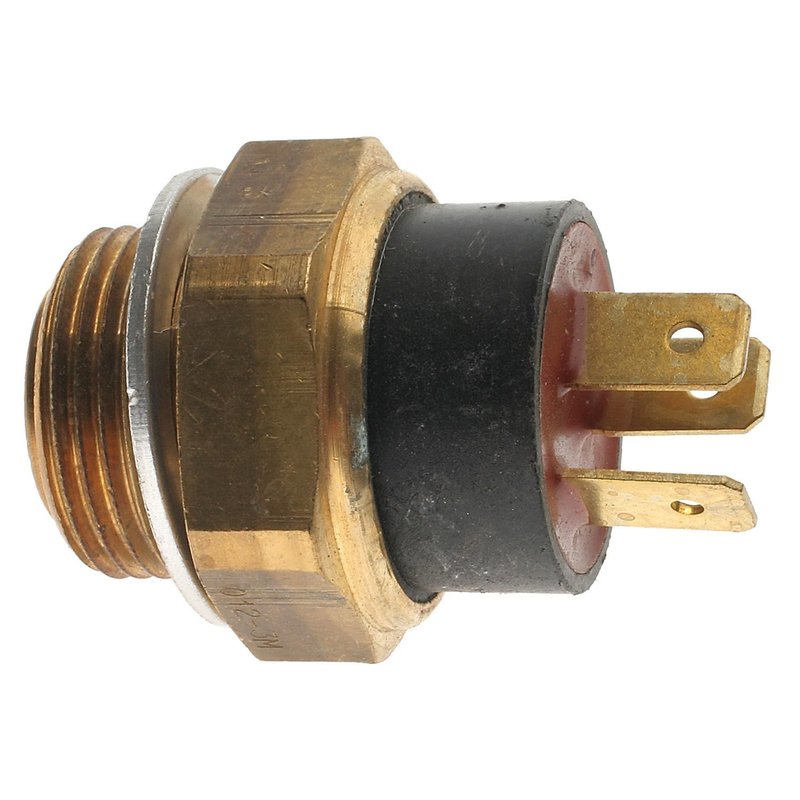

Standard Ignition TS-505 Engine Cooling Fan Switch

Reliable Engine Cooling Fan Switch for Vehicle Temperature Control

The Standard Ignition TS-505 Engine Cooling Fan Switch is designed to maintain optimal engine temperature by controlling the cooling fan operation. This switch features a plug-in attachment method and a durable metal housing, ensuring reliable performance in demanding automotive environments.

• Plug-in attachment method for straightforward installation
• Durable metal housing with brass finish for corrosion resistance
• 12-volt toggle switch with round shape and male blade terminals
• Thread size of 22mm x 1.50 for secure mounting
• Open at idle functionality to regulate fan operation effectively
• Compact dimensions: 0.89 inches (22.606 mm) width
• Single round male connector with three male blade terminals

Product Details and Specifications

The TS-505 Engine Cooling Fan Switch by Standard Ignition is engineered with a metal housing and brass finish to withstand heat and corrosion typically found in engine compartments. Its toggle actuation style and round shape provide consistent switching performance. The switch features a 12-volt rating suitable for most automotive cooling fan circuits. With a thread size of 22mm x 1.50, it mounts securely to the engine block or radiator shroud. The switch is designed to be open at idle, allowing the cooling fan to engage only when necessary, improving engine efficiency and preventing overheating.

Compatible Vehicles and Applications

This engine cooling fan switch is compatible with a range of vehicles requiring a 12-volt toggle switch with a 22mm x 1.50 thread size. It is commonly used in automotive makes and models that utilize a plug-in style engine cooling fan switch with male blade terminals. The Standard Ignition TS-505 is suitable for replacement in vehicles where the original switch has failed or is showing signs of wear.

Common Issues Addressed by the TS-505 Switch

• Engine overheating due to cooling fan not activating
• Intermittent cooling fan operation causing temperature fluctuations
• Faulty or corroded switch terminals leading to poor electrical connection
• Cooling fan running continuously at idle, draining battery power
• Replacement of worn or damaged engine cooling fan switch components

Installation Notes and Tips

Installation of the Standard Ignition TS-505 Engine Cooling Fan Switch requires no wiring harness as it features a plug-in connection with a single male round connector. Ensure the engine is cool before removing the old switch to avoid burns. Use a 22mm wrench or socket to remove and install the switch securely. Verify the switch is properly threaded and tightened to prevent coolant leaks. After installation, test the cooling fan operation at idle and under load to confirm proper function.

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The TS-505 Engine Cooling Fan Switch undergoes rigorous quality control to ensure consistent operation. While no specific warranty details are provided, Standard Ignition typically offers limited warranties on their replacement parts. Consult product documentation or the manufacturer for exact warranty terms.
