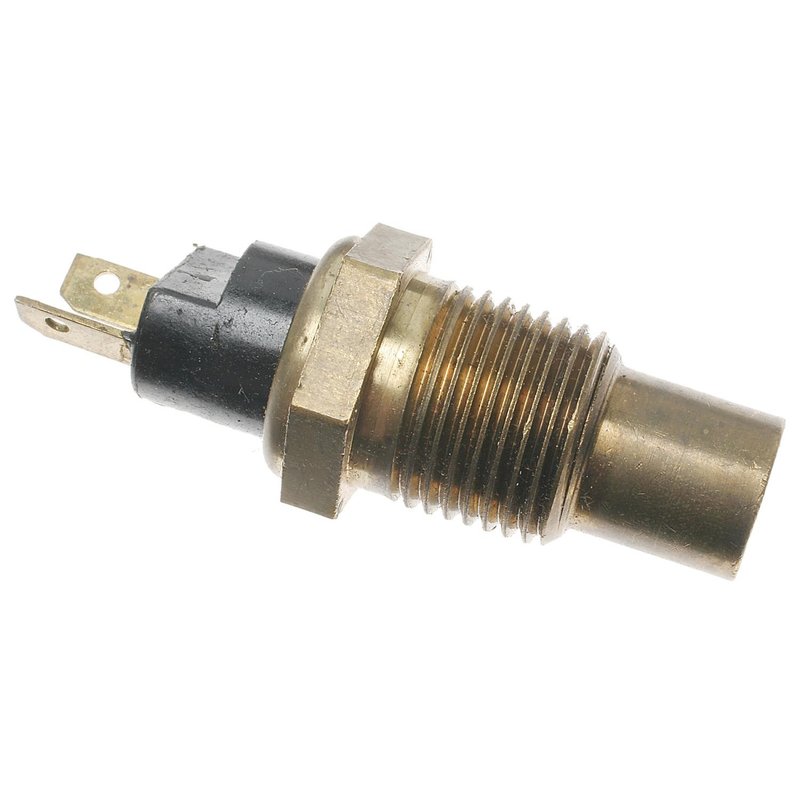

Standard Ignition TS-51 Engine Coolant Temperature Sender

Engine Coolant Temperature Sender for Dashboard Light Applications

Standard Ignition TS-51 is an engine coolant temperature sender built for vehicles that use a coolant temperature indicator light on the dashboard. It uses a screw-on attachment, a single plug-in connector, and a 2-blade terminal layout for direct service replacement on select Cadillac, Chevrolet, Buick, Oldsmobile, Pontiac, and GMC applications.

Built with brass and plastic materials and calibrated for 12-volt systems, this TS-51 sender is designed to deliver a precise electrical signal at the specified temperature set point. It is a practical choice for restoring proper coolant temperature warning-light operation on classic GM vehicles such as the Chevrolet Impala, Pontiac Firebird, and Cadillac DeVille.

Key Features

• Screw-on engine coolant temperature sender design
• Single male plug-in connector with 2 male blade terminals
• 12-volt electrical system application
• Brass and plastic construction with black and gold finish
• Factory-calibrated and tested for switch actuation at the specified temperature
• Uses a formed bimetallic contact arm for precise creep-action performance

Detailed Product Overview

Standard Ignition TS-51 is engineered for vehicles equipped with a coolant temperature indicator light rather than a gauge-style sender. The internal thermal design uses calibrated wax and bimetallic contact movement to trigger electrical contact at the lower-temperature set point required by the application. That helps maintain accurate warning-light operation in older GM platforms, including 1969-1976 Chevrolet, Buick, Pontiac, Oldsmobile, and GMC models, as well as 1980-1981 Cadillac DeVille, Eldorado, and Seville applications. This part cross-references 1T1058 and 53-7717 for the same application.

What This Part Helps Address

• Inoperative coolant temperature warning light
• Incorrect temperature signal to the fan controller
• Intermittent electrical contact at the sender
• Worn or inaccurate original temperature sender
• Service replacement needs on classic GM cooling systems

Installation Notes and Tips

Verify the vehicle uses a coolant temperature indicator light and confirm the connector style, terminal count, and screw-on mounting before installation. Match the sender to the correct year, make, and model application, especially on vehicles with notes such as “with light” or “without high performance engine.” Clean the mounting threads and inspect the connector for corrosion before connecting the harness.

Quality Assurance

Standard Ignition states that each thermal switch is calibrated and tested to confirm actuation at the specified temperature. As an OE ignition product manufacturer, the brand maintains quality control from component selection through finished-product production.
