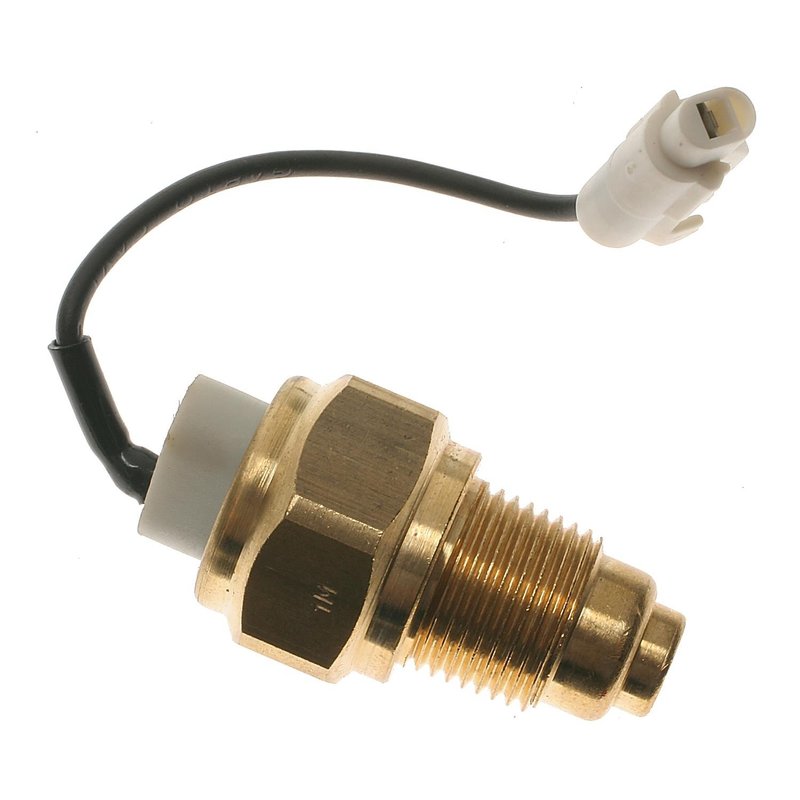

Standard Ignition TS-536 Engine Cooling Fan Switch

Overview of Standard Ignition Engine Cooling Fan Switch TS-536

The Standard Ignition TS-536 Engine Cooling Fan Switch is designed to regulate the operation of your vehicle's cooling fan efficiently. Engineered with a screw-on attachment method and a durable plastic and metal housing, this switch ensures reliable performance in maintaining optimal engine temperature.

• Screw-on attachment method for secure installation
• 12-volt toggle switch actuation style
• Rectangular shape with a white and gold finish
• Includes a 2.75-inch (69.85 mm) wiring harness with one wire
• Male rectangular connector with one terminal (female blade type)
• Thread size of 11/16-18 for compatibility
• Open at idle functionality for precise fan control
• Housing constructed from plastic and metal for durability

Detailed Product Description

The Standard Ignition TS-536 Engine Cooling Fan Switch is a critical component for vehicles requiring precise control of the engine cooling fan. Its toggle switch actuation style allows the fan to engage or disengage based on engine temperature, helping to prevent overheating. The switch features a screw-on attachment method with an 11/16-18 thread size, ensuring a secure fit in the cooling system. The included wiring harness measures 2.75 inches (69.85 mm) and features a single wire with a male rectangular connector and a female blade terminal, facilitating straightforward electrical connections. The switch’s housing combines plastic and metal materials, providing a balance of lightweight design and structural integrity. The white and gold finish offers corrosion resistance and visual identification during installation or maintenance.

Common Applications and Problem Resolution

• Prevents engine overheating by activating the cooling fan at the correct temperature
• Replaces faulty or worn engine cooling fan switches in vehicles such as Ford F-150, Chevrolet Silverado, and Dodge Ram models
• Resolves intermittent fan operation or fan failure issues
• Eliminates electrical connection problems with a reliable male connector and blade terminal
• Improves engine temperature regulation for enhanced vehicle performance

Installation Notes and Tips

• Ensure the engine is cool before removing the old switch to avoid burns or injury
• Use the screw-on method with the 11/16-18 thread size to securely mount the switch
• Verify the wiring harness length (2.75 inches) is sufficient for your vehicle’s setup
• Confirm the connector gender and terminal type match your vehicle’s wiring harness
• Do not overtighten the switch to prevent damage to the housing or threads

Quality Assurance and Warranty

Standard Ignition parts are manufactured to meet or exceed OEM specifications, ensuring dependable performance and durability. The TS-536 Engine Cooling Fan Switch undergoes rigorous quality control testing to maintain consistent functionality. While specific warranty details may vary, Standard Ignition typically offers a limited warranty covering defects in material and workmanship. Consult your vehicle’s service manual or Standard Ignition documentation for exact warranty terms.
